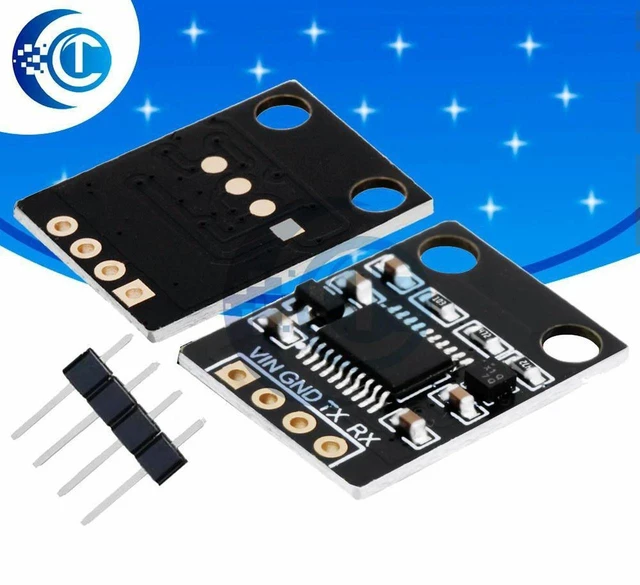

SC7A20H 3-Axis Gravity Accelerometer Tilt Angle Sensor Module UART Serial Inclinometer Board 3V-6V Wide Voltage Horizontal Detection Sensor 9600 Baud Zero Calibration for Attitude Monitoring

Product Description:

The SC7A20H 3-axis acceleration and tilt angle sensor module is designed for measuring inclination and detecting horizontal status in electronic control and attitude monitoring projects. Its onboard MCU calculates tilt angles and outputs processed tilt and horizontal data through a UART serial port, reducing the need for complex angle-calculation programming.

Core Selling Points:

Built-in real-time angle calculation provides direct serial output of processed data. The wide DC 3V-6V input range supports flexible power connections for embedded control systems. UART communication uses a default 9600 baud rate for straightforward data reading. The module supports horizontal detection, inclination measurement, and zero-offset reset through serial commands. Reserved TX, RX, and power pins support project wiring for balance, tilt alarm, and equipment attitude monitoring applications.

Technical Specifications:

Model: SC7A20H

Sensor type: 3-axis gravity accelerometer / tilt angle sensor

Operating voltage: DC 3V-6V

Output interface: UART serial port

Default baud rate: 9600

Functions: Tilt angle measurement, horizontal detection, zero calibration

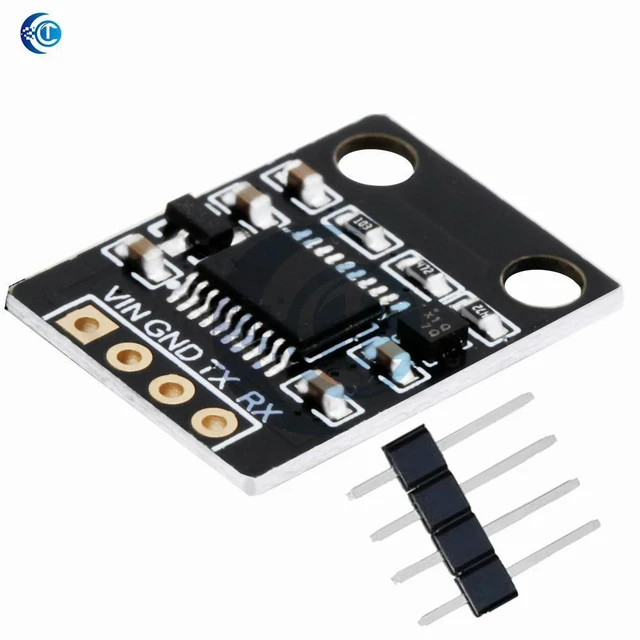

Pins: TX, RX, and power pins

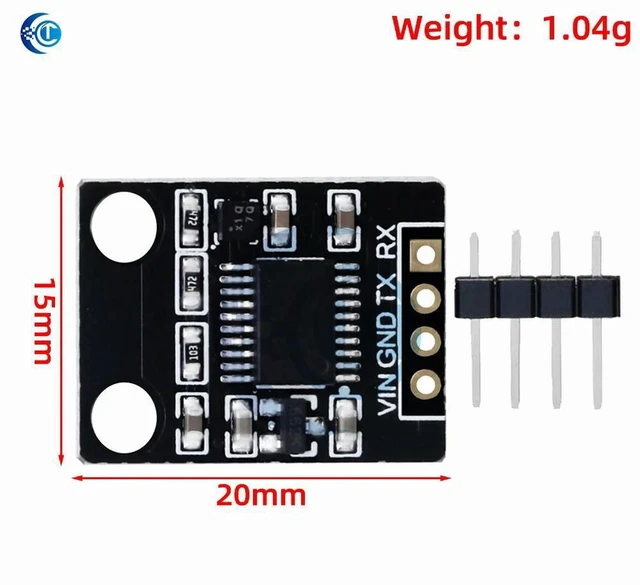

Board type: Compact breakout board

Before Purchase:

Confirm that your application provides a DC 3V-6V power supply and supports UART serial communication. The default communication baud rate is 9600. Check the available TX, RX, and power connections and verify that the project requires tilt angle measurement, horizontal detection, or zero-offset calibration.
