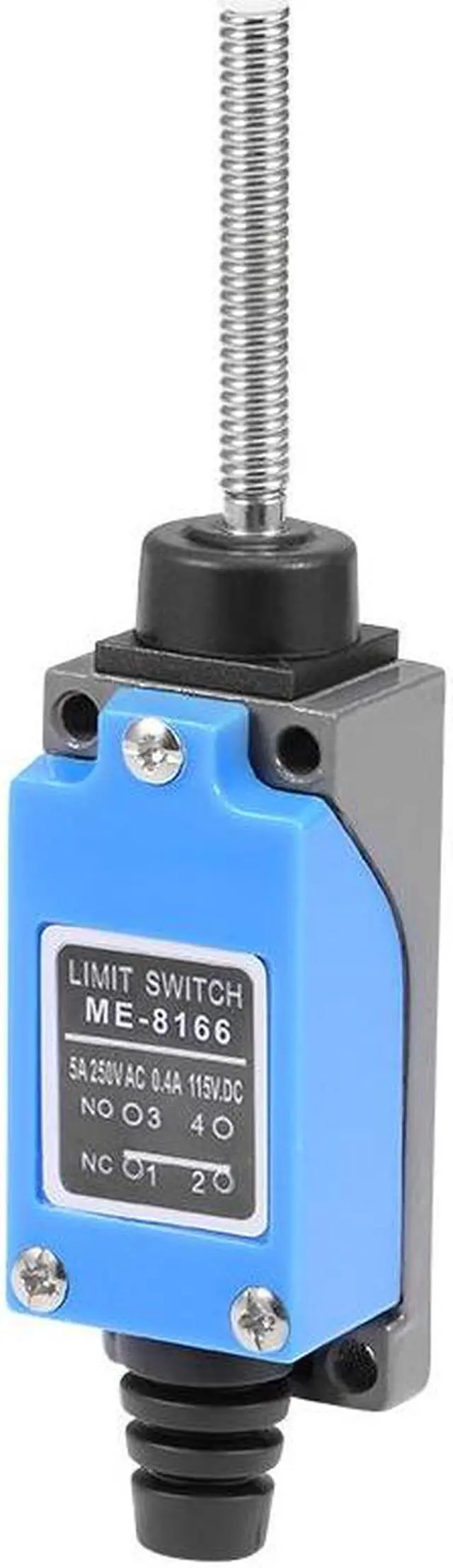

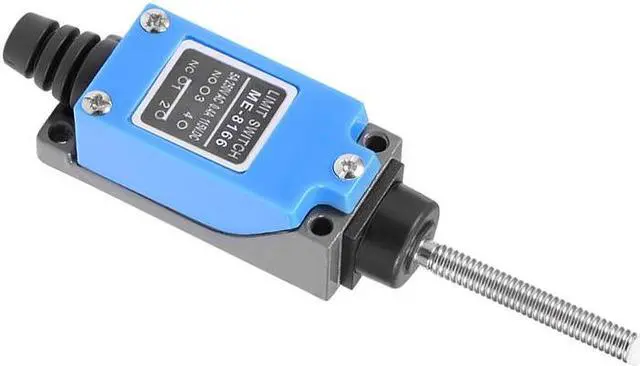

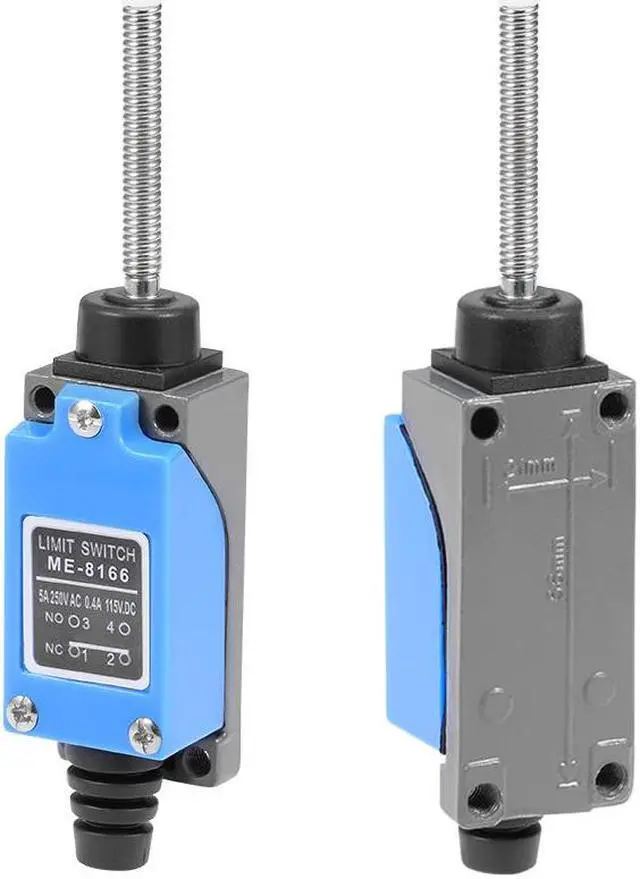

ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO
- Item #: 9SIV0KK9EX0426
- Mfr. Part #: a18091500ux0011
- Model: ME-8166; Flexible Coil Spring Lever;High quality built-in basic switch with good electrical conductivity;Able to withstand some washdowns, shock and vibration;
+
+
Overview
Specs
Reviews
Specification:
Product Name: Limit Switch
Model: ME-8166
Actuator Type: Plastic end Flexible Spring Rod Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5

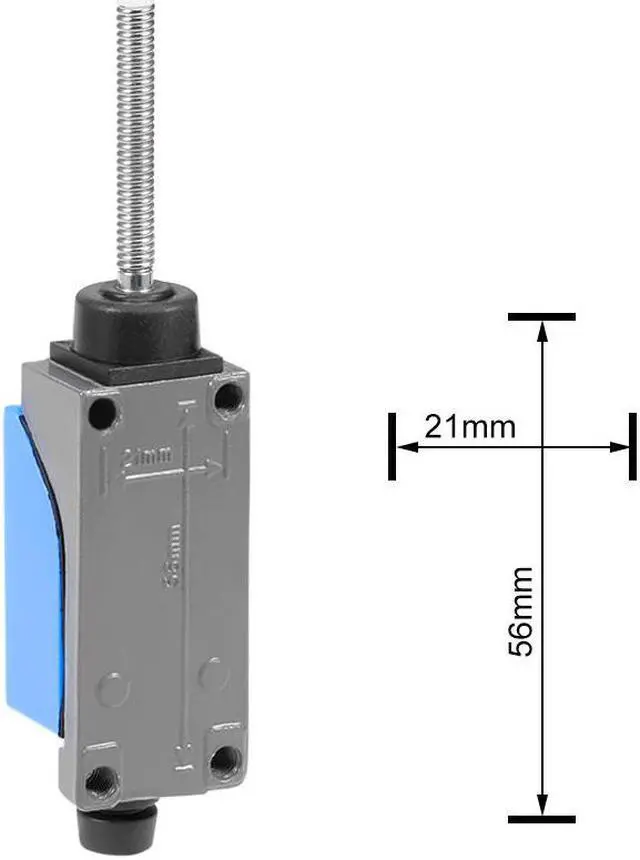

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
The coil spring can be operated in any direction except the axis direction.
The use of the coil spring is ideal for that are not uniform in size or direction.
Operating Characteristics:
OF max.: 1000g (9.8N)
PT max.: 30mm
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Zine alloy and intensive plastic shell, strong and hightly rigid construction.
- Smooth operation with highter OT.

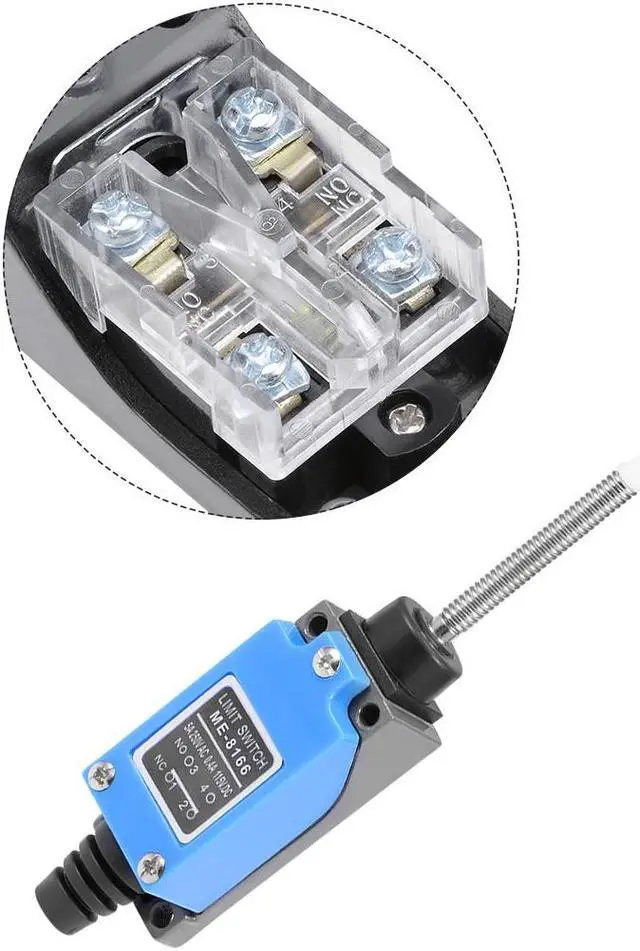

- Brass contacts with 30% silver contained. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
