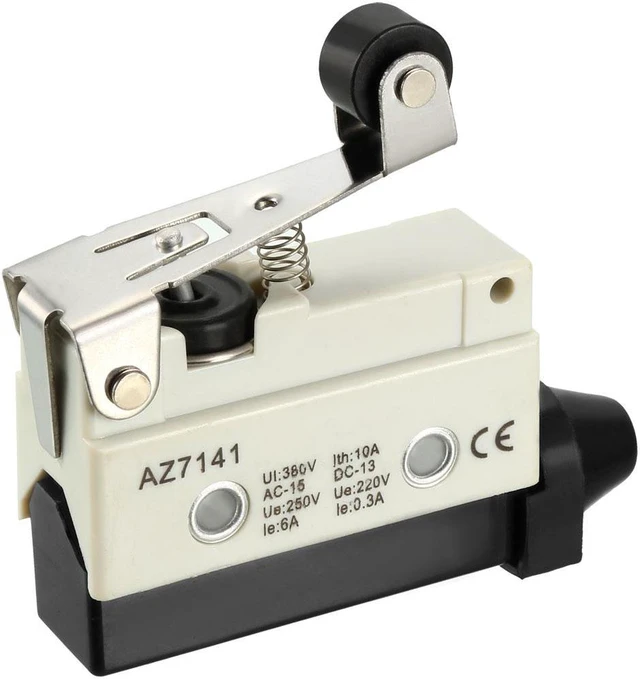

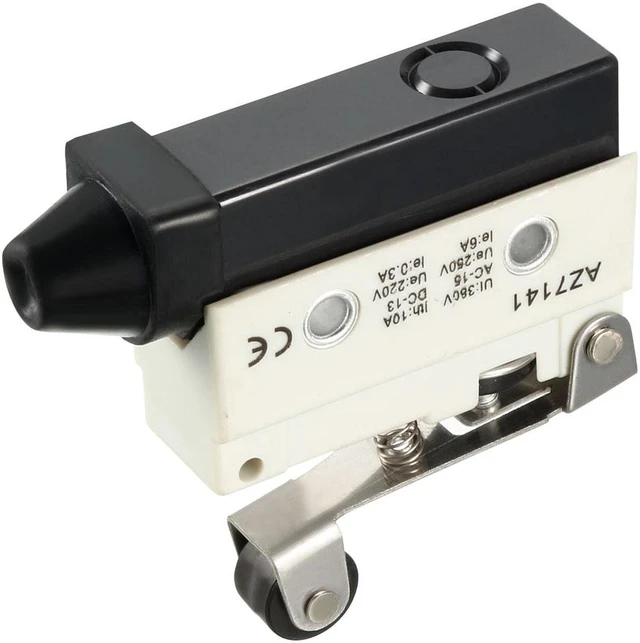

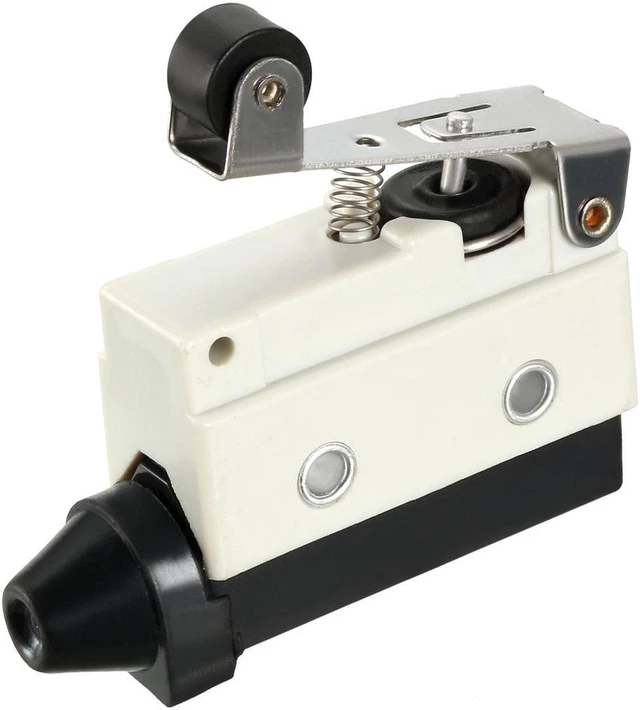

AZ-7141 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Limit Switch
- Item #: 9SIV0KKJY10189
- Mfr. Part #: a18113000ux0374
- Rating: Ui: 380V Ith:10A. And the contact type is SPDT NO+NC.Applicable to AC DC control circuits.Reliable for years.
+
+
Overview
Specs
Reviews
Features:
Excellent accessibility, stable performance, practical and convenient
Multi-place use of gasket design
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
Specification
Product Name: Micro Switch;
Model No.: AZ-7141;
OF max.: 240g
RF min.: 80g
PT max.: 6.5 mm
OT min.: 2.0 mm
MD max.: 1.5 mm
OP: 40+/-1mm
Contact Form: SPDT NO+NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating:
Ui: 380V
Ith: 10A;
AC-15 Ue: 250V
Ie: 6A;
DC-13 Ue: 220V Ie: 0.3A;
Protection degree: IP62

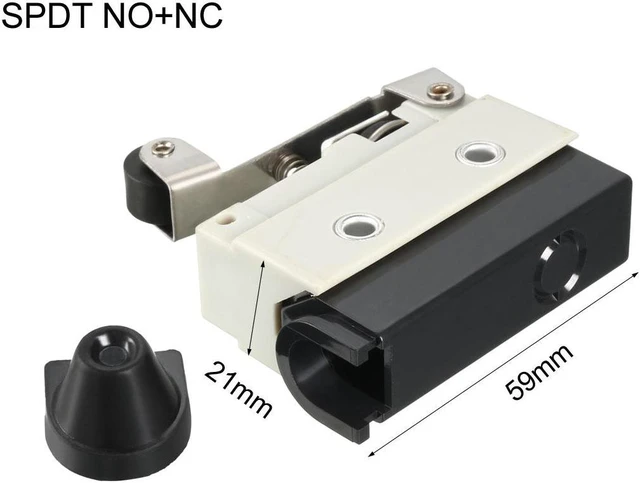

Overall Size: 66x59x21mm/ 2.6 x 2.32 x 0.83 inch (L*W*H)
Fixing Holes Dia.: 4mm/ 0.16 inch;
Net Weight: 50g;
Package Content
1 x Microswitch
Excellent accessibility, stable performance, practical and convenient
Multi-place use of gasket design
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
Specification
Product Name: Micro Switch;
Model No.: AZ-7141;
OF max.: 240g
RF min.: 80g
PT max.: 6.5 mm
OT min.: 2.0 mm
MD max.: 1.5 mm
OP: 40+/-1mm
Contact Form: SPDT NO+NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating:
Ui: 380V
Ith: 10A;
AC-15 Ue: 250V
Ie: 6A;
DC-13 Ue: 220V Ie: 0.3A;
Protection degree: IP62
Overall Size: 66x59x21mm/ 2.6 x 2.32 x 0.83 inch (L*W*H)
Fixing Holes Dia.: 4mm/ 0.16 inch;
Net Weight: 50g;
Package Content
1 x Microswitch
