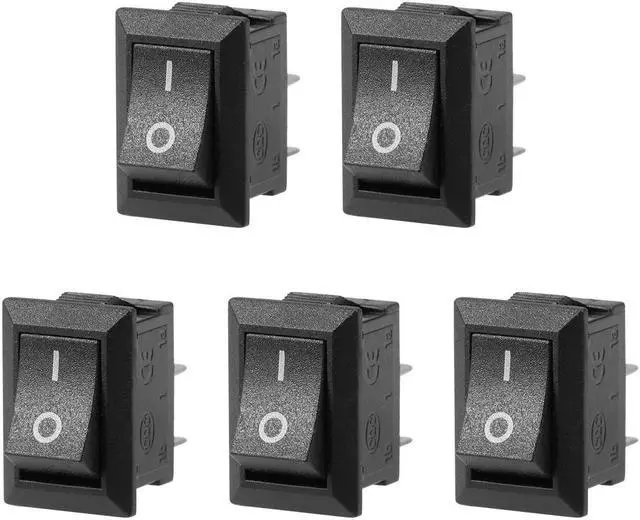

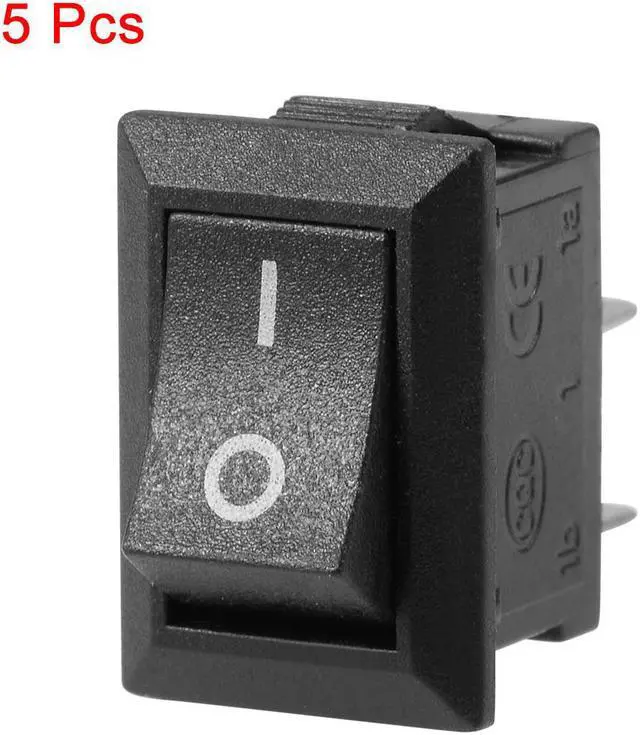

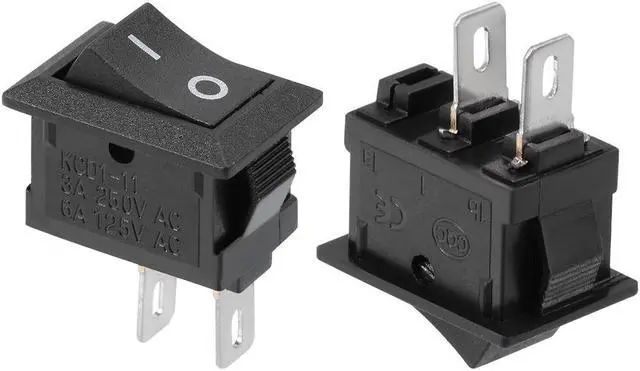

5PCS KCD11 AC 125V/6A 250V/3A SPST 2 Terminal 2 Position On/Off Boat Rocker Switch Black
- Item #: 9SIV0KKB815934
- Mfr. Part #: a18062200ux0508
- Net Weight: 8g; Package Content: 5pcs x Rocker Switch
- Rated Voltage: AC 125V/6A 250V/3A(for resistive load only);
- Terminals: 2 pin; Position: 2
- Type: On/Off (SPST)
+
+
Overview
Specs
Reviews
Features: single pole single throw(SPST) contact type, 2 pin terminals, on off snap in rocker switch.
Widely applied to controlling all kinds of household appliances such as water dispenser, treadmill, coffee pot and so on.
Marked on the rocker: I/O(on off) for precise indications.
Please pay attention to the voltage before ordering to make sure the rocker switch can work successfully in your area.
Specification
Product Name:Rocker Switch
Type: On/Off (SPST)
Terminals: 2 pin
Position: 2
Rated Voltage:AC 125V/6A 250V/3A(for resistive load only)

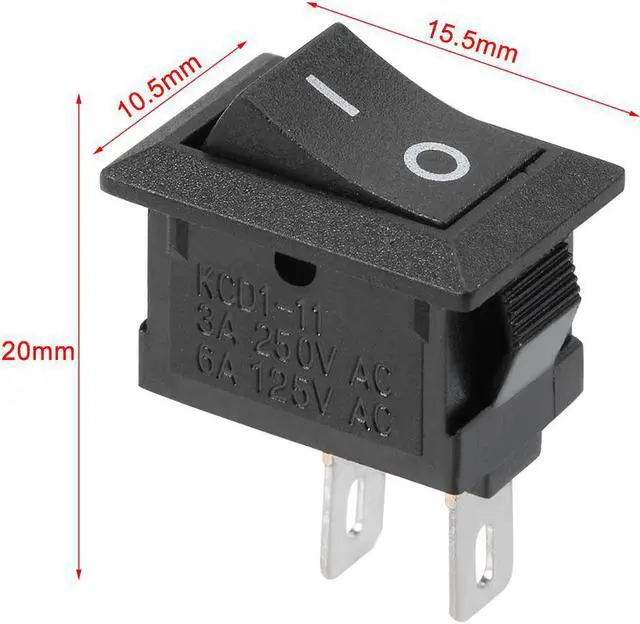

Overall Size: 15.5 x 10.5 x 20mm (L*W*H)
Color:Black
Material:Plastic, Metal
Package Content:
5pcs x Rocker Switch
AC 250V Current rerating for different loads
Inductive Load: 1.05A
Lamp Load: 0.54A
Motor Load: 0.6A
Capactive Load: 0.54A
AC125V Current rerating for different loads
Inductive Load: 2.1A
Lamp Load: 1.08A
M
Widely applied to controlling all kinds of household appliances such as water dispenser, treadmill, coffee pot and so on.
Marked on the rocker: I/O(on off) for precise indications.
Please pay attention to the voltage before ordering to make sure the rocker switch can work successfully in your area.
Specification
Product Name:Rocker Switch
Type: On/Off (SPST)
Terminals: 2 pin
Position: 2
Rated Voltage:AC 125V/6A 250V/3A(for resistive load only)
Overall Size: 15.5 x 10.5 x 20mm (L*W*H)
Color:Black
Material:Plastic, Metal
Package Content:
5pcs x Rocker Switch
AC 250V Current rerating for different loads
Inductive Load: 1.05A
Lamp Load: 0.54A
Motor Load: 0.6A
Capactive Load: 0.54A
AC125V Current rerating for different loads
Inductive Load: 2.1A
Lamp Load: 1.08A
M
