Wire Tracker, RJ11 RJ45 Cable Tester Line Finder Multifunction Wire Tracker Toner Ethernet LAN Network Cable Tester for Network Cable Collation, Telephone Line Tester, Continuity Checking
- Item #: 9SIV36AKE35714
- Mfr. Part #: GU-OOQ12-1
- Professional Wire Tracker. It can help you quickly find the target line in many pairs. It is suitable for tracking RJ45 internet cable, RJ11 telephone line and other metal wire in low electricity. Please note that it can not be used to track wires with high electricity ( maximum currents for emitter and receiver are 10mA and 30mA respectively, and maximum voltage is 10V ). Besides, you may need two 9V laminated cells, which are NOT included in the packaging of this item.
- Network Cables Verifying. Plug one side of the cable into the emitter and the other side into the receiver. Select "Network" to check and verify whether the network cables are good or not. No need of network tester.
- Wire Tracking. It can trace not only Ethernet LAN wires, but also electrical and speaker wires when connecting to the alligator clip. In this situation, the wires must be in power-off status, otherwise the units will be damaged.
+
+
Overview
Specs
Reviews
This instrument is a multi-functional handheld cable testing tool. Work perfect when RJ11 RJ45 cable is on power. It has a wide application with reinforced cable types and multiple functions. It is a necessary testing tool for telecommunication engineering, wiring engineering, and network maintenance person.
Operating temperature: 0-40 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Storage temperature: -10 -50 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: 300m or so
Emitter battery: 6F 22/9V (not included)
Receiver battery: 6F 22/9V (not included)
Use a standard 9V alkaline product battery or 9V charging battery
Product weight: 0.180 kg
Package weight: 0.270 kg
Product size: 20.00 x 4.00 x 3.00 cm / 7.87 x 1.57 x 1.18 inches
Package size: 22.50 x 12.20 x 4.70 cm / 8.86 x 4.8 x 1.85 inches

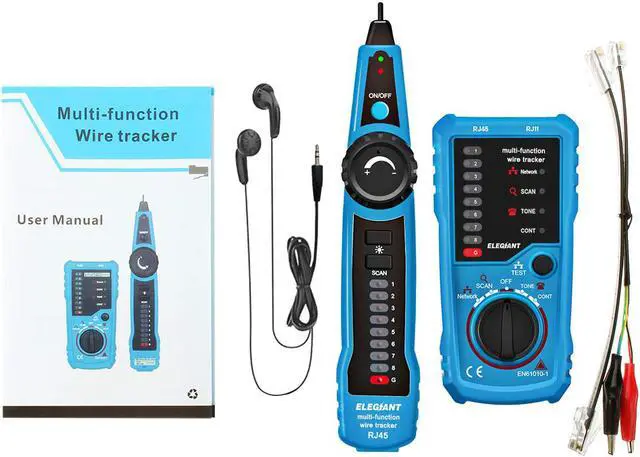

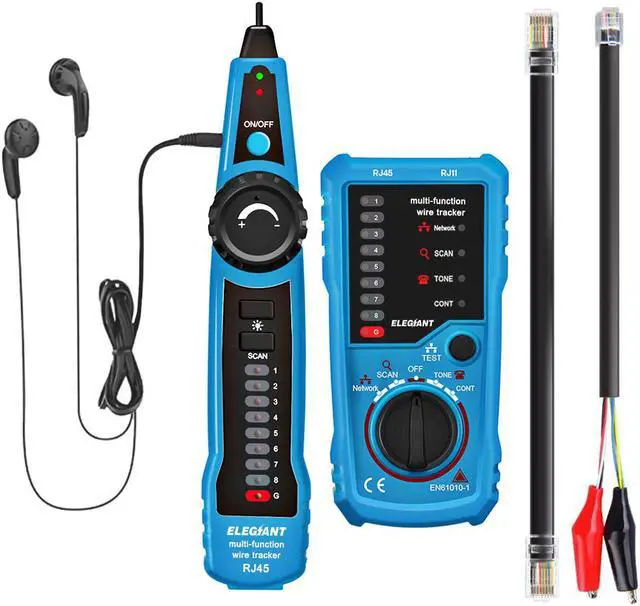

What's In The Box?
1 x FWT11 Emitter
1 x FWT11 Receiver
1 x RJ11 with Clip Adapter Cable
1 x RJ45 Adapter Cable
1 x User Manual
Telecommunication network, line engineering and routine aintenance
Computer network line engineering
Other metal wire wiring works and maintenance work
Scope of Application
Education
Home appliance
Industrial
Market
Office
Supermarket
Do not use on a line with a strong current
Remove the battery when you don't use it for a long time
Never use it during a lightning storm
Operating temperature: 0-40 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Storage temperature: -10 -50 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: 300m or so
Emitter battery: 6F 22/9V (not included)
Receiver battery: 6F 22/9V (not included)
Use a standard 9V alkaline product battery or 9V charging battery
Product weight: 0.180 kg
Package weight: 0.270 kg
Product size: 20.00 x 4.00 x 3.00 cm / 7.87 x 1.57 x 1.18 inches
Package size: 22.50 x 12.20 x 4.70 cm / 8.86 x 4.8 x 1.85 inches
What's In The Box?
1 x FWT11 Emitter
1 x FWT11 Receiver
1 x RJ11 with Clip Adapter Cable
1 x RJ45 Adapter Cable
1 x User Manual
Telecommunication network, line engineering and routine aintenance
Computer network line engineering
Other metal wire wiring works and maintenance work
Scope of Application
Education
Home appliance
Industrial
Market
Office
Supermarket
Do not use on a line with a strong current
Remove the battery when you don't use it for a long time
Never use it during a lightning storm
