J-Tech Digital 4K@60HZ 8x8 HDBaseT Matrix with 7 Receivers (PoC), Supports 4Kx2K@60HZ 4:2:0, HDCP 2.2 IR, SPDIF, RCA, TCP/IP, RS232, EDID with Control 4 Driver Available
- Item #: 9SIV1NM7961342
- Mfr. Part #: JTECH-4K88-EX
- 4K 60HZ ULTRA HIGH DEFINITION : Transmits 4Kx2K @ 60Hz 4:2:0 up to 26 ft. (8m) via HDMI port and 131 ft. (40m) via HDBaseT port. 7 HDBaseT outputs with distances up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4Kx2K on a single Cat5e/6 cable

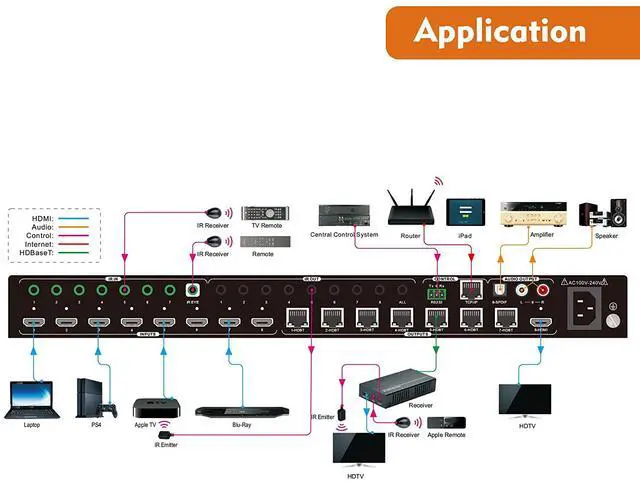

- 8 INPUTS AND 8 OUTPUTS: (Includes 7 HDbaseT receivers and 1 local HDMI output); Distribute any HDMI source to any display, the eight output signals can be different or the same. The video signal is transferred via Cat5/6 Ethernet cable. GREAT HDMI DISTRIBUTION PRODUCT for you high definition Blu-Ray Players, satellite receivers & game consoles.
- FLEXIBLE REMOTE CONTROL FUNCTION: Control the matrix switcher through panel buttons, RS232 serial port, Ethernet, or IR remote. CEC FUNCTION: Support CEC to control far-end display devices via RS232 commands
- POC: No need for power on the receiver side, receivers are powered by the transmitter.Features Micro USB port for firmware upgrades. LED indicators show real-time switching status
+
+
Overview
Specs
Reviews
J-Tech Digital ® is focused on providing high-quality products that integrate and distribute home entertainment for the residential and commercial markets. J-Tech Digital has played a major role in transforming whole-house audio, video and home theater.
Overview:

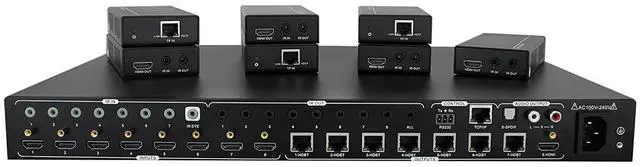

JTECH-4K88-EX is a professional 4K HDBaseT Home Distribution Hub Kit, which consists of a 4K HDBaseT Matrix Switcher, 7 HDBaseT Receivers and accessories.; The Matrix Switcher is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e/6cable.
Specifications:
- Supports HDMI resolutions up to 4K@60Hz 4:2: 0, including 1080p 3D video
- Fully compliant with the HDMI 1.4 and HDCP 2.2KEY _TAB and is backwards compatible

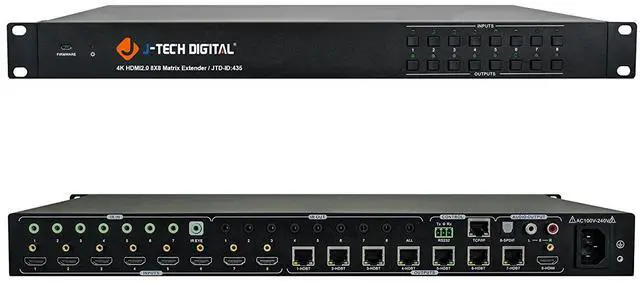

- HDBaseT Matrix Switcher that features 7 HDBaseT outputs and 1 HDMI output
- Includes a local HDMI output with corresponding digital optical S/PDIF and stereo analog outputs
- Can transmit 4K signals to distances up to 131 feet (40 m) and 1080p signals to distances up to 229 feet (70 m) over a single Cat6 Ethernet cable
- Supports manual and automatic EDID management
- HDBaseT Receivers are powered by PoC technology
- Controllable via front panel, RS232, IR and TCP/IP
- Support CEC
- 1U's rack design for easy installation.
Package Includes:
- 1 x 4K HDBaseT Matrix

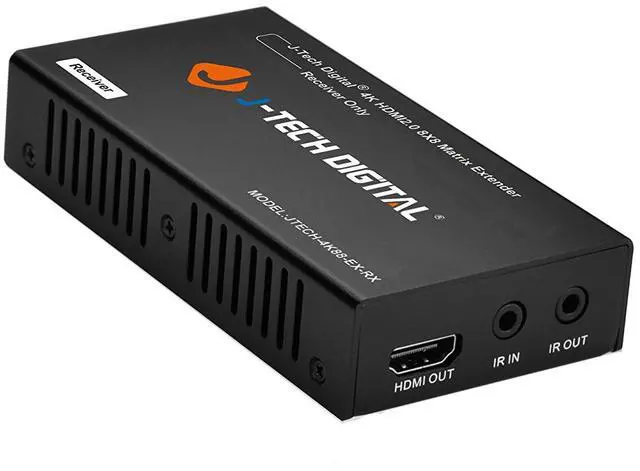

- 7 x HDBaseT Receivers
- 1 x Power Cord
- 1 x IR Receiver
- 1 x IR remote
- 1 x RS232 cable
- 1 x User manual
- Several Mounting accessories
