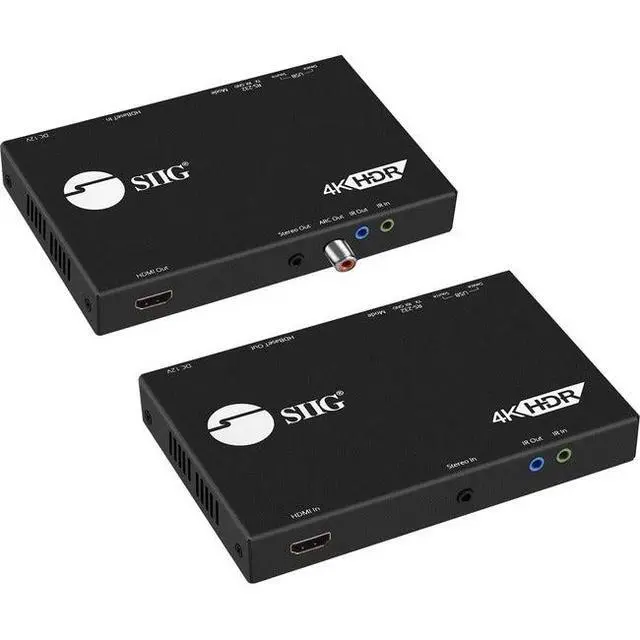

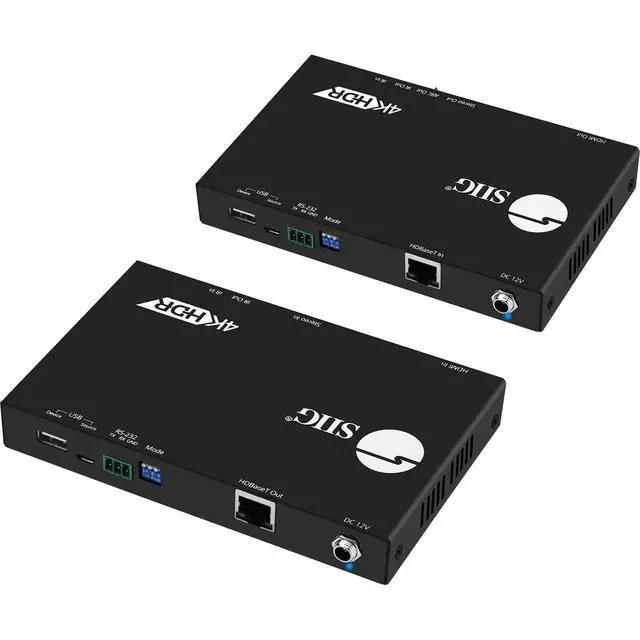

SIIG CE-H23411-S1 4K HDR HDMI 2.0 Extend

Extends HDMI audio and video signals, USB 2.0, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz ( 4:4: 4

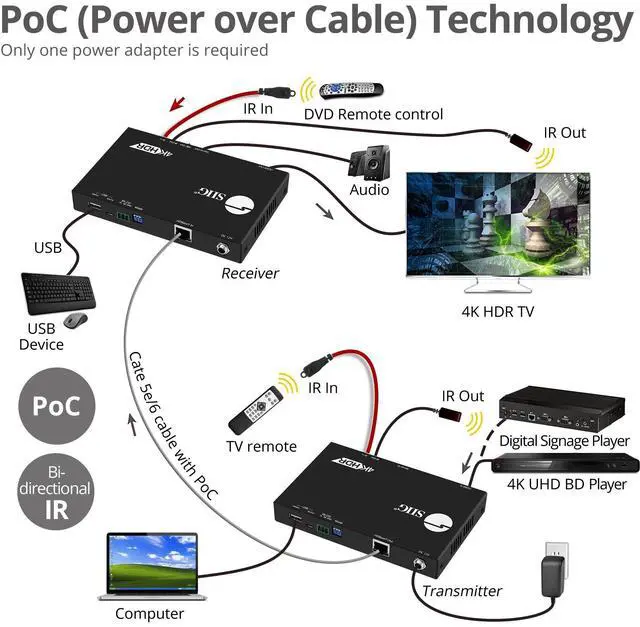

8bit/HDR10 4:2: 0 10bit) through a single premium quality CAT5e/6 cable Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit Pure unaltered uncompressed 7.1 ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support Supports USB 2.0 data transmission between the receiver and transmitter Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements More from the

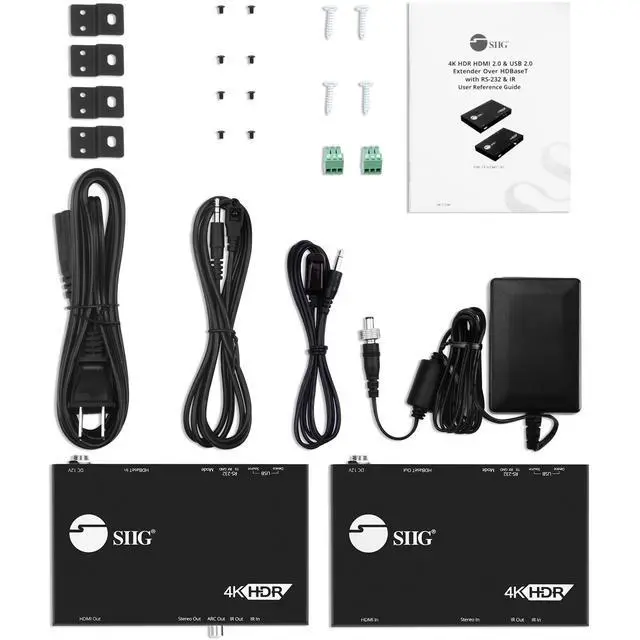

Manufacturer Package Contents: 1 x Transmitter (TX) 1 x Receiver (RX) Power Adapter IR Blaster Extension Cable & IR Receiver Extension Cable 4 x Mounting Ears & Screw kit (8+4) 2 x Terminal Block User Reference
Guide Product Type: Video Extender Transmitter/Receiver
Product Type: Video Extender Transmitter/Receiver
Manufacturer Part Number: CE-H23411-S1
Limited Warranty: 3 Year
Connectivity Technology: Wired
Form Factor: Wall Mountable
Connectivity Technology: Wired
Form Factor: Wall
Mountable Manufacturer: SIIG, Inc
Product Name: 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 &
IR Brand Name: SIIG
Brand Name: SIIG
Country of Origin: Taiwan
Maximum Operating Distance: 328.08 ft Number of
Network (RJ-45) Ports: 2 Number of
USB Ports: 4 Number of
HDMI Inputs: 1
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1
TAA Compliant: Yes
Graphics Modes: 4K
Environmentally Friendly: Yes
Environmental Certification: RoHS Maximum
Video Resolution: 3840 x 2160 Twisted Pair
Cable Standard: Category 6
Maximum Operating Distance: 328.08 ft
USB: Yes Number of
Network (RJ-45) Ports: 2
Network (RJ-45): Yes Number of
USB Ports: 4 Number of
HDMI Inputs: 1 Number of
HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Media Type Supported: Twisted Pair Number of
Output Devices Supported: 1 Number of
Input Devices Supported: 1
Transmitter Height: 0.79
Transmitter Width: 3.74
Transmitter Depth: 5.91 Transmitter
Weight (Approximate): 1.74 lb
TAA Compliant: Yes
