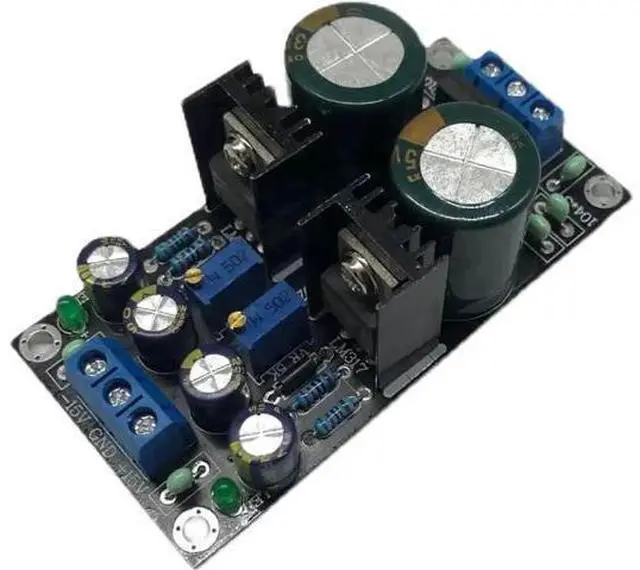

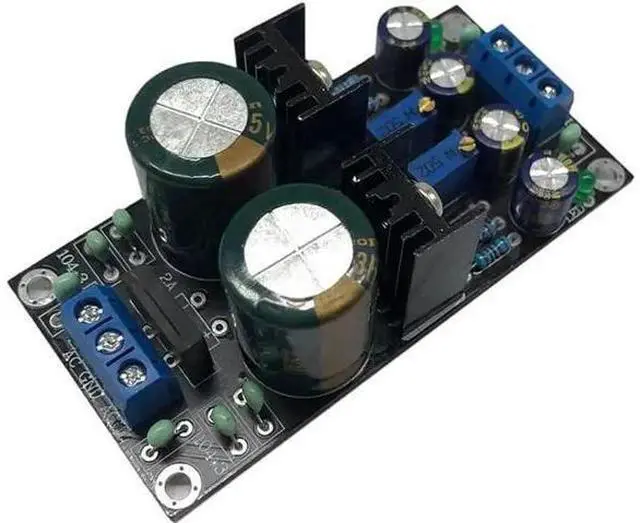

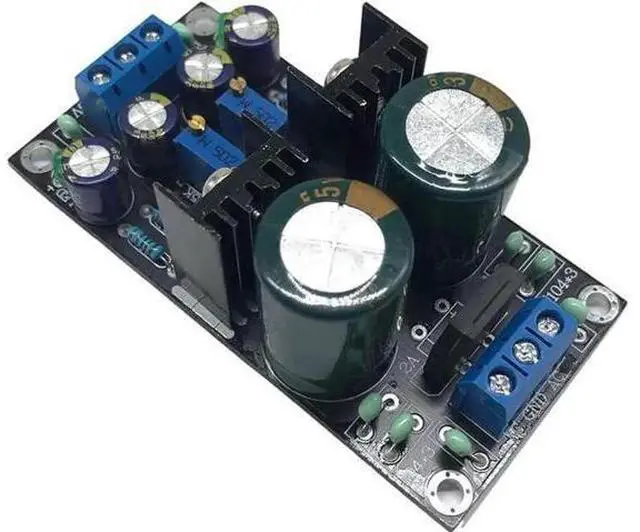

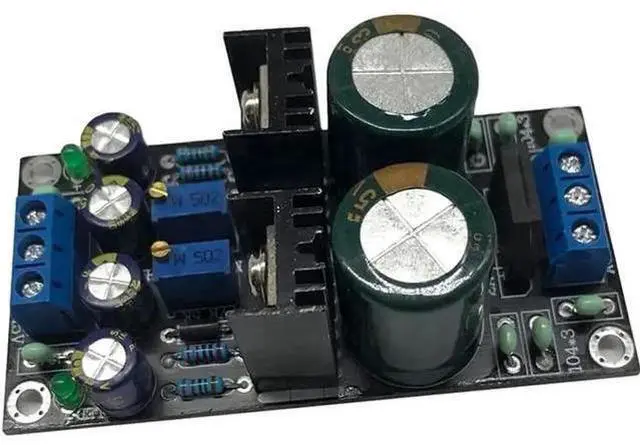

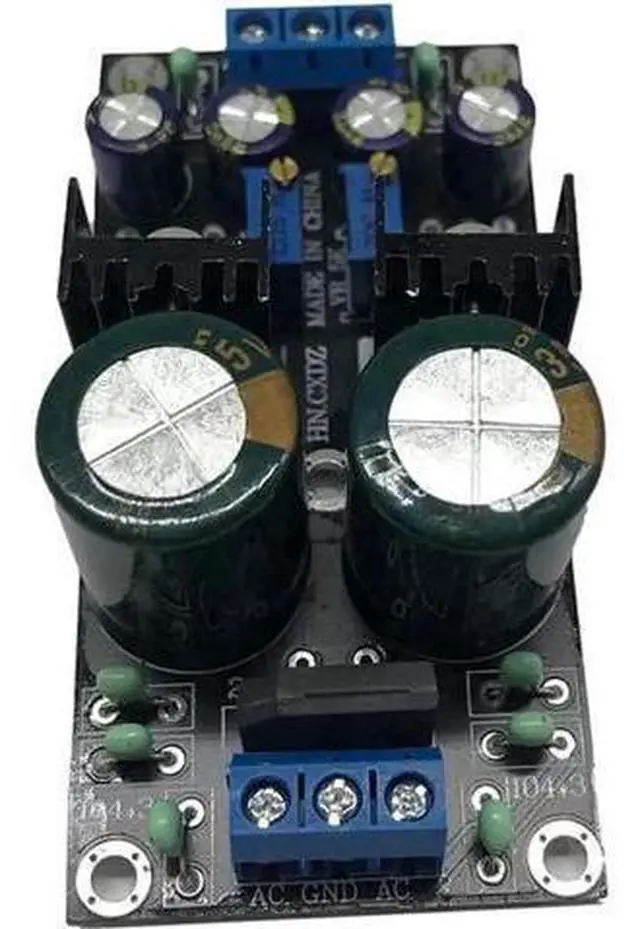

Vszerda LM337 DC Adjustable Regulated Power Supply Board: Positive and Negative Regulated Power Supply Adjustable Module XR-103 (10Pcs)
Limited time offer, ends 08/08 By Warm Cozy Harbor
- Item #: 9SIVTRHM380350
- Mfr. Part #: WLC78S.0730.Pallet0597
- 1.; Voltage input: below double AC28V (three wires); 2.; Voltage output range: ±DC 1.25V to 30V continuously adjustable.; 3. Adjustable output voltage as low as 1.2V. Guaranteed 1.5A output current.; 4. Typical linear adjustment is 0.01 %. Typical load regulation is 0.1 %. 80dB Ripple Rejection Ratio.; 5. Output short circuit protection. Overcurrent and overheating protection.
+
+
Overview
Specs
Reviews
1.
Voltage input: below double AC28V (three wires) 2.
Voltage output range: ±DC 1.25V to 30V continuously adjustable. 3. Adjustable output voltage as low as 1.2V. Guaranteed 1.5A output current. 4. Typical linear adjustment is 0.01 %. Typical load regulation is 0.1 %. 80dB Ripple Rejection Ratio. 5. Output short circuit protection. Overcurrent and overheating protection.
Voltage input: below double AC28V (three wires) 2.
Voltage output range: ±DC 1.25V to 30V continuously adjustable. 3. Adjustable output voltage as low as 1.2V. Guaranteed 1.5A output current. 4. Typical linear adjustment is 0.01 %. Typical load regulation is 0.1 %. 80dB Ripple Rejection Ratio. 5. Output short circuit protection. Overcurrent and overheating protection.
