24/20-pin ATX DC Power Supply Breakout Board Module.
- Item #: 9SIV36AKE34184
- Mfr. Part #: LKT-OSAW4956
- UNSPSC: 39121004
- 24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
- Stand-By and Power-ON indicator LEDs.
- With latching button switch to control power ON/OFF.
- High quality 24Amp(per position) screw terminal blocks.
+
+
Overview
Specs
Reviews

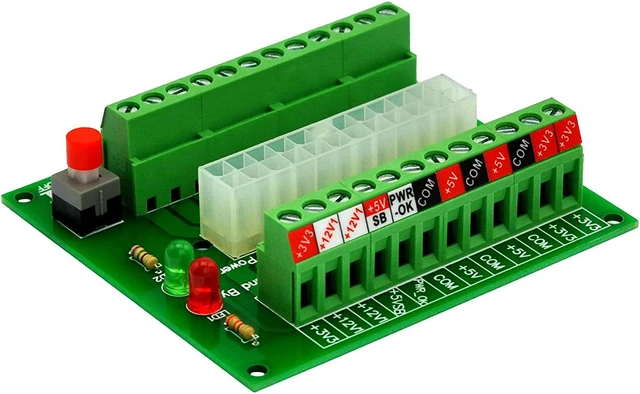

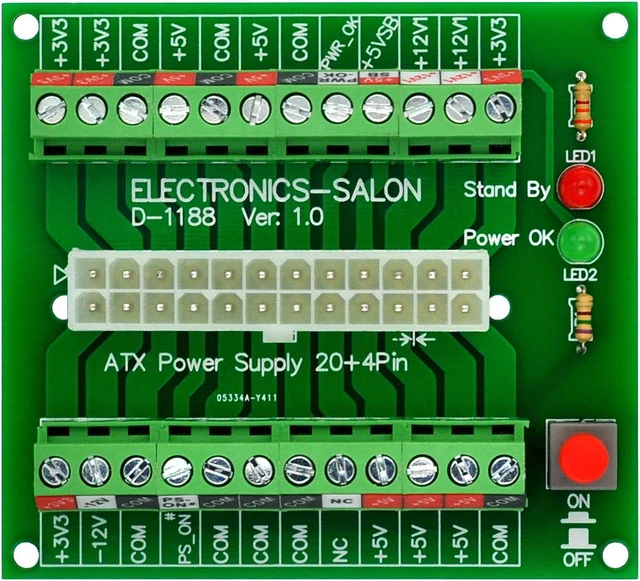

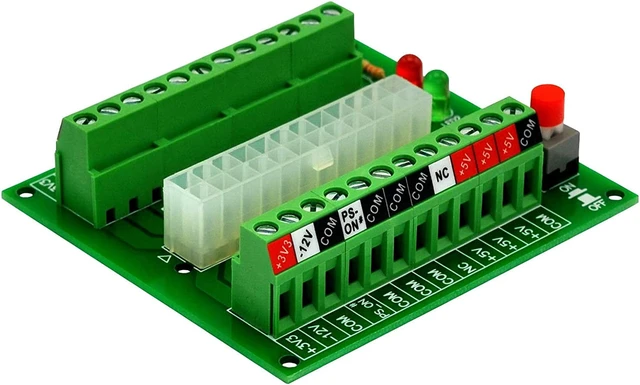

Electronics-Salon 24/20-pins ATX DC Power Supply Breakout Board.
24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Stand-By and Power-ON indicator LEDs.
With latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.
Terminal Block:
Pitch 5.0mm/0.197"
Wire range 26AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Stand-By and Power-ON indicator LEDs.
With latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.
Terminal Block:
Pitch 5.0mm/0.197"
Wire range 26AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
