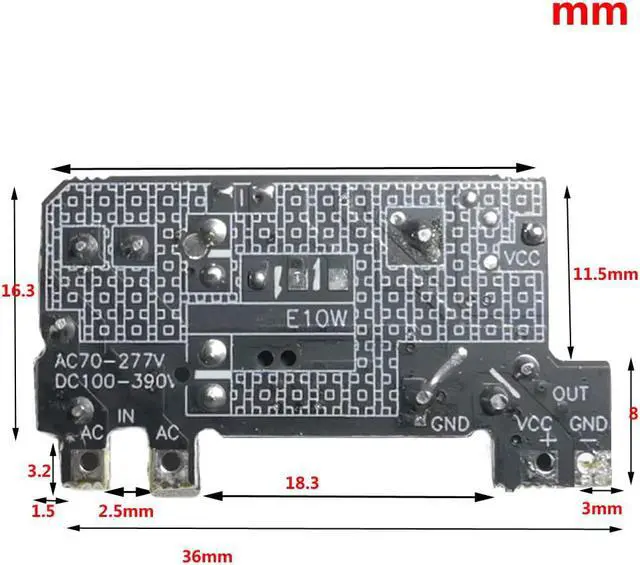

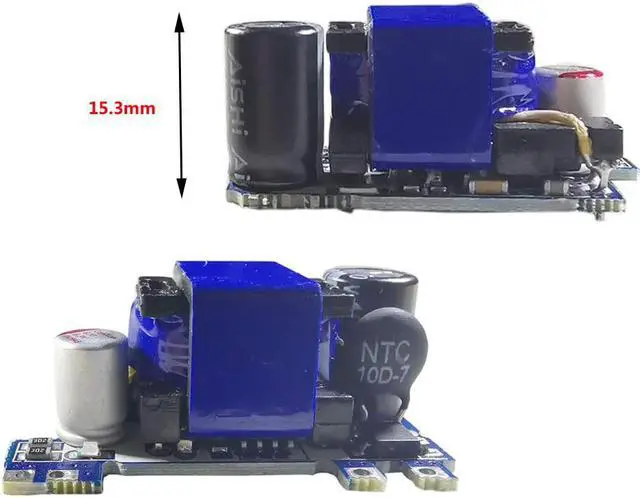

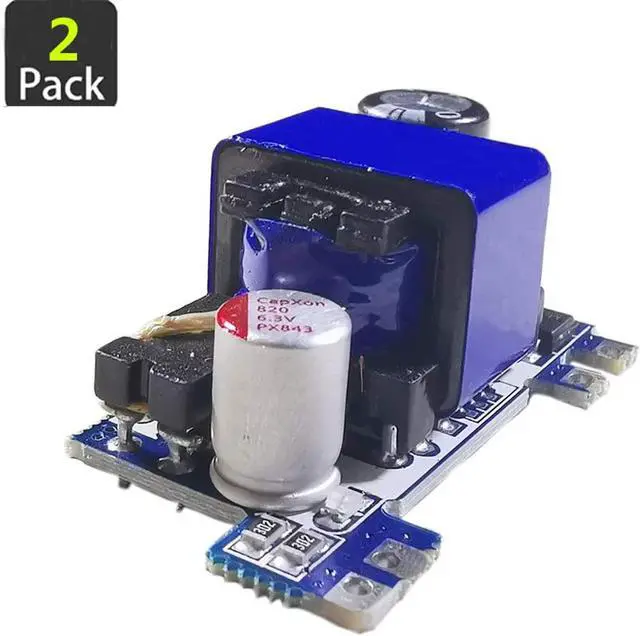

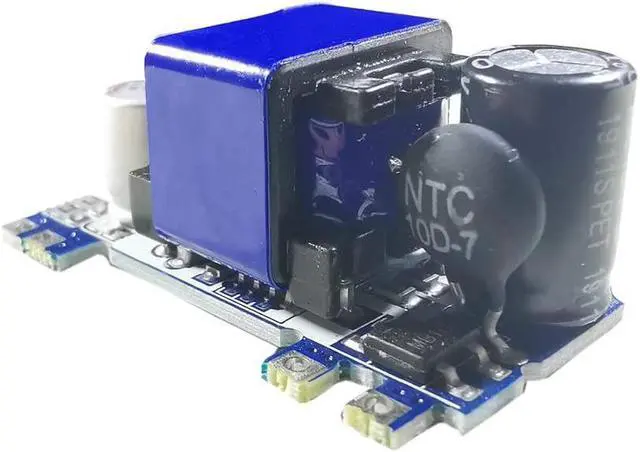

2Pcs AC DC Converter Module Universal 110V 120V 220V 230V to DC 5V 12V Isolated Switching Power Supply Board (DC 5V 2A Version)
- Item #: 9SIV36AKE32487
- Mfr. Part #: ID-WOPAJ396
- UNSPSC: 39121004
- Small volume, Low ripple, Low internal resistance
- Range Input voltage: AC 70-277V or DC 100-390V,with output LED indicator
- With Over voltage ,Over current ,Short circuit ,Over temperature(190 Fahrenheit degrees) protection
- Environment 25 ° C under 80% load MTBF more than 100,000 hours
- Safer,Use high-quality components
+
+
Overview
Specs
Reviews
input:AC 85-265V or DC 100V-370V
Frequency Range: 47-63Hz
No-load consumption:5V<30mW, 12V<70mW
Rated power:3W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:836ms,7.4ms/90VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 85-265V or DC 100V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 75mW
Rated power:5W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:836ms,7.4ms/90VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 85-265V or DC 110V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 80mW
Rated power:10W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:2000ms,30ms/115VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 100-265V or DC 140V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 0.3W
Rated power:25W
Rippe and roise: 1% of the output voltage
Startup and Rise Time:16ms
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:3000VAC
Frequency Range: 47-63Hz
No-load consumption:5V<30mW, 12V<70mW
Rated power:3W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:836ms,7.4ms/90VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 85-265V or DC 100V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 75mW
Rated power:5W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:836ms,7.4ms/90VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 85-265V or DC 110V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 80mW
Rated power:10W
Rippe and roise: 2% of the output voltage
Startup and Rise Time:2000ms,30ms/115VAC
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:1000VAC
input:AC 100-265V or DC 140V-370V
Frequency Range: 47-63Hz
No-load consumption:less than 0.3W
Rated power:25W
Rippe and roise: 1% of the output voltage
Startup and Rise Time:16ms
Operating temperature: -13°F to 158 °F
Protection: short circuit,over temperature,overload,over current protection
Operating humidity:20%-90%
Insulation voltage:3000VAC
