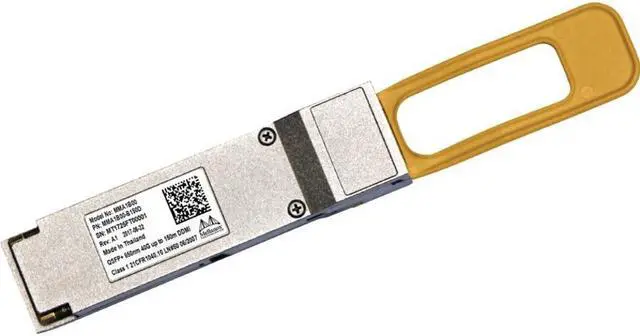

Mellanox 40GbE QSFP+ SR4 Optical Transceiver - For Data Networking, Optical Network - 1 x MPO 40GBase-SR4 Network - Optical Fiber - Multi-mode - 40 Gigabit Ethernet - 40GBase-SR4 - Hot-pluggable

Mellanox MMA1B00-B150D is a 4-channel, pluggable, QSFP+, VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver designed for up to 150m reach in 40Gb/s Ethernet networks operating at 4x 10.3125G b/s. This transceiver incorporates Mellanox integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant. The MMA1B00-B150D transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector.

The transceiver can operate 10.3125G b/s without retiming. The transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
