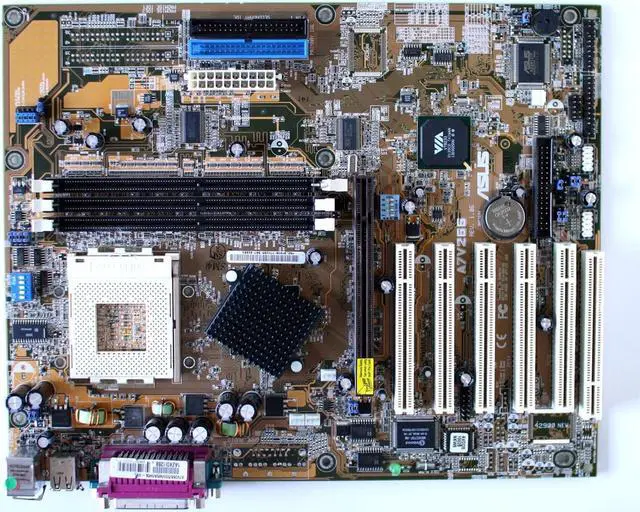

MB, A7V266 REV.1.06

Processor: Supports Socket-A AMD Athlon/Duron processors Chipset : VIA VT8366 north bridge with VIA VT8233 south bridge
Support AGP 4X
Support UltraDMA 33/66/100 IDESystem memory : 2 x DDR DIMM socket support 2GB 2.5V DDR DRAM or
2x SDRAM DIMM socket support 2GB 3.3V SDR
DRAM Slot : 1 x AGP Pro slot, 4 x PCI slot, 1xPCI slot /1 ACR slotOnboard I/O : 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port
1 x Floppy Port (Up to 2.88MB, 3 Mode)
6 x USB Ports (Support Hot-Plug Function)
2 x Serial Ports
1 x Parallel Port ( ECP, EPP Port)
IrDA TX/RX (SIR)Onboard IDE : Dual channel Bus Master IDE ports supported from South
Bridge
Support UltraDMA/33/66/100, PIO Mode 3/4
ATAPI IDE CD-ROM, CD-R, CD-RW and LS-120
SupportedOnboard Audio : CMI8738 PCI audio chip, Include line-in,line-out (support
6-channel), microphone-in, Mic-in2, CD-in,AUX-in,MODEM in/out,and HRTF-base
3D positional audio.
SPDIF IN/OUT (Option)PC Health Monitoring : PC Health Monitoring ASIC Supports the following:
FAN sensor x3 : POWER FAN, CPU
FAN, CHASIS FAN
Voltage sensor :+5VSB,
VCORE,+3V, +5V, +12V
Thermal sensor x3: Environment
x1, CPUx1 ,other reserve
ASUS PC Probe Utility BundledFront and Back Panel : Front Panel: use 20-pin panel : power button,
reset button, SMI lead, keylock, speaker power LED, message LED, IDE LED
Back panel: PS/2 KB & mouse:
support KB wake-up
USB x2, Serial x2, Parallel x1 ,
Audio x3, Game port ON-Board Connector : 3V, 5V, and 12V 20-pin ATX Power Connector
USB connector x4 (SUPPORT USB
Channel 2,3,4,5)
CHASSIS: chassis intrude
FAN: CPU, POWER,CHASSIS FAN
4-pin DIP Switch: easy to
select CPU bus frequencyBIOS : 2Mb Flash EEPROM (LPC interface)
Award BIOS with Enhanced ACPI, DMI, Green, PnP Features Plus
Trend Chip Away Virus (TCAV )Special Features : Wakeup on Keyboard, PS/2 Mouse, RTC Timer
Restart/Off Setup of AC Recovery from
Power Failure
DDR/SDR auto-detection supportBoard Size : ATX Form Factor: 12” x 9.6”
