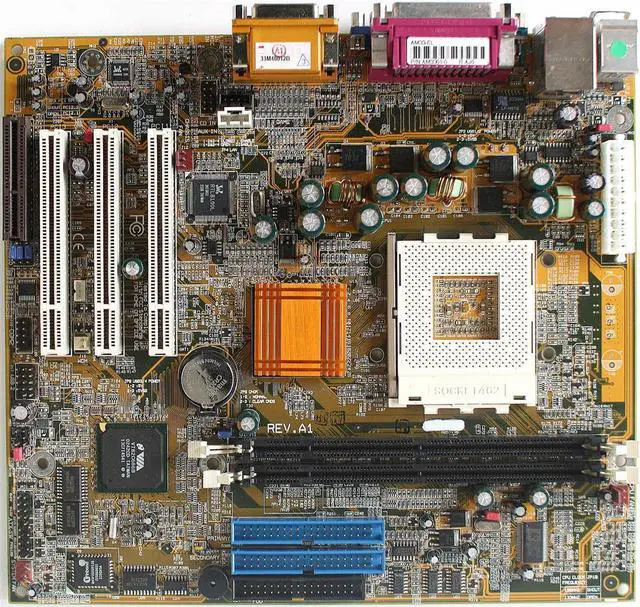

MB, Audio/Video, rev a1, (66-m4), w/lan

Part Number:AM33-EL

General

Packaged Quantity 1.0
Product Type Motherboard - Micro ATX
Cache Memory None
Chipset Type VIA Apollo KLE133
Max Bus Speed 266.0 MHz
Processor Socket Socket A
Max Processors Qty 1.0
Compatible Processors Duron,
Athlon

Supported RAM

Max Size 1.0 GB
Technology VCM SDRAM,
SDRAM
Bus Clock 133 MHz
Registered or Buffered Unbuffered,
Registered

Graphics

Graphics Controller Trident Blade 3D
Memory Allocation Technology Shared video memory (UMA)

Audio

Type Stereo
Compliant Standards AC '97

LAN

Network Interfaces Ethernet
Modem None

Expansion / Connectivity

Expansion Slot(s) 2.0 x CPU Memory - Full-length,
1.0 x PCI - DIMM 168-pin,
1.0 x Shared PCI / CNR - Full-length,
2.0 x
Storage Interfaces ATA-100 - connector(s): 2 x 40pin IDC
Interfaces 1.0 x Gameport / MIDI Parallel - Generic - 15 pin D-Sub (DB-15) - Mini-jack,
1.0 x Audio line-in - Mini-jack,
1.0 x PS/2 mouse - Mini-jack,
1.0 x Serial,
1.0 x Audio line-out,
1.0 x LAN,
1.0 x USB,
2.0 x Microphone,
1.0 x PS/2 keyboard,
1.0 x
Internal Interfaces 1.0 x Floppy
Compatible Slots None

Features

BIOS Type Award
BIOS Features ACPI support
Hardware Monitoring CPU fan tachometer,
CPU core voltage,
Chassis temperature,
CPU core temperature
Sleep / Wake Up RTC (real-time clock) wake up,
Wake on LAN (WOL),
Wake on modem (WOM)

Miscellaneous

Software Included Drivers & utilities
Compliant Standards Plug and Play
Width 9.6 in
Depth 8.7 in
