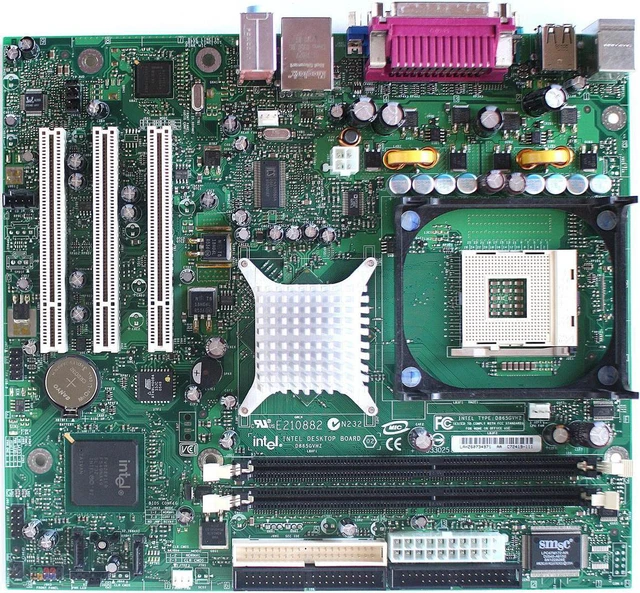

MB D865GVHZ, C72419-111, MPGA478B, SHIELD

Manufacturer: Intel
Part Number:D865GVHZ

General

Packaged Quantity 1
Product Type Motherboard - Micro ATX
Cache Memory None
Chipset Type Intel 865GV
Max Bus Speed 800 MHz
Processor Socket Socket 478
Max Processors Qty 1
Compatible Processors Celeron,
Pentium 4

Supported RAM

Max Size 2 GB
Technology DDR SDRAM
Bus Clock 333 MHz,
266 MHz,
300 MHz
Speed PC2400,
PC2700,
PC2100

Graphics

Graphics Controller Intel Extreme Graphics 2
Memory Allocation Technology Dynamic Video Memory Technology 2.0

Audio

Type Stereo
Audio Codec Realtek ALC202A
Compliant Standards AC '97

LAN

Modem None

Expansion / Connectivity

Expansion Slot(s) 1 x CPU,
2 x DIMM 184-pin,
3 x PCI
Storage Interfaces Serial ATA-150 - connector(s): 2 x 7pin Serial ATA,
ATA-100 - connector(s): 2 x 40pin IDC
Interfaces 4 x USB 2.0,
1 x Serial,
1 x Parallel,
1 x VGA,
1 x PS/2 keyboard,
1 x PS/2 mouse,
1 x Audio line-in - Mini-jack,
1 x Audio line-out - Mini-jack,
1 x Microphone - Mini-jack
Internal Interfaces 1 x Floppy
Additional Connectors (Optional) 4 x Hi-Speed USB

Features

BIOS Type AMI
BIOS Features Multilingual BIOS,
Hyper-Threading Technology,
Rapid BIOS boot,
DMI 2.0 support,
WfM 2.0 support,
ACPI 1.0b support
Hardware Monitoring CPU core voltage,
CPU core temperature,
Chassis fan tachometer,
System voltage

Miscellaneous

Compliant Standards ICES-003 Class B,
FCC Class B certified,
AS/NZ 3548 Class B,
EN55024,
UL 60950 Third Edition,
CB,
EN55022 Class B,
CSA 22.2 No. 60950,
EN 60950,
CISPR 22 Class B,
EMC
Width 9.7 in
Depth 8.6 in
