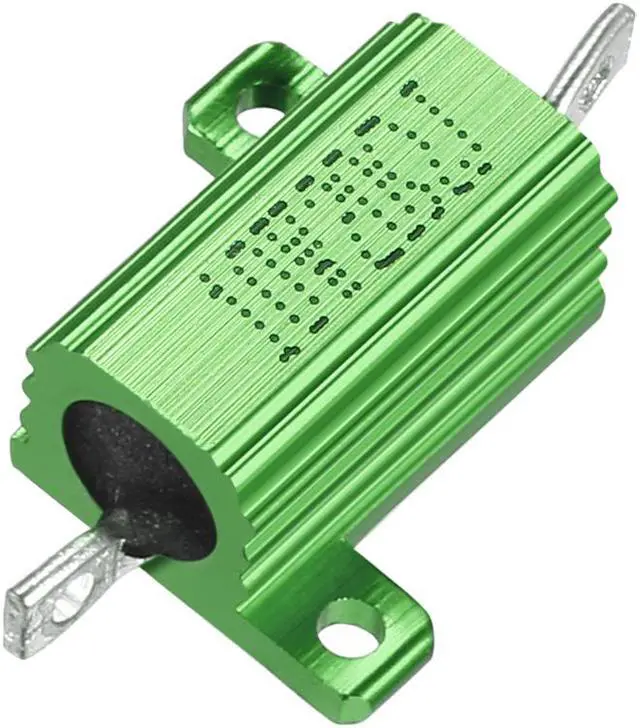

Unique Bargains Aluminum Case Resistor 10W 20 Ohm Green Wirewound for LED with Rod Post 10W20RJ
- Item #: 9SIV0KK89R3872
- Mfr. Part #: a18032800ux0032
- Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminu
+
+
Overview
Specs
Reviews
Main Body Length: 1.9 cm/ 0.75 inches
Power: 10 Wattage
Rated Resistance: 20 R
Tolerances: 5%(J)

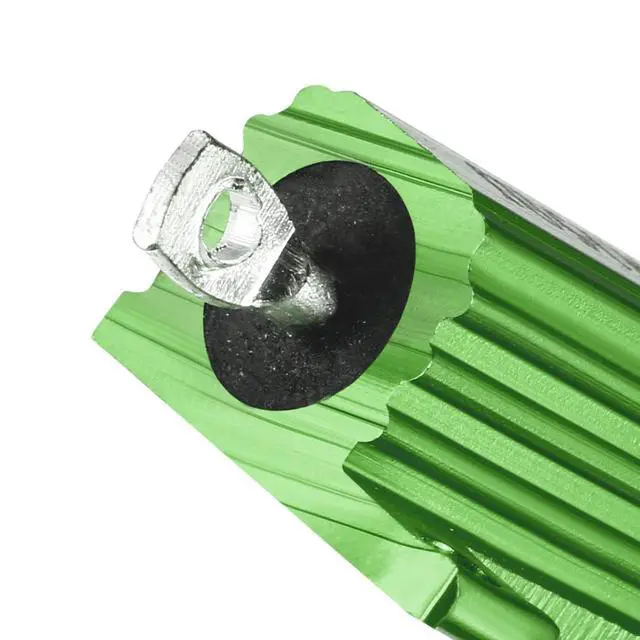

Connection Type: Rod terminals with hole
Rod Length: 7.7mm/0.3 inches

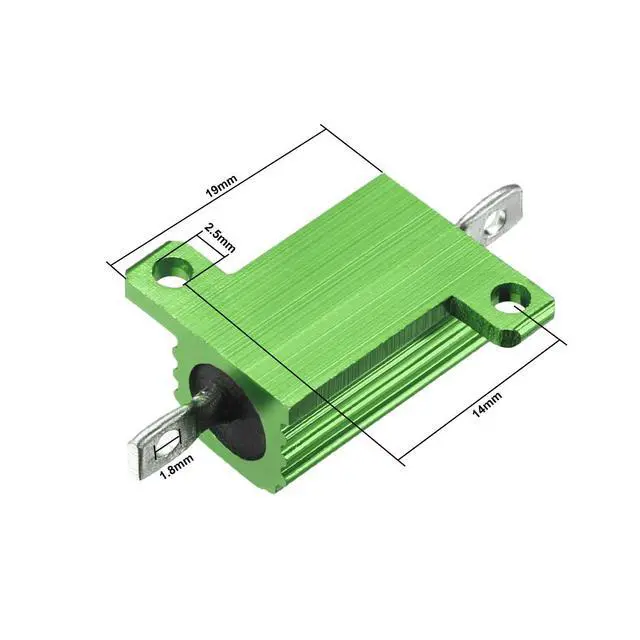

Screw Hole: 2.5mm(Fit #2 or M2.3 nuts)
Distance between screw hole: 14mm
Weight: 6g/0.15 Oz
Materials: Nickel alloys Wire Wound Resistor with Aluminum Case
Color: Green
Package Content:
1 x 10W20R Aluminum Housed Resistor
Power: 10 Wattage
Rated Resistance: 20 R
Tolerances: 5%(J)
Connection Type: Rod terminals with hole
Rod Length: 7.7mm/0.3 inches
Screw Hole: 2.5mm(Fit #2 or M2.3 nuts)
Distance between screw hole: 14mm
Weight: 6g/0.15 Oz
Materials: Nickel alloys Wire Wound Resistor with Aluminum Case
Color: Green
Package Content:
1 x 10W20R Aluminum Housed Resistor
