4.7K Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pot

Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller.Resistance Value: 4.7K Ohm Tolerance:+/-5%.

Overview

Specs

Reviews

Product Name: Potentiometer w Knob

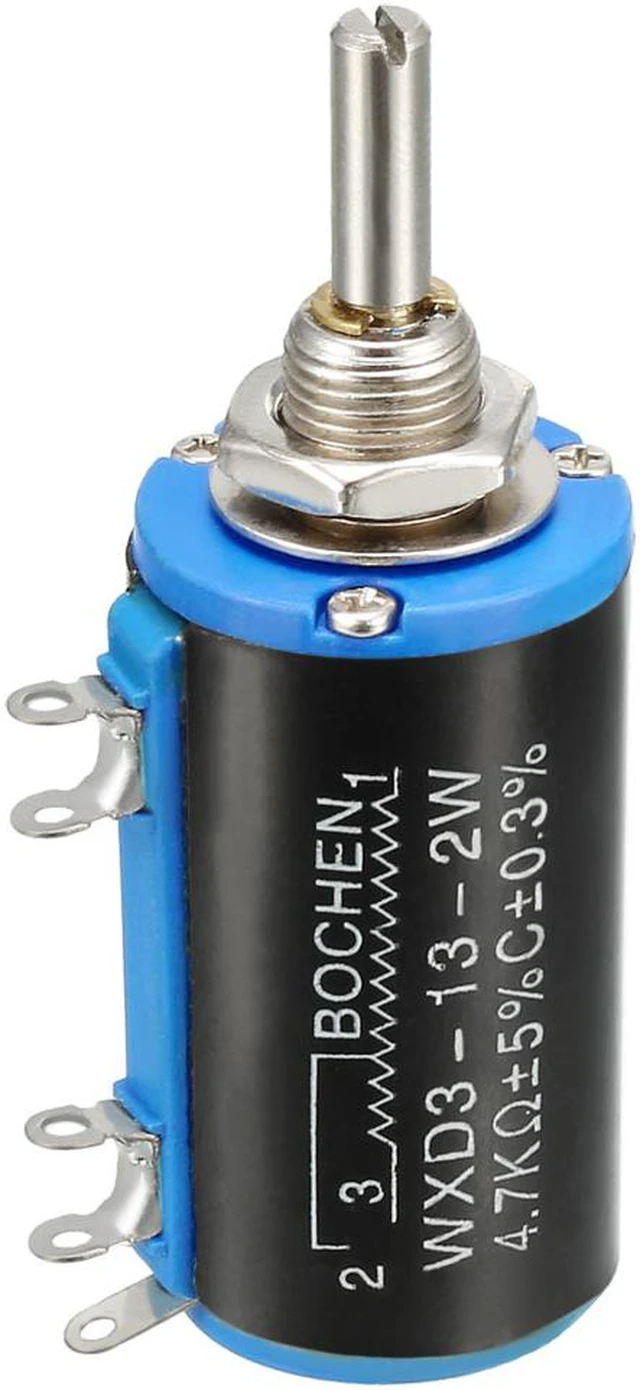

Model: WXD3-13
Resistance Value: 4.7K ohm
Power: 2W
Tolerance: +/-5%
Type: Wire Wound Multi TurnKEY_TAB
Terminals Number: 5
Features: Round Shaft

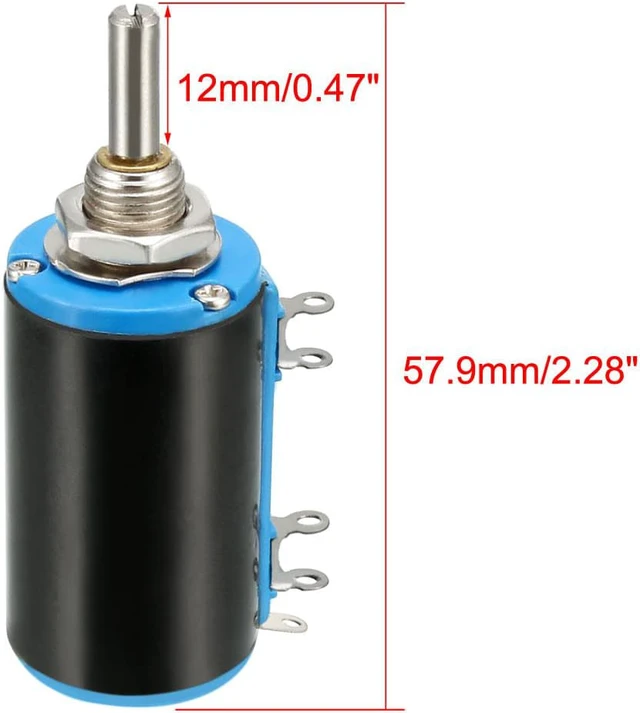

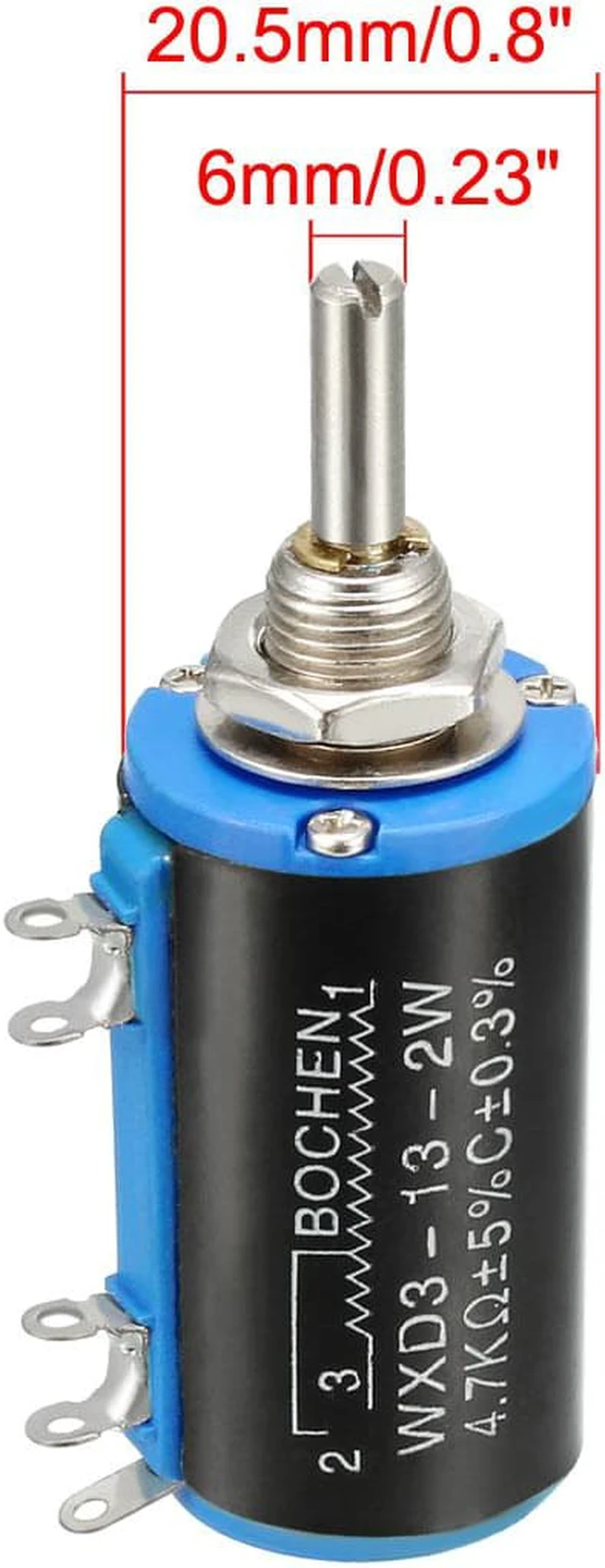

Total Size: 20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
Screw Thread Dia.: 7.8mm/0.3 inch
Shaft Diameter: 4mm/0.16 inch
Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
Shaft Total Length 20mm/0.79 inch
Package Content: 1 x Potentiometer
Features: 4.7K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs. this item do not include Knobs
Main used to control electrical devices such as volume controls on audio equipment.
Knurled shaft with split design for push-on knob.
