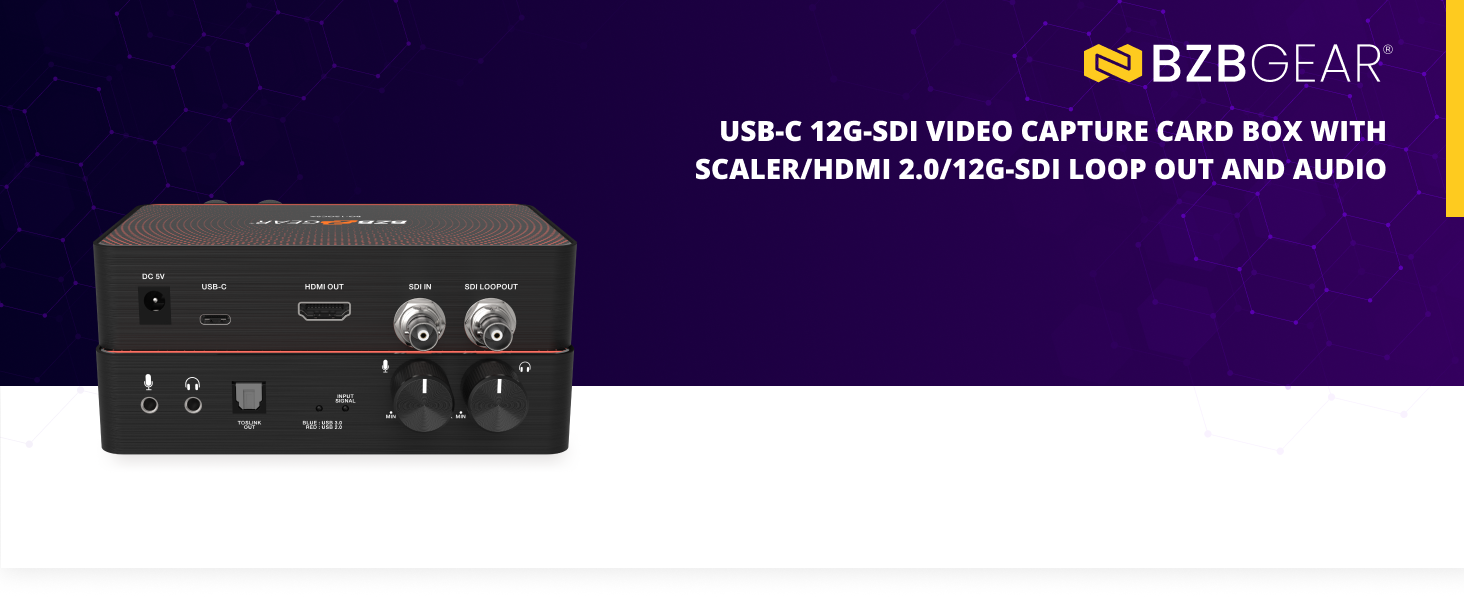

    BZBGEAR USB-C 12G-SDI Video Capture Card Box with Scaler/HDMI 2.0/12G-SDI Loop Out and Audio

    • Item #: 9SIV0ZNKCE6120
    • Mfr. Part #: BG-12GCSA
    Be the first to review this product...
    • Volume control - Use the volume control knobs to adjust the MIC/Headphone volume
    • Plug and Play - Auto-detection of video format
    • Software Compatibility Compatible with most 3rd party software such as OBS Studio and AMCap
    • Mic-in-mix - Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
    • Low Latency - 3~4ms at 1080P
    • Auto-Detection - Auto 12G/6G/3G/HD-SDI detection
    +
    +
    Overview
    Specs
    Reviews
    overview

    Overview

    The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

    Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.

    feat
    war
    int

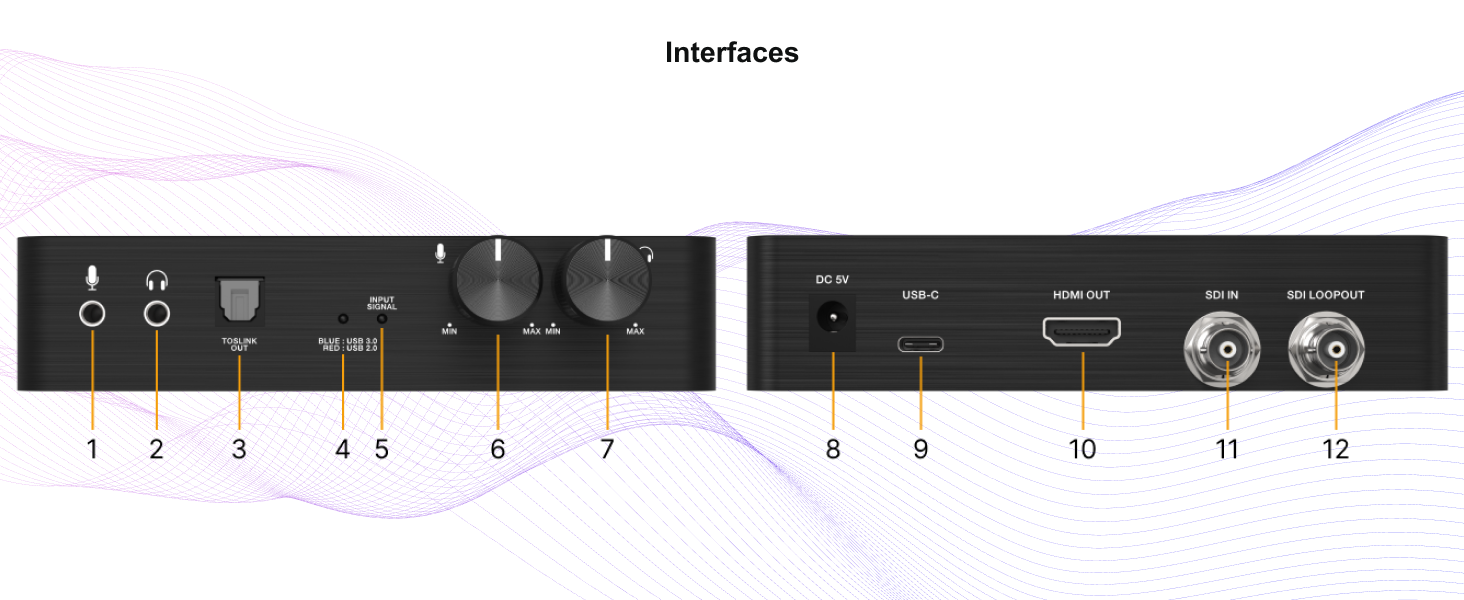

    1. STEREO AUDIO IN: Connect to an analog stereo audio source.
    2. STEREO AUDIO OUT: Extract audio from SDI input.
    3. TOSLINK OUT: Extract audio from SDI input.
    4. LED INDICATOR: USB-C LED signal indicator / [Red] The device is connected to the USB 2.0 port on the host / [Blue] The device is connected to the USB 3.0 port on the host. / LED INDICATOR: SDI input signal indicator LED.
    5. STEREO AUDIO IN VOLUME KNOB: Adjust the stereo audio in sound level.
    6. STEREO AUDIO OUT VOLUME KNOB: Adjust the stereo audio out sound level.
    7. +5V DC: 5V DC power jack.
    8. USB-C OUT: Connect to a USB host.
    9. HDMI OUT: Connect to a HDMI display.
    10. SDI IN: 12G/6G/3G/HD-SDI Input.
    11. SDI LOOPOUT: 12G/6G/3G/HD-SDI loopout.

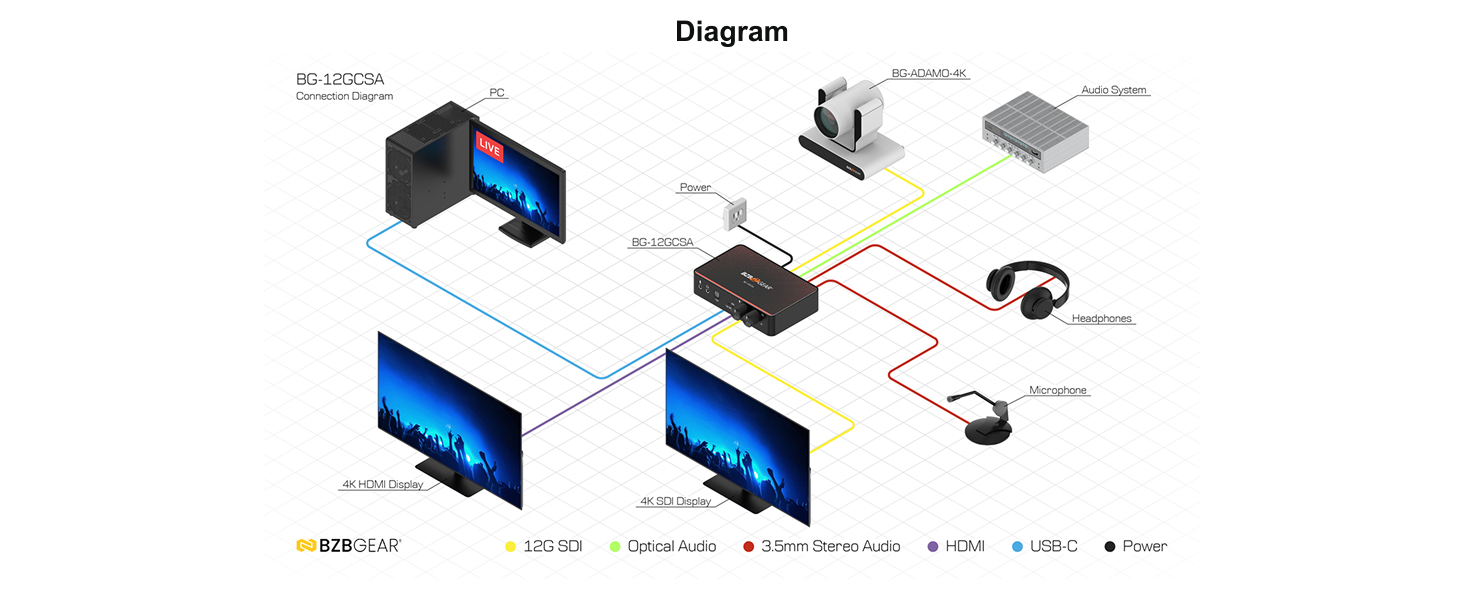

    dia

    The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.


    Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.


    Features:



    • Volume control - Use the volume control knobs to adjust the MIC/Headphone volume

    • Plug and Play - Auto-detection of video format

    • Software Compatibility - Compatible with most 3rd party software such as OBS Studio and AMCap

    • Mic-in-mix - Allows the microphone’s audio input to be combined or mixed with the audio that is being transmitted through the SDI connection

    • Low Latency - 3~4ms at 1080P

    • Auto-Detection - Auto 12G/6G/3G/HD-SDI detection

    • SDI video and audio streams over USB 3.1 Type-C Gen 1

    • UVC1.0/1.1/1.5

    • Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)

    • HDMI up to 4K2K@60

    • SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60

    • Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps

    • Deinterlacer & scaler (upscale to 1080p@120Hz)

    • SDI audio extraction

    • Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS

    • USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)

    • USB-C reversible
