4K HDMI Video Capture Card, Cam Link Card Game Capture Card Audio Capture Adapter HDMI to USB 2.0 Record Capture Device for Streaming, Live Broadcasting, Video Conference, Teaching, Gaming(Black)

Advantages

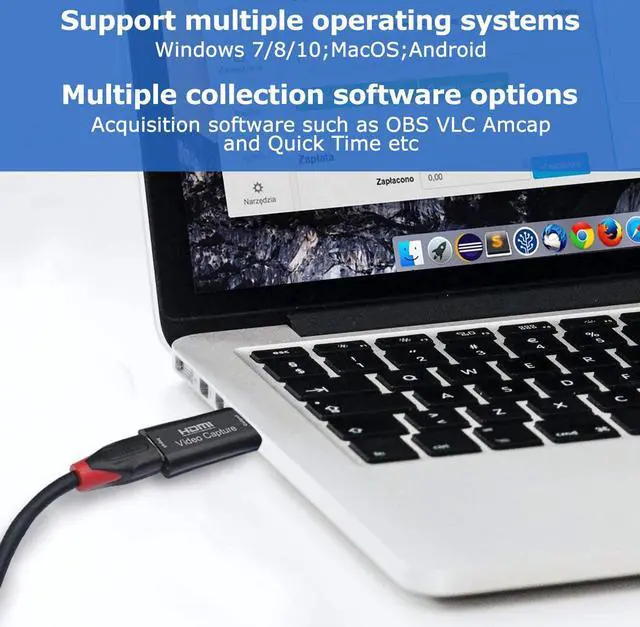

1.Universal Compatibility. HDMI Video Capture supports most acquisition software, Support Windows?Android and MacOS system.


2.Stable Capture; Smooth video and audio; Without delay.


3.High Speed Transmission. Game Capture Card supports Input (HDMI) max resolution 4K @60Hz; output (USB) max resolution 1080P@60Hz. Please used with 4k HDMI cable.


4.The capture card can realize screen sharing, fast, convenient & economical.


5.No External Power Supply Required, Compact and Portable; Easy to Use and Carry.

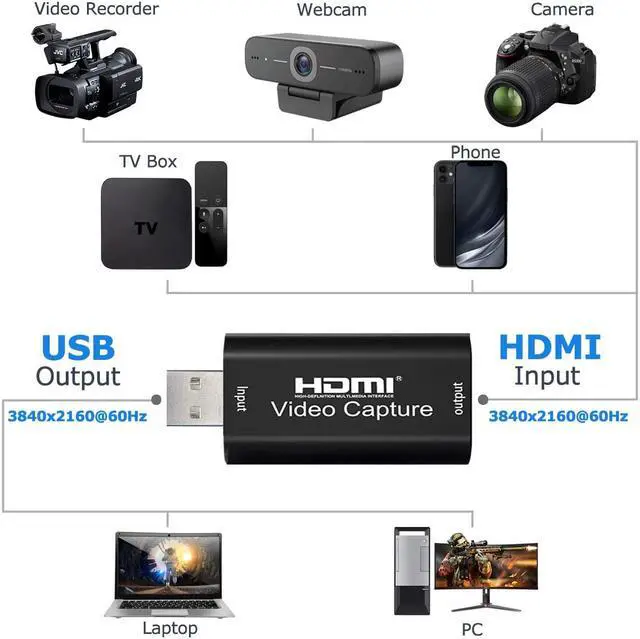

Connection and Operation


1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.


2. Connect the computer to the usb port of the video capture with usb cable.


3. Operation steps for USB video capture(OBS): Open the software ?Choose sources of Video capture Device ?Set the size of image ?Choose Studio Mode(double window) ?Choose Start Recording.




Features


* Support input max resolution 4K & output max resolution 1080P;


* Support 8/10/12bit deep color;


* Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);


* Video output format: YUV / JPEG; Support audio format: L-PCM


* Max working current: 0.4A/5VDC


* Operating Temperature range: (-10 to +55?)

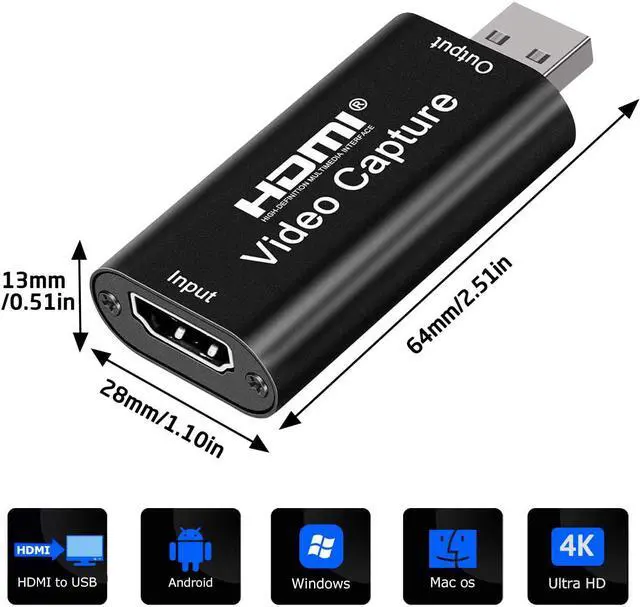

* Dimension (L x W x H): 64x28x13 (mm); Weight: 21.4g




Note


Computer hardware configuration requirements


CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above


Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above


Run memory: 4G RAM




Package Lists


1x Video capture; 1x User manual
