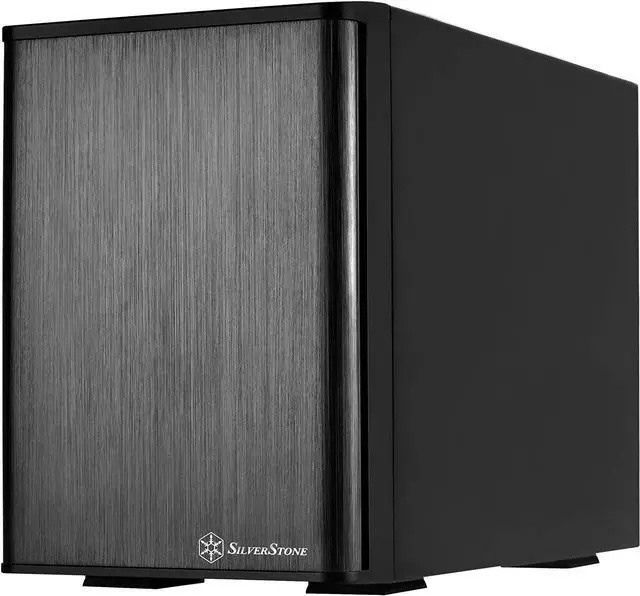

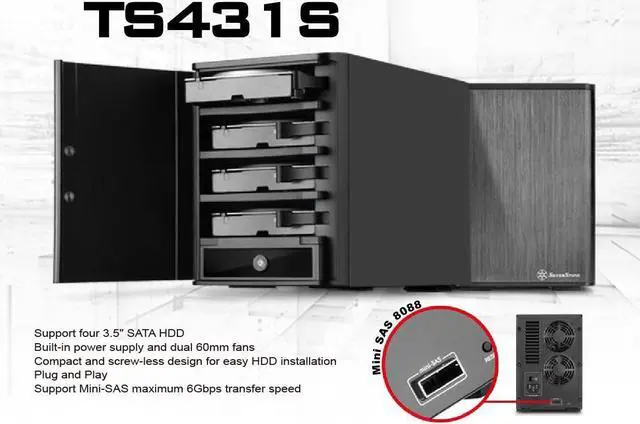

Silverstone SST-TS431S-V2 3.5inch SATA HDD/SSD 4xBay Mini-SAS Port Enclosure
- The TS431S is a 4-bay storage tower with miniSAS interface. TS431S use a high bandwidth miniSAS cable interface to get to superior and reliable data transfer performance. MiniSAS cabling combines four hard drives SATA connections into one to save the wiring space and reduce failure connection possibilities. Provided JBOD mode which can concentrate separate single hard drives volume into one big capacity for more flexible utilization.
- Support four 3.5 SATA HDD
- Built-in power supply and dual 60mm fans

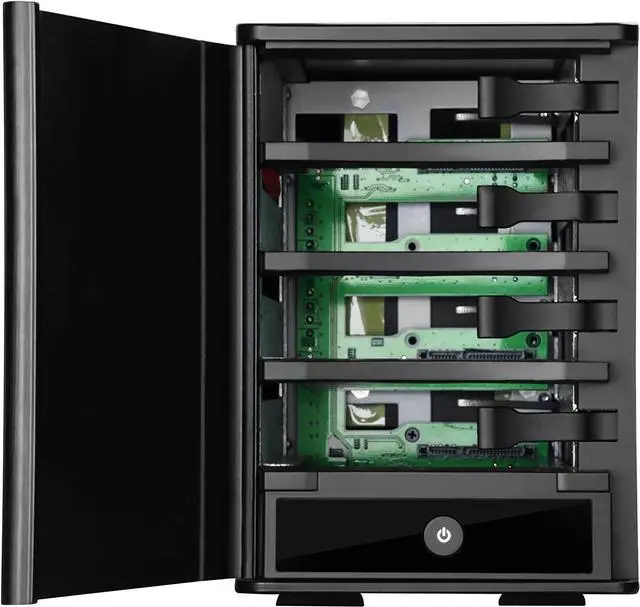

- Compact and screw-less design for easy HDD installation
- Plug and Play
- Support Mini-SAS maximum 6Gbps transfer speed
+
+
Overview
Specs
Reviews

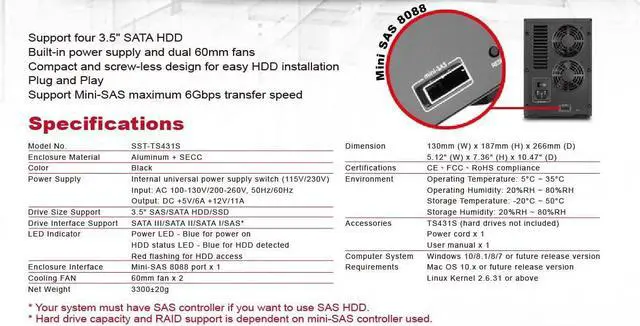

Enclosure material Aluminum + SECC
Color Black

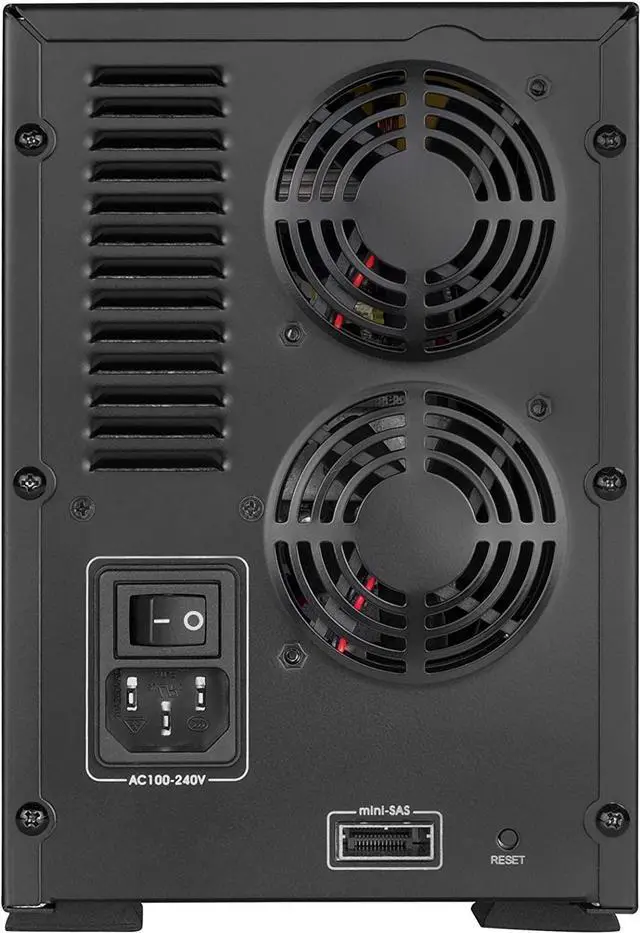

Cooling system 60mm fan x 2
Certifications CEFCC
RoHS compliance
HDD Drive Support SATA III/SATA II/SATA I/SAS*
Power Supply Internal universal power supply switch (115V/230V)
Input: AC 100-130V/200-260V, 50Hz/60Hz
Output: DC +5V/6A +12V/11A
Drive support 3.5 SAS/SATA HDD/SSD
Minimum System Requirements Windows XP, Vista, 7
Mac OS 10. x
Linux Kernel 2.6. 31 or above

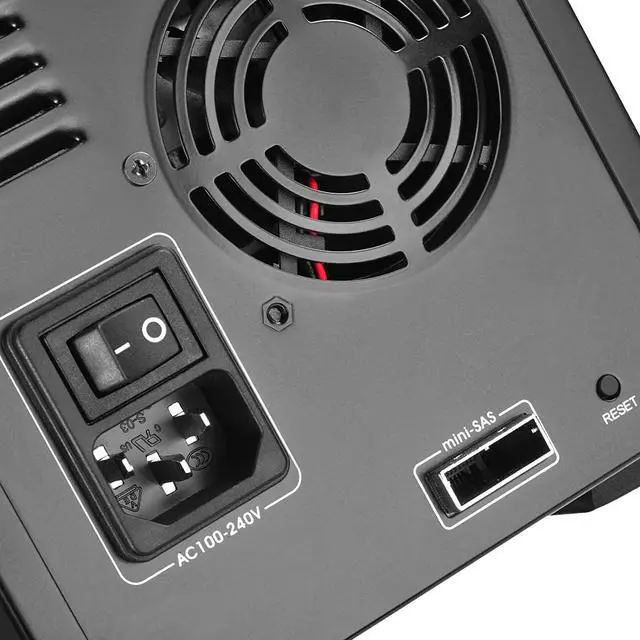

Enclosure interface Mini-SAS port x1
LED indicator Power LED - Blue for power on
HDD status LED - Blue for HDD detected
Red flashing for HDD access
Environment Operating Temperature: 5°C ~ 35°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH
Accessories TS431S (hard drives not included)
Power cord x 1
User manual x 1
Net weight 3300±20g
Dimension 266mm (D) x 187mm (W) x 130mm (H)
10.47" (D) x 7.36" (W) x 5.12" (H)
Remark
*Your system must have SAS controller if you want to use SAS HDD
*Hard drive capacity and RAID support is dependent on mini-SAS controller used
Color Black
Cooling system 60mm fan x 2
Certifications CEFCC
RoHS compliance
HDD Drive Support SATA III/SATA II/SATA I/SAS*
Power Supply Internal universal power supply switch (115V/230V)
Input: AC 100-130V/200-260V, 50Hz/60Hz
Output: DC +5V/6A +12V/11A
Drive support 3.5 SAS/SATA HDD/SSD
Minimum System Requirements Windows XP, Vista, 7
Mac OS 10. x
Linux Kernel 2.6. 31 or above
Enclosure interface Mini-SAS port x1
LED indicator Power LED - Blue for power on
HDD status LED - Blue for HDD detected
Red flashing for HDD access
Environment Operating Temperature: 5°C ~ 35°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH
Accessories TS431S (hard drives not included)
Power cord x 1
User manual x 1
Net weight 3300±20g
Dimension 266mm (D) x 187mm (W) x 130mm (H)
10.47" (D) x 7.36" (W) x 5.12" (H)
Remark
*Your system must have SAS controller if you want to use SAS HDD
*Hard drive capacity and RAID support is dependent on mini-SAS controller used
