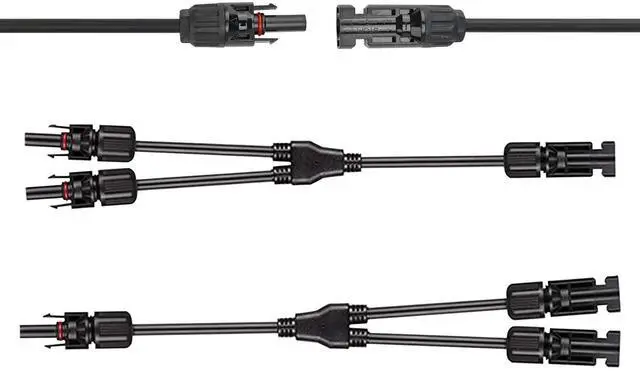

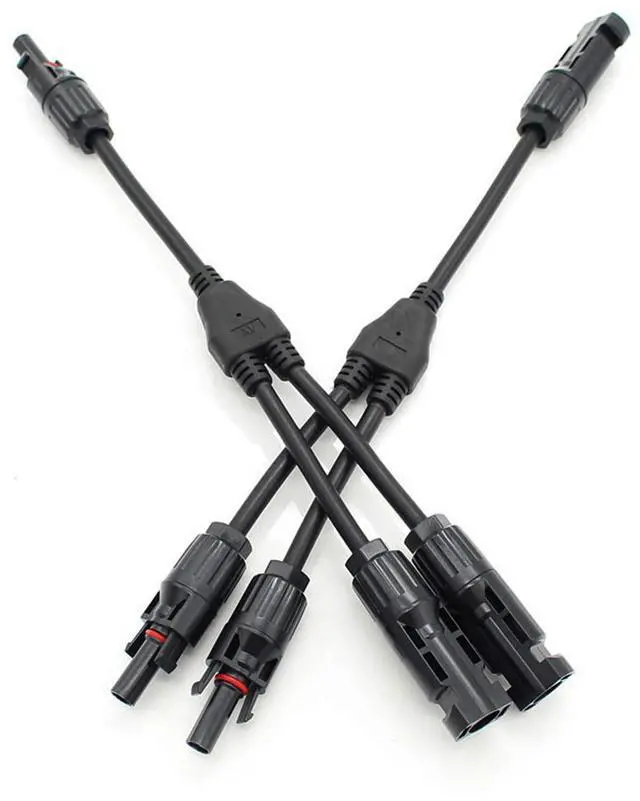

Y Branch Connector Extension Kit Solar Panel Cable Connection Adapter Waterproof 1 to 2 Y Branch Connector

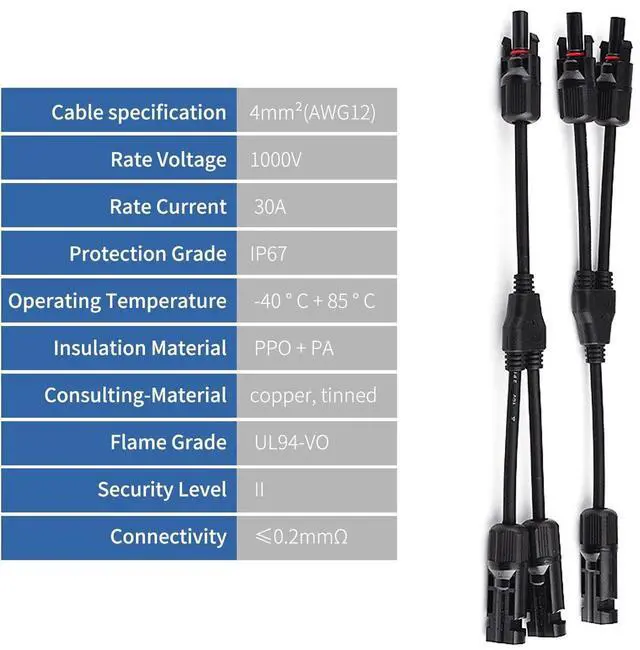

Parameter:

Model: 1 to 2

Rated current: 20A (4mm²) 30A (6mm²)
Rated voltage: 1000V DC
Contact resistance: <2m
Insulation resistance: >500m
Suitable single core cable section: 2.5 mm2, 4mm2, 6mm2
Cable outer diameter: 5mm ~ 7mm
Connector insulation material: PPO

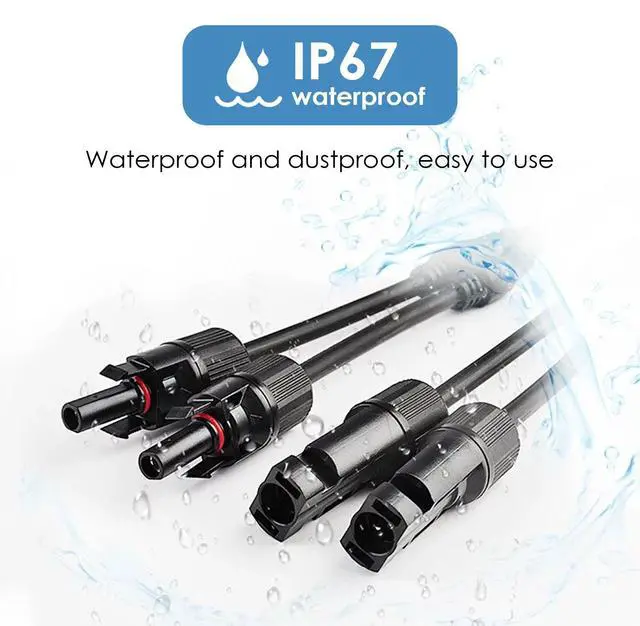

Degree of protection: IP67
Safety: II
Operating temperature range: -40 ~ +105

Model: 1 to 3

Rated voltage: TUV1000 V DC /UL 600V DC
Current: 20A~30A
Wire gauge: 2.5 mm²~6mm² / 14AWG~10AWG
Terminal specification: 4.0 mm
High voltage: TUV6000 V AC (1 min) /UL 2200V DC (1 min)
Safety: II
Connector conductor material: Copper, Silver Plated
Contact resistance: 5m
Material: PPO
Degree of protection: IP68 (IEC 60529)
Temperature rating: -40 degree ~ +85 degree
Flame Retardant Grade: UL94V-O

Model: 1 to 4

It can be used in harsh environment
Created seal, design of dust proof
Strong pulling force capability
Lower contact resistance
Load capability with big current and high voltage
Double seal rings for better waterproof effect
With excellent aging resistance and UV endurance
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof

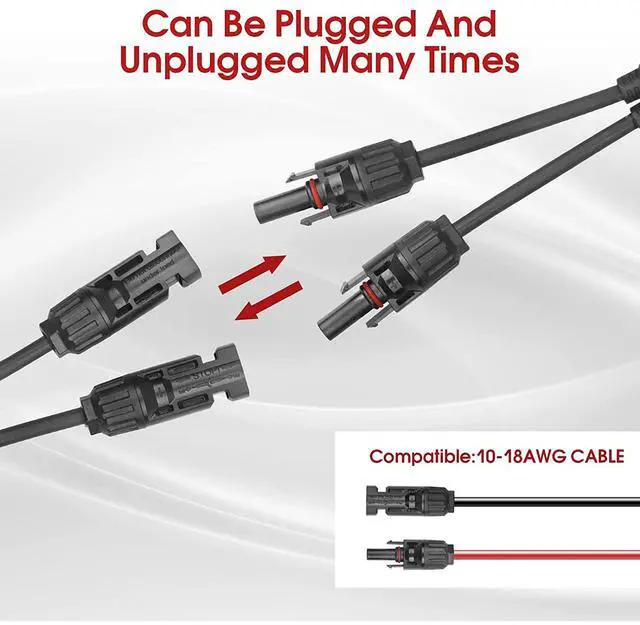

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Features:

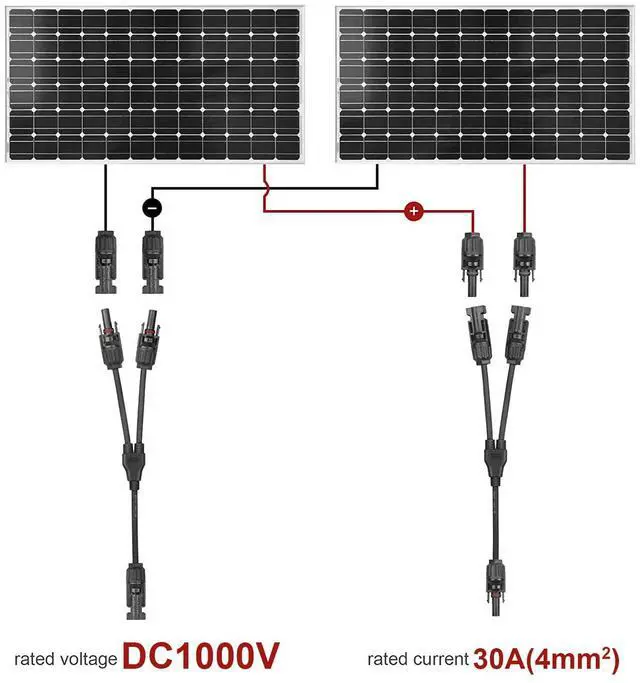

This Y Style Solar Cable Connector Set is a perfect solution to parallel connect multiple panels
together.
Simple and fast help throughout the process and simple plug-in, without any additional equipment.
High temperature resistant, the materials do not melt or flow Good cold flexibility, Long life cycle.
Electron-beam cross-linked compounds UV and ozone resistant Hydrolysis resistant.

Package included: (Depond on your choice)

1 Pair 2/3/4 of Y Branch Solar Panel Cable Connectors
