RS485 CAN HAT Stably Long-Distance Communication Functions UART Controlled SPI Interface for Raspberry Pi Zero W WH 2 3 4 Model B B+ @XYGStudy

Item #: 9SIVAMDHYK3631
Mfr. Part #: 6900111252

Be the first to review this product...

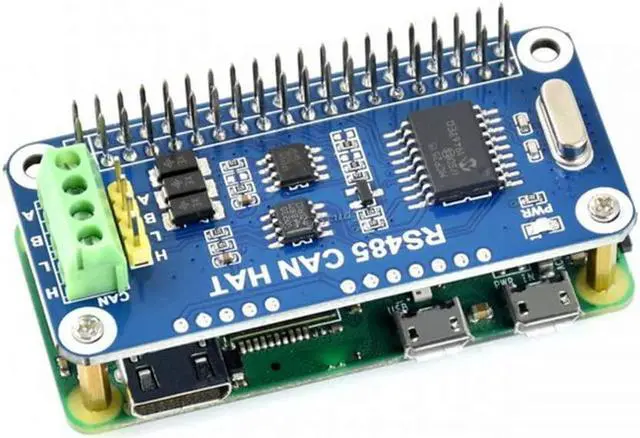

RS485 CAN HAT for Raspberry Pi, Allows Stable Long-distance Communication The RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions. CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485 Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions

Overview

Specs

Reviews

OverviewThe RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions. Features Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, llgthningproof & anti-electrostaticReserved control pins, allows to work with other control boards Comes with development resources and manual (examples in wiringPi/python)
SpecificationsOperatingvoltage: 3.3V
CANcontroller: MCP2515
CANtransceiver: SIT65HVD230DR
485transceiver: SP3485

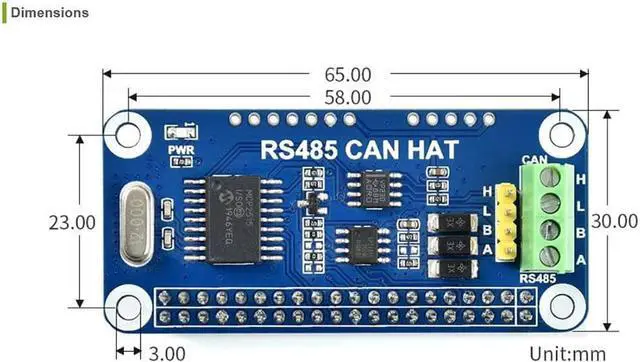

Dimension: 65mm x 30mm

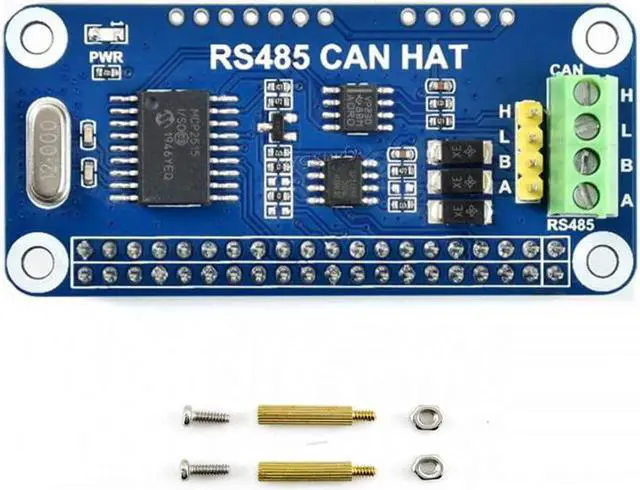

Mountingholesize: 3.0 mm Package Contains RS485 CAN HAT x1 RPi screws pack (2pcs) x1We also provide an isolated interface converter 'USB TO RS232/485/TTL' for easy testing, pls search from my store.
