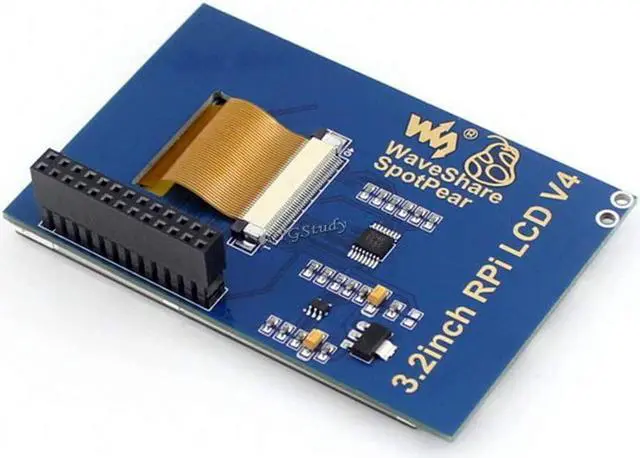

3.2 inch Resistive Touch Screen TFT XPT2046 LCD compatible with Raspberry Pi (Pi 1 2 3) Model B B+ A+ Raspbian Video Photo System @XYGStudy

Features320x240 hardware resolution Resistive touch control Supports any revision of Raspberry Pi (directly-pluggable) Drivers provided (works with your own Raspbian/Ubuntu/Kali)Supports FBCP software driver as well, allows to config software resolution and set up dual-displaySize perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+/4B) 3 user keys High quality immersion gold surface plating Combined with the Raspberry Pi, allows
youto: * Take photos by touching (up to 17 camera modes) * Use software keyboard (system interaction without keyboard/mouse) FAQ Why the LCD doesn't work with my Raspbian? *To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual. *However, for the first testing, you may want to use our provided image directly. Why the LCD still doesn't work with the provided image? *Make sure the hardware connection is correct and connects fine. *Make sure the image in TF card is burnt correctly. *The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. Which power supply should I use? *It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. *For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

Package Contains 3.2 inch RPi LCD (B) *1Touch pen*1RPi screws pack (2pcs) *1Quick start sheet *1
