1.3 inch OLED Display HAT for Raspberry Pi 2B/3B/4B/Zero/Zero W Jetson Nano 128x64 Pixels SPI/I2C Interface @XYGStudy

Item #: 9SIVAMDHYK3671
Mfr. Part #: 6900111264

Be the first to review this product...

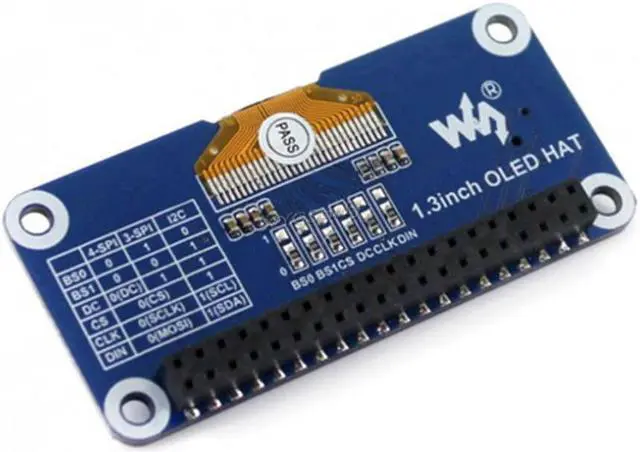

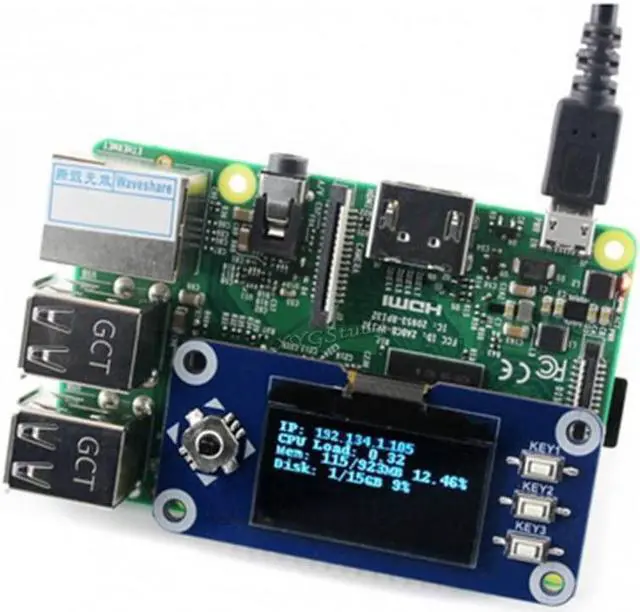

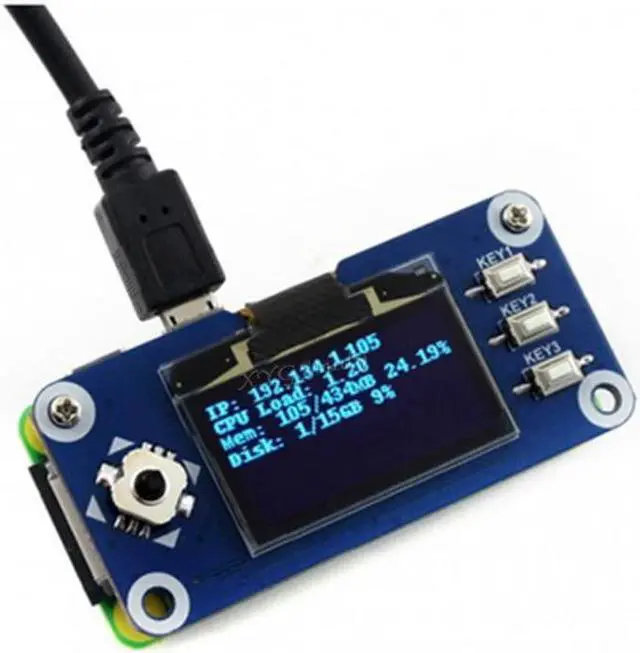

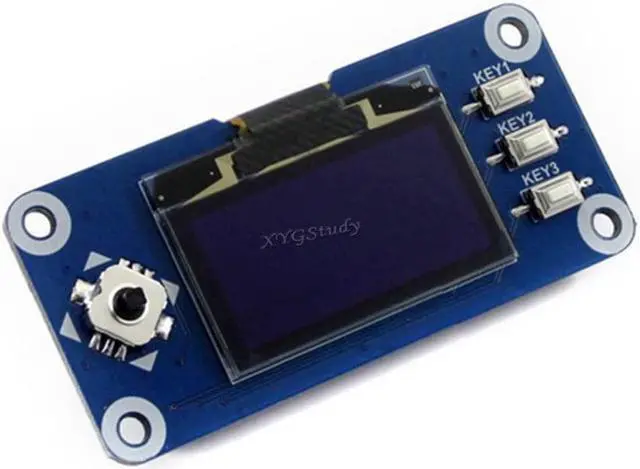

1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice. Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions, Jetson Nano

Overview

Specs

Reviews

OverviewThis is an OLED display HAT for Raspberry Pi, 1.3 inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. FeaturesStandard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions, Jetson Nano

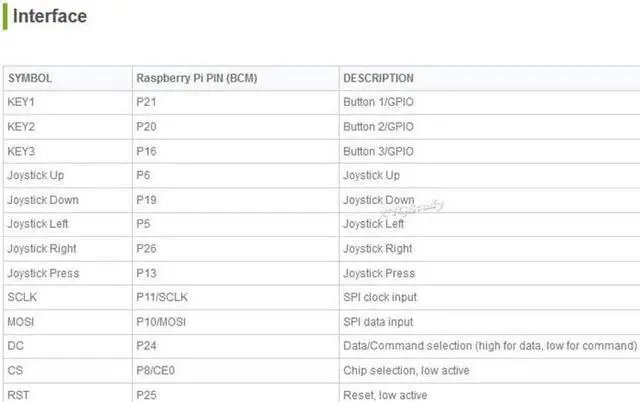

Optionalinterfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor 1x joystick (5-position), 3x pushbuttons, handy and useful Comes with development resources and manual (examples for
RaspberryPi/JetsonNano)SpecificationsDriver: SH1106
Interface: 4-wire SPI, 3-wire SPI, I2C
Displaycolor: blue
Resolution: 128x64
Operatingvoltage: 3.3V Package Contains 1.3 inch OLED HAT x1 RPi screws pack (2pcs) x2
