Single Board Computer, VIM3 Pro Amlogic A311D,Faster CPU,Neural Processing Unit for A.I.Switchable PCIe and USB 3.0,Dual Independent Displays,Dual Cameras (4+32GB)
- Item #: 9SIVAMDJ4T1702
- Mfr. Part #: 9609011284

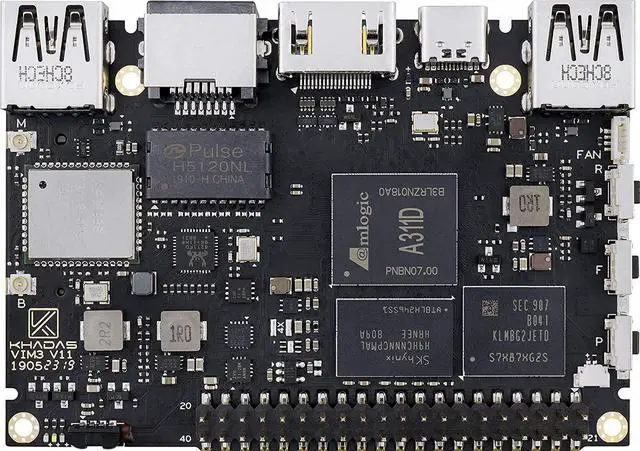

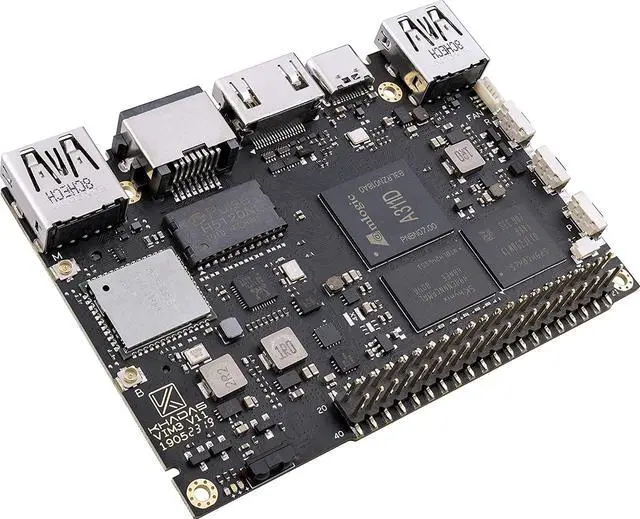

- High Performance: Amlogic A311D - x4 2.2Ghz Cortex A73, x2 1.8Ghz Cortex A53 12nm SoC fabrication process for low heat 2T2R AC Wi-Fi with RSDB Features Bluetooth 5.0 USB 3.0 Available Gigabit Ethernet with WOL support LPDDR4/X USB-C PD for heavy applications
+
+
Overview
Specs
Reviews
High Performance: Amlogic A311D - x4 2.2Ghz Cortex A73, x2 1.8Ghz Cortex A53 12nm SoC fabrication process for low heat 2T2R AC Wi-Fi with RSDB Features Bluetooth 5.0 USB 3.0 Available Gigabit Ethernet with WOL support LPDDR4/X USB-C PD for heavy applications
Neural Network Accelerator: NPU: Supports a maximum frequency of 800MHz at 5.0 TOPS INT8 inference up to 1536 MAC Internal L2 cache (512KB) and system workspace buffer (1MB) Supports all major deep learning frameworks including TensorFlow and Caffe

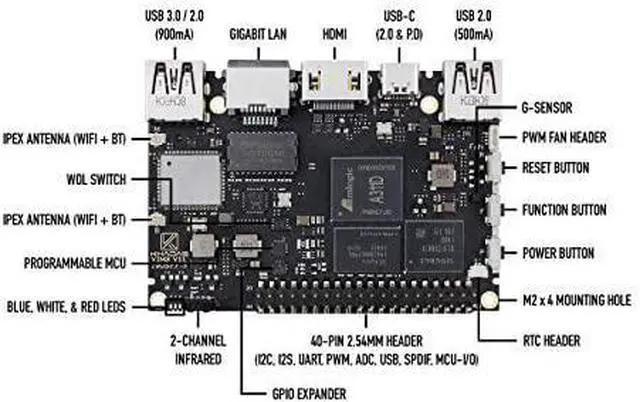

Maker Friendly: Stackable Design Programmable MCU 3 Programmable LEDs (Blue, Red and White) XPWR for external Power button Onboard SPI Flash Khadas TST Khadas KBI
Business Applications Dual independent displays with GSensor H.264 / H.265 Encoding Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps VIN Power Input

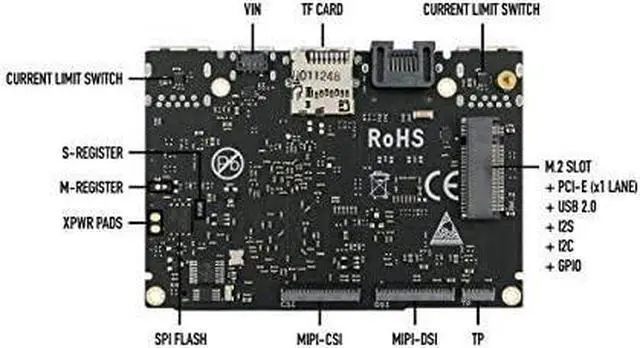

Rich IO: 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc) 8-ch I2S for Microphone Array application (over M.2 Connector) MIPI-DSI MIPI-CSI Designed with GPIO Extender Chip
Neural Network Accelerator: NPU: Supports a maximum frequency of 800MHz at 5.0 TOPS INT8 inference up to 1536 MAC Internal L2 cache (512KB) and system workspace buffer (1MB) Supports all major deep learning frameworks including TensorFlow and Caffe
Maker Friendly: Stackable Design Programmable MCU 3 Programmable LEDs (Blue, Red and White) XPWR for external Power button Onboard SPI Flash Khadas TST Khadas KBI
Business Applications Dual independent displays with GSensor H.264 / H.265 Encoding Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps VIN Power Input
Rich IO: 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc) 8-ch I2S for Microphone Array application (over M.2 Connector) MIPI-DSI MIPI-CSI Designed with GPIO Extender Chip
