HVAC 1/4" & 5/16" SAE Dual Ports Installer Valve Core Remover R410A/R22 Tool Kit

Product Features

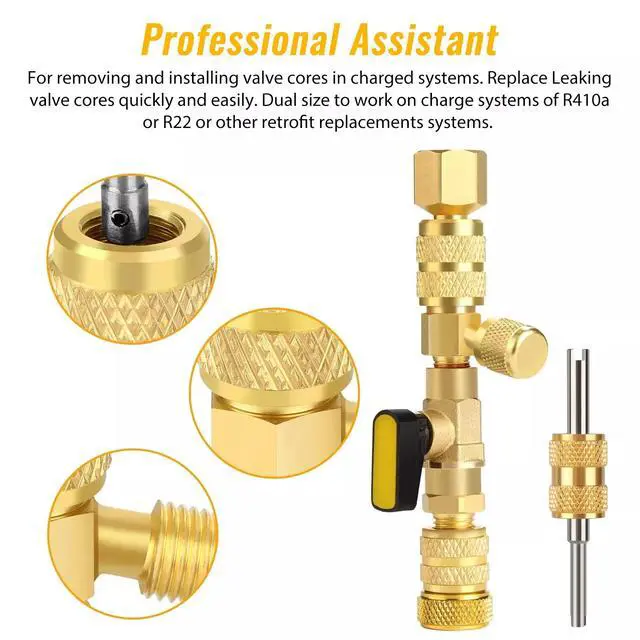

Professional Assistant: For removing and installing valve cores in charged systems. Replace Leaking valve cores quickly and easily. Dual size to work on charge systems of R410a or R22 or other retrofit replacements systems.

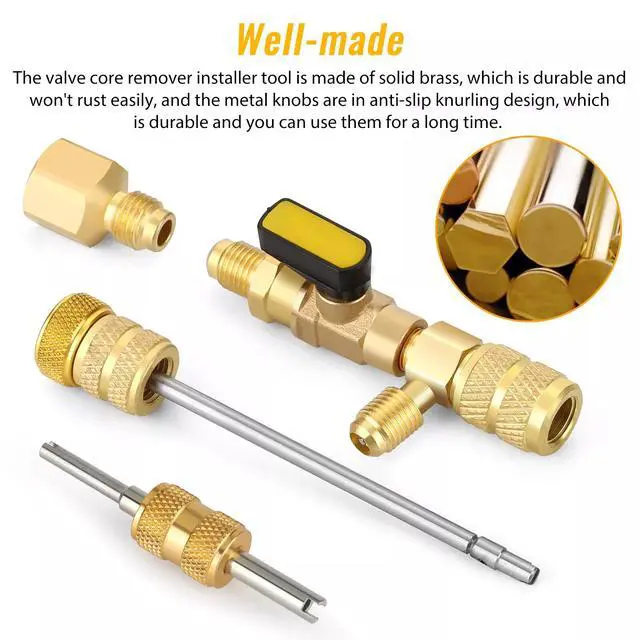

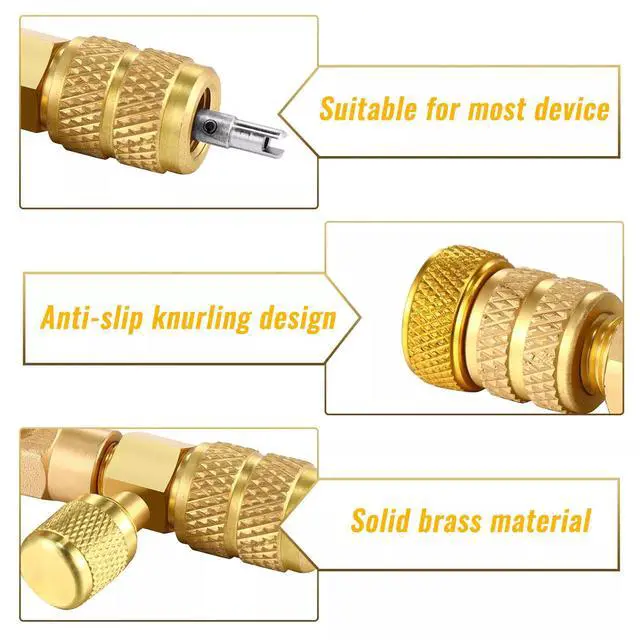

Well-Made: The valve core remover installer tool is made of solid brass, which is durable and won't rust easily, and the metal knobs are in anti-slip knurling design, which is durable and you can use them for a long time.

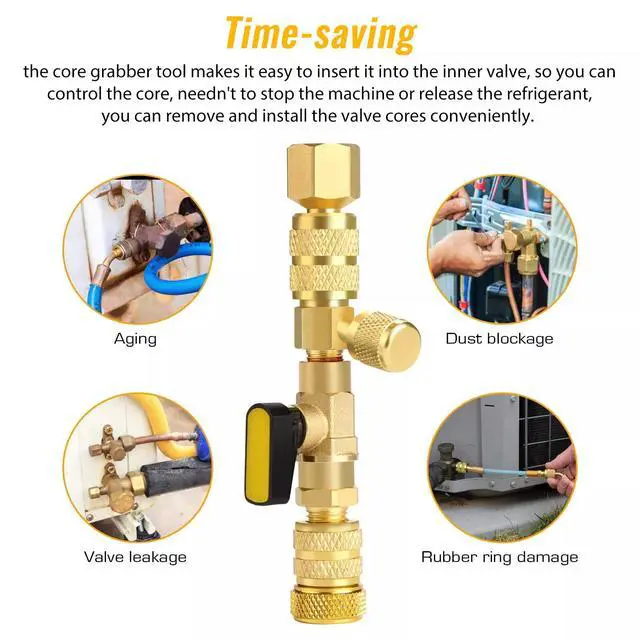

Time-saving: the core grabber tool makes it easy to insert it into the inner valve, so you can control the core, needn't to stop the machine or release the refrigerant, you can remove and install the valve cores conveniently, save hours of evacuation and charging time.

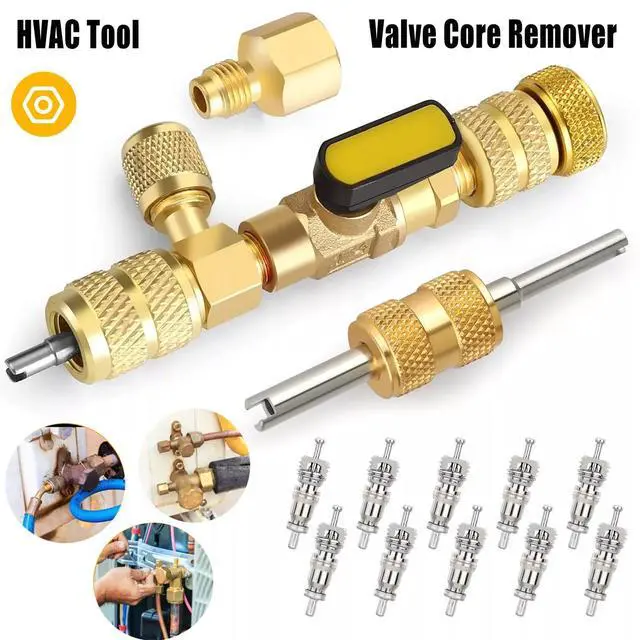

Package Include: 1 x 1/4" and 5/16" Valve Core Remover Installer Tool, 10 x 5V1Valve Cores, 1 x classic Valve Core Remover.
Item: Valve Core Remover Installer, R410a valve core removal tool, R22 valve core removal tool, a/c valve core removal tool, HVAC valve, core removal tool, Schrader valve removal tool, refrigeration air condition services for pressurized mini split system.
How To Use

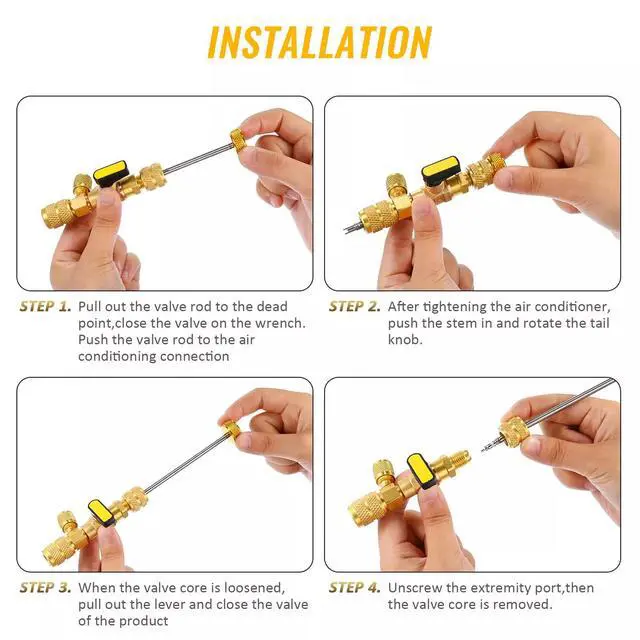

Valve Core Removal Wrench Basic Operation:
1. Pull out the dead point on the stem, close the valve on the tool, adjust the joint of the tool to the air conditioning interface, and tighten the valve on the air conditioning.
2. Make sure that the tool is connected tightly to the air conditioning valve, then open the valve on the tool. Push the stem into the air conditioning valve and gently rotate the tail knob of the remover. Find the angle to connect the valve core, and then loosen it.
3. When the valve core is removed, pull out the stem, close the valve on the valve remover, loosen the screw at the end of the tool and take out the valve core.
Note

We suggest that before removing the valve core, close the valve core wrench valve and disconnect the air conditioner internal connection.

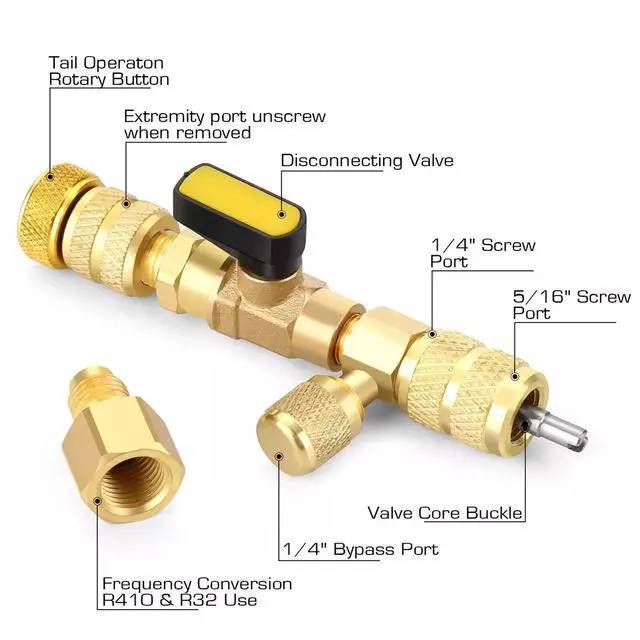

Product Specification

Type Valve Core Remover Installer Tool
Material Copper
Service ports 1/4" and 5/16" SAE Female
Bypass ports 1/4" SAE Male
Application For removing and installing valve cores in charged systems
Suitable For charge systems of R410a or R22 or other retrofit replacements systems
Package Included

1Pc x Valve Core Remover Installer
1Pc x Valve Core Remover
10Pcs x 5V1 valve core
