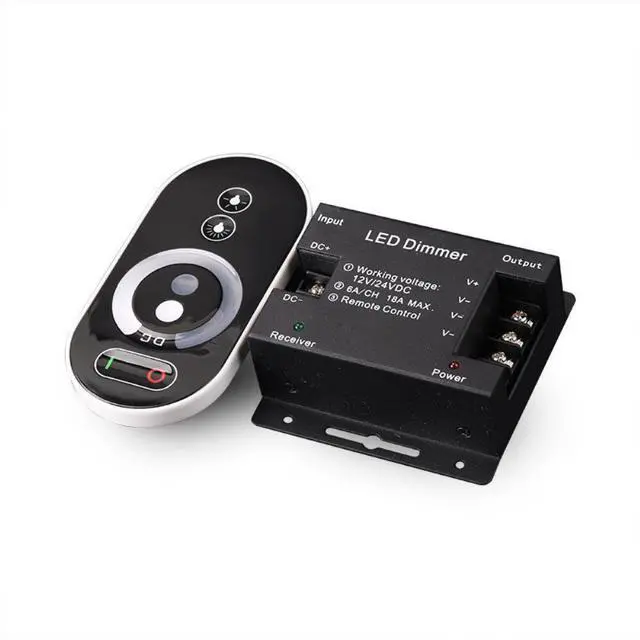

12V Dimmer Dimmer LED Controller DC24V 432W Dimmer 6A/CH RF Touch Remote Control For Lamp Bulb Strip Driver Single Color Light

Certification:NONE
Origin:CN(Origin)
Control range:20M
Material:ABS
Rated voltage:DC12-24V

Product description
& nbsp; & nbsp; The wireless touch dimming color temperature controller adopts the latest capacitive touch technology and unique appearance design to realize the dimming control simply, intuitively and remotely. It provides two outputs, one of which can be adjusted separately or two at the same time. This product has the advantages of convenient wiring, stable RF transmission, small interference and long service life. The controller adds powerful short-circuit protection function. After short-circuit, the indicator light will flash at a fixed frequency to prompt the user that the output of the controller is short circuited. The controller also has the function of automatic recovery after short-circuit protection and humanized settings, so that users can easily experience different feelings.
performance parameter
Controller
Working temperature: -20-60
Power supply voltage: DC12V~24V
Output: Three CMOS open drain outputs (two C-channel signals are the same)
Connection method: common anode
overall dimension: l83 × W79 × H33 mm
packing size: L205×W134×H47mm
Net weight: 227g
Gross weight: 379g
Static power consumption:
Output current:
Output power: 5V:90W, 12V:
remote control:
Working temperature: -30~+60
Power supply mode: 7th *2
Power supply voltage: 3V
Standby power consumption:
Remote control distance:> 20m

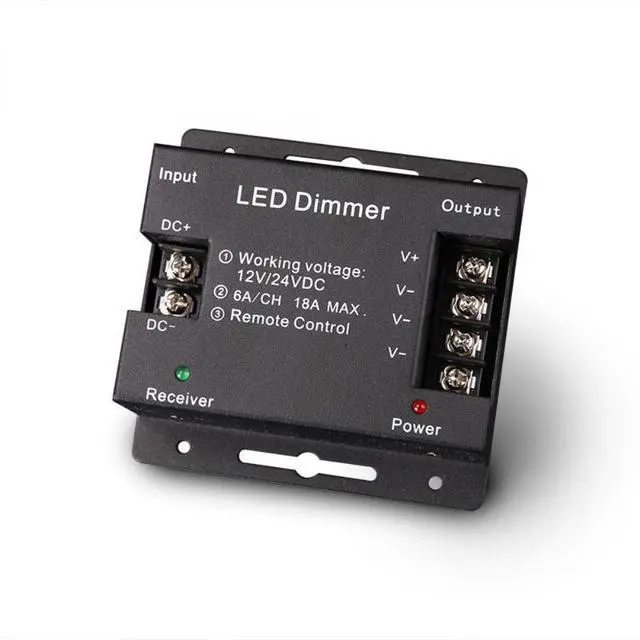

Interface description
DC+: positive input terminal of power supply (supply voltage)DC12~24V)
DC-: is the negative input terminal of power supply
V+: is the load common pole positive
V-: output terminal negative pole, three parallel outputs
Power: Red indicator light, it is the power indicator light, the light will be on when the power is normal
Receiver: green indicator light, which is off at ordinary times, and flashes when receiving the remote control signal. When the output of the controller is short-circuited, the indicator light flashes at a fixed frequency, prompting the user to have a short circuit .
Features
The appearance is novel and fashionable, unique, feels good, and noble. To
The pulley has many electric shocks and is easy to use. Various color temperature modes on the color temperature pulley touch screen are clear at a glance and very intuitive. The color temperature can be selected by single point or continuous touch. The user can quickly select the desired brightness& nbsp;
Low power consumption, long service life, unlimited touch, and short service life of traditional keys.
Automatic sleep function, when the touch remote control is in the button-state for more than 20s, it can automatically enter the standby state, realizing saving Electricity, prolong life.
With the function of automatic short-circuit detection and protection, the output will be automatically closed in case of short-circuit, and the indicator light will flash. The output will be restored automatically after 10s, or the user can power on again to restore the output.
Stable remote control and long distance.
