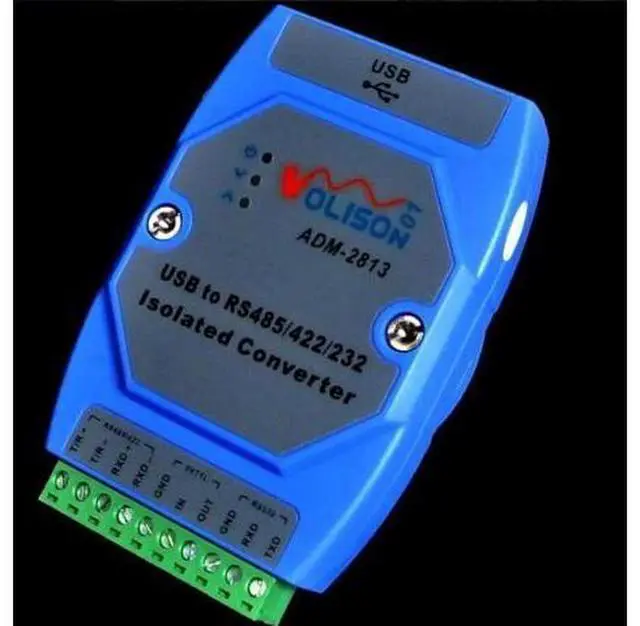

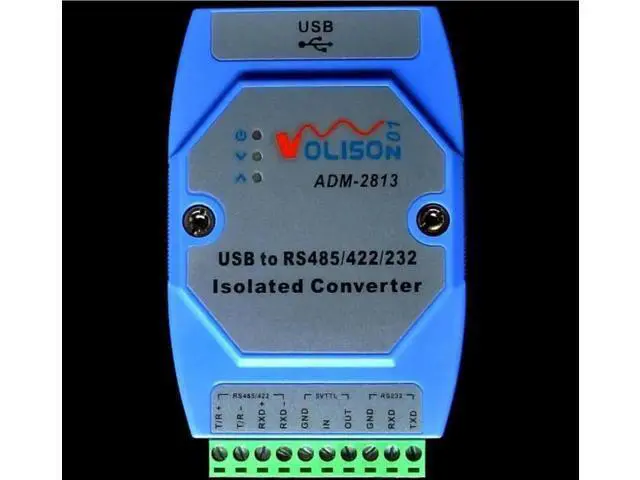

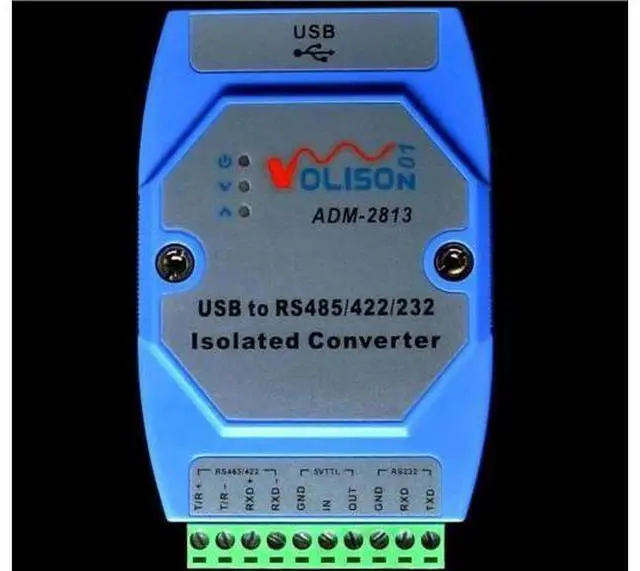

ADM-2813 Industrial grade USB to RS485/422/232/TTL USB to 485232 photoelectric isolation FT232 rail

Certification: CE
Smart home platform: NONE
Origin: CN (Origin) Industrial isolation type USB to 232/485/422/TTL AMD-2813 Product Brief ADM-2813 is an industrial grade USB to RS-485/422/232/TTL photoelectric isolated converter without external power supply and compatible with USB 1.0 USB 2.0 standard. It can convert the USB signal of computer or industrial computer intoRS-485/422/232/TTL Signal, zero time delay automatic receive and transmit, automatic control of data flow direction, plug and play. The imported FT232 chip is used as the USB signal conversion chip, RS-485/422/232 interface with lightning protection, surge protection, anti-static protection, Stable and reliable operation. performance parameter 1 compatible with USB 1.0, US 2.0 and RS-485/422 A/EIA standards 2, input
interface: 1 road USB-B, VCC, D+, D-, GND
3 output interface: 1 way RS-485/422/232/5VTTL interface (4 kinds of data)
RS-485:, T/R+, T/R-
RS-422:, T/R+, T/R-, RXD+, RXD-
RS-232:, TXD, RXD, GND
5VTTL:, IN, OUT, GND 4, communication
rate: RS- 232:300 BPS- 115.2KBPS, RS-485/ 422:0 ~ 230.4KBPS 5, load
capacity: RS-485 can connect 32 devices 6, communication
distance: RS-485/ 422:1000 meters (1200BPS), RS- 232:10 meters, USB: 5 meters 7, LED
instructions: power supply, data direction indicator 8, work
mode: asynchronous half duplex, 2 line (RS-485), full duplex 4 wire (
