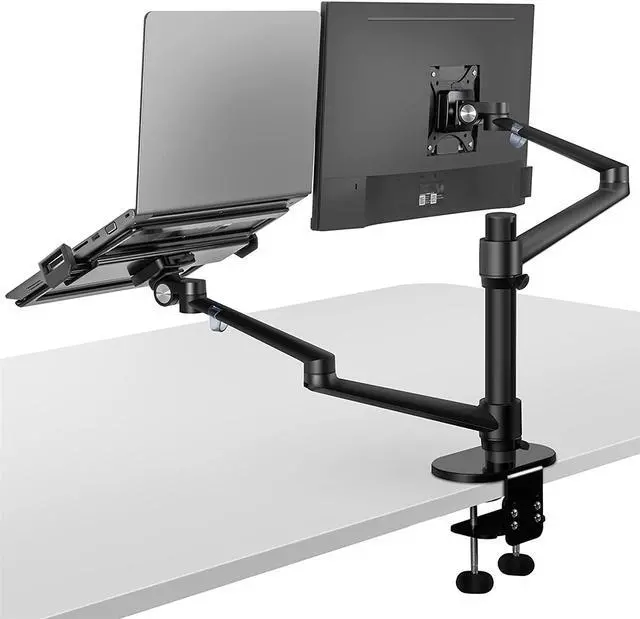

Monitor and Laptop Mount, 2-in-1 Adjustable Dual Arm Desk Mounts Single Desk Arm Stand/Holder for 17 to 32 Inch LCD Computer Screens, Extra Tray Fits 12 to 17 inch Laptops (Black)

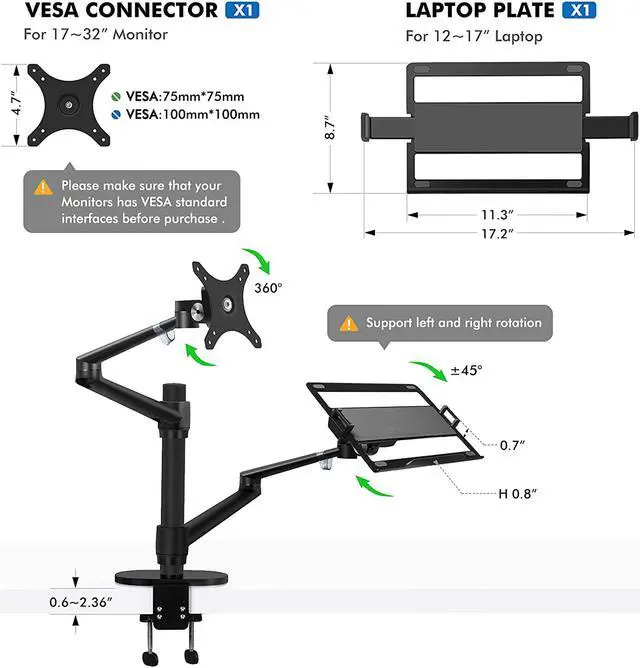

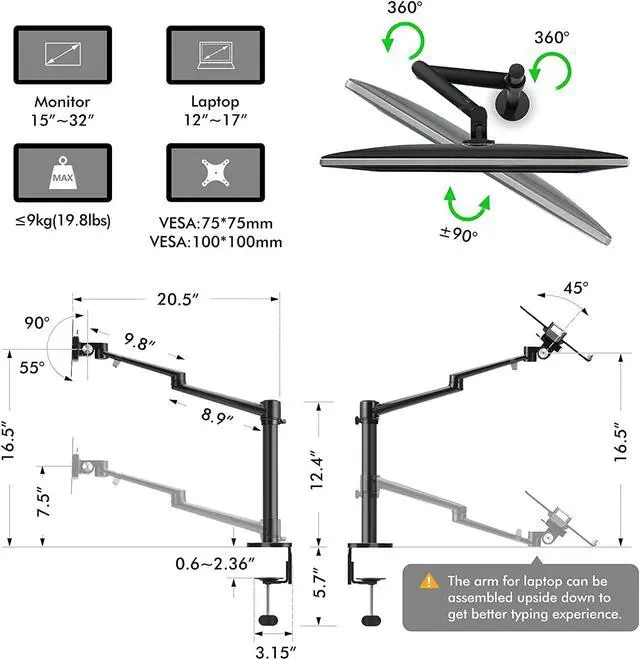

Specifications:

Computer Monitor

Fits Screen size: 17" to 32"

Height Adjust: 7.5-16.5 inches

Bracket: Rotates 360°, Tilts -55°~ +90°

Weight Capacity: 19.8lbs

VESA : 75x75mm, 100x100mm

Arm length: First arm: 8.9'' , second arm: 9.8''

Adjust the maximum distance horizontally: 20.5''


Laptop tray

Fits laptop size : 12" to 17"

Height Adjust: 0-16.5 inches,

Note: if you want to let the laptop keep low height, All you need to do is reverse mount the arm connector, and careful for your table or desk face

Bracket: Rotates 360° , Tilts 45°


HIGHLY COMPATIBILITY WITH C CLAMP

1.The thickness range of the table using the standard c clamp mounting method is 0.6 "-2.36".

2.If your desktop is thicker than 2.36 ", you can modify the hole position of the clip , the maximum MATCH desktop thickness under 2.76 "

3.Edge vertical deep should be more deeper from inside clamp to outside clamp than 3.15''

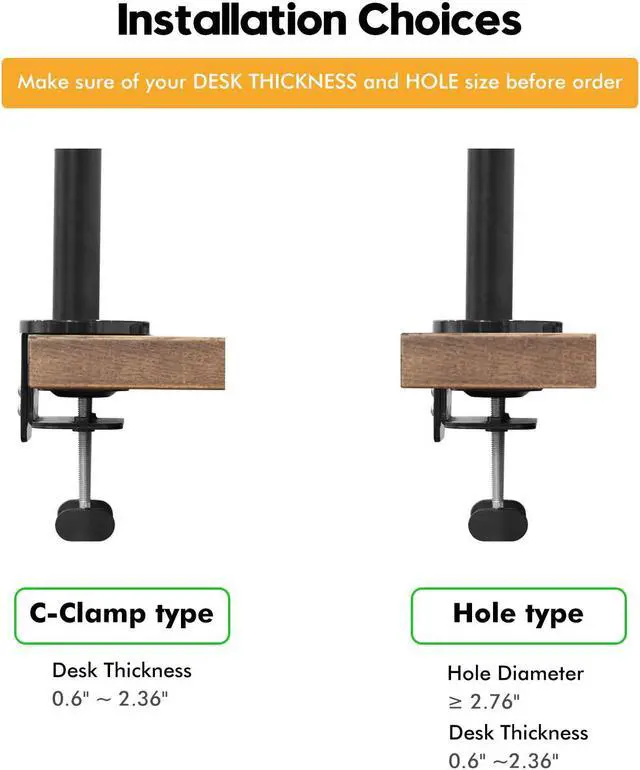

Two installation methods

Multi-range clip-on type: requires a desk with a standard thickness of (0.6"-2.36")1.5cm-6cm

if you want to match more thicker desktop, You can modify the clip hole position to reach 2.76''

Hole type: requires a hole diameter =(2.76")7cm
