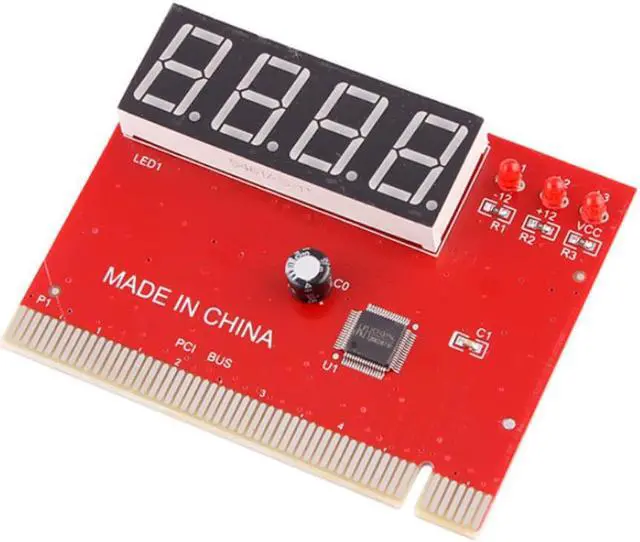

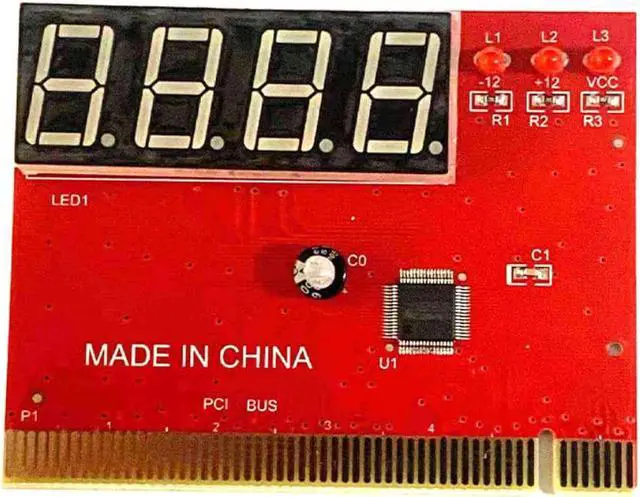

PC 4 Digit Digital LED Indicator Display PCI Card Motherboard Diagnostic Analyzer Tester Diy Electronic PCB Board Module

Model Number:LQM0013
Origin:Mainland China

100% new and high quality
It is used to test motherboard problems
It is fit for desktop with PCI to which POST codes is output.
8 LED indication, easy to read LED Display on the Display, LED displays shows diagnosis result of motherboard.
Diagnosis the motherboard signal which show the problem of CPU, Memory, display card and so on
The POST code display is made up of a dual, dot matrix hexadecimal read-out that display's Power On Self Test (POST) status codes
Support the power source working indicator -- +5V,+12V,+3.3V and 12V(When indicator LED is on to indicate its respective power is fine, otherwise to indicate its respective power is failure.)
Help you remove the most headachy fault which sometimes normal but sometimes wrong

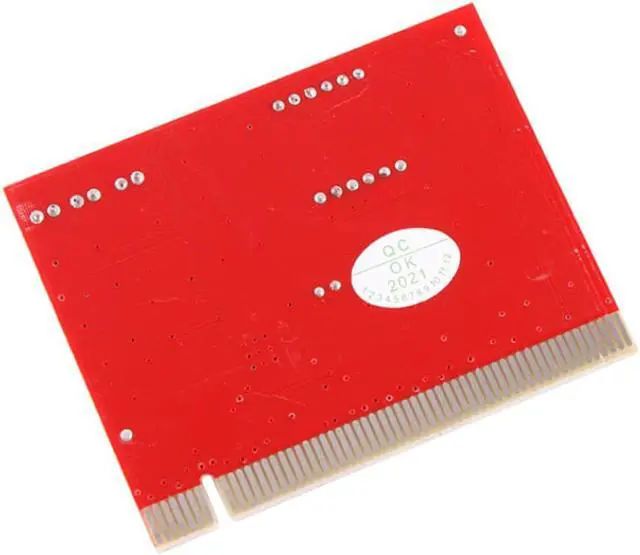

Dual POST code display - User can readout the POST at PCB component and solder side. It is easy to view the
POST code when user plugs the POST card in computer system
Easy and quick to install, four-bit code is displayed
The value of four-bit-code PC Analyzer's "initiative code" is specified and it is "0000" or "FFFF"." initiative code" is clear at a glance. While the value of conventional two-bit-code PC Analyzer's "initiative code" is uncertain and man is unable to distinguish accurately by unaided eye
Extra cable LED will be convenient for user to observe the code when the PC diagnostic card is insert in the narrow PC case
Dimension:80 x 58mm(LxW)
Package Included:
1 X PC 4 Digit Diagnostic Analyzer Card Motherboard Tester
