YEPLOOK GPU Power Cable PCI-e 8Pin 6+2 for Seasonic CORE GC-650/GC-550/GC-500, GM-650/GM-550/GM-500, GX-650/GX-550/GX-500 Modular Powers

YEPLOOK GPU Power Cable PCI-e 8Pin 6+2 for Seasonic CORE GC-650/GC-550/GC-500, GM-650/GM-550/GM-500, GX-650/GX-550/GX-500 Modular Powers, 18AWG Tinned Copper Wire, 60CM/ 23.6 in. / 1.97 ft.

Description

Length: about 60 CM / 23.62 inch / 1.97 ft. (Ideal length to keep pc case tidy. )

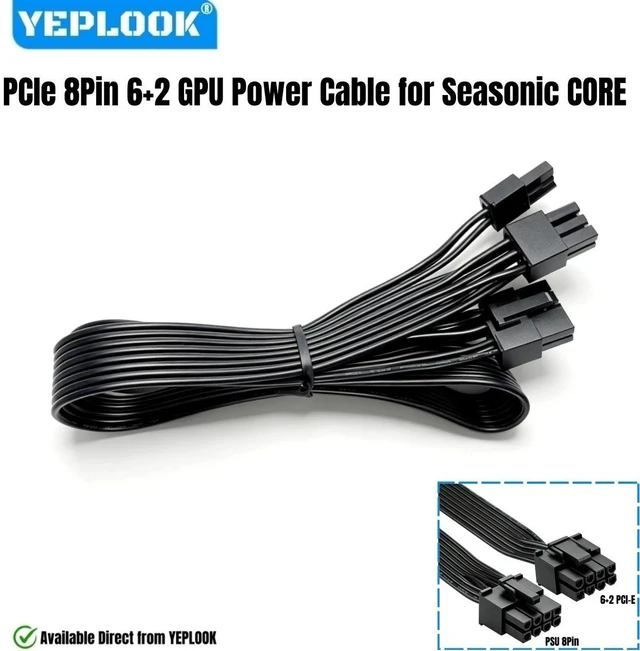

Interface: PSU 8Pin to PCI-E Single 8Pin (6+2)
Features: made of 18AWG standard tinned copper wire. Flexible ribbon flat cable, easy to bend with good cable management.

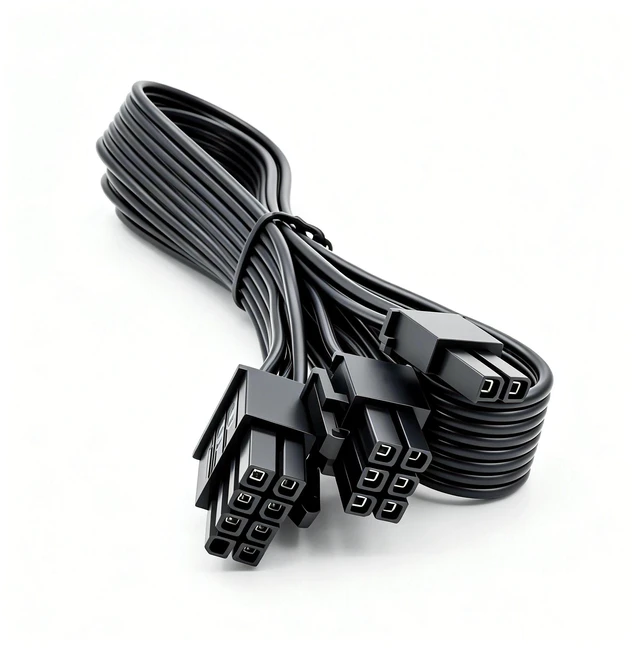

Installation: This GPU Power Cable PCIe 8Pin comes as "6+2" connector, allowing it to fit into GPU cards with 6Pin and 8Pin by sliding on/off the 2pin. Compatible with GPU cards that has 6pin or 8pin power socket.
Package List: 1x PCIe 8Pin 6+2 GPU Power Cable for Seasonic CORE All Series Modular Powers.

This PCIe 8Pin Cable is Compatible with Seasonic CORE Series Modular Powers Below:

Compatible with Seasonic CORE GC Series 80+
Gold Semi-Modular Powers:
Model: CORE GC-650, SSR-650LC
Model: CORE GC-550, SSR-550LC
Model: CORE GC-500, SSR-500LC

Compatible with Seasonic CORE GM Series 80+
Gold Semi-Modular Powers:
Model: CORE GM-650, SSR-650LM
Model: CORE GM-550, SSR-550LM
Model: CORE GM-500, SSR-500LM

Compatible with Seasonic CORE GX Series 80+
Gold Full-Modular Powers:
Model: CORE GX-650, SSR-650LX
Model: CORE GX-550, SSR-550LX
Model: CORE GX-500, SSR-500LX

Mix use power cables between different brands and models may cause damage. Please check compatibility with us to ensure proper installation and operation.

* Not Compatible with modulars of other brands and models.

* Not Compatible with Seasonic Old Versions of
Modular Powers Below:
* Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
* Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
* Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Questions

Q 1: Why is its [PSU] interface only 7Pin?
A 1: PSU 8Pin has a double wired pin, so there is an empty hole. Because GPU card power supply only needs 3-Pins 12V signals. The other 5-Pins are GND signals.

Q 2: Can I use it power for CPU?
A 2: No, although the CPU interface in the power panel is shared with the PCIE interface. The PCIE 8Pin connector pinout differs and has a different latch position. It is distinct from the 8-Pin EPS/CPU connector.
