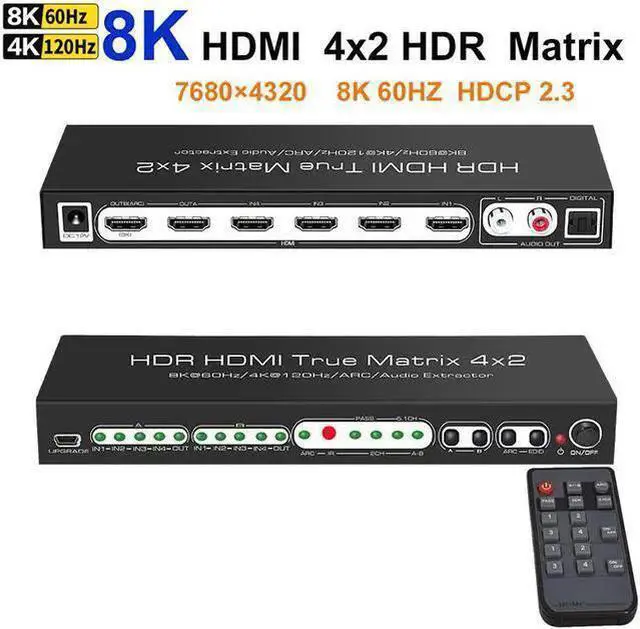

8K HDMI 2.1 Ture Matrix Switch 4x2, 4 in 2 Out HDMI2.1 Matrix HDMI Video Switcher Splitter + Optical & RAC Audio Output, Support 8K @60Hz 4K@120Hz HDR10 ARC HDCP2.3 with IR Remote Control

Item #: 9SIVTT5M1W4797
Mfr. Part #: R05#Q1811_B

Be the first to review this product...

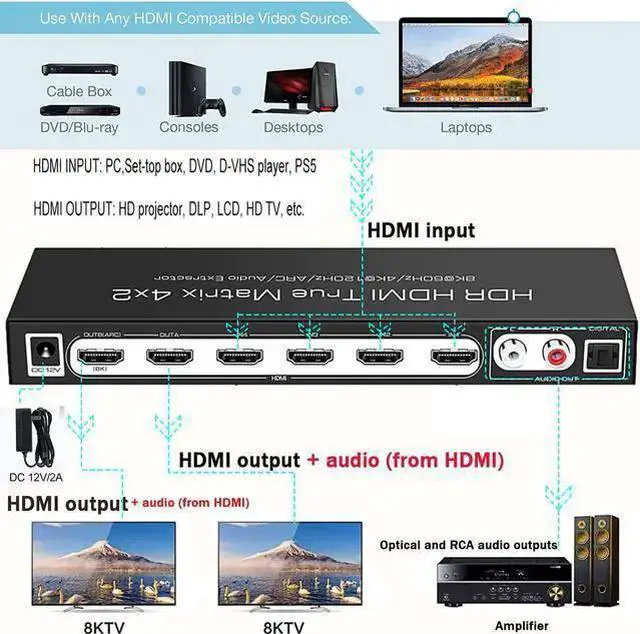

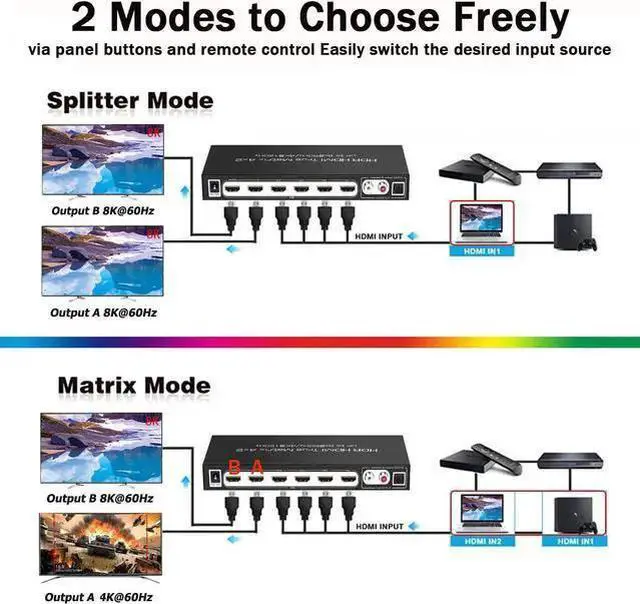

8K HDR HDMI True Matrix switcher switching any one of the four HDMI inputs to either one of the two outputs easily by remote control or buttons on the product panel
Supports HDMI 2.1 version, resolution up to 4k 120HZ and supports Dolby vision & HDR. Compatible with lower HDMI version also
With audio extractor. Extract audio from HDMI outputs and output to optical audio and L/R audio

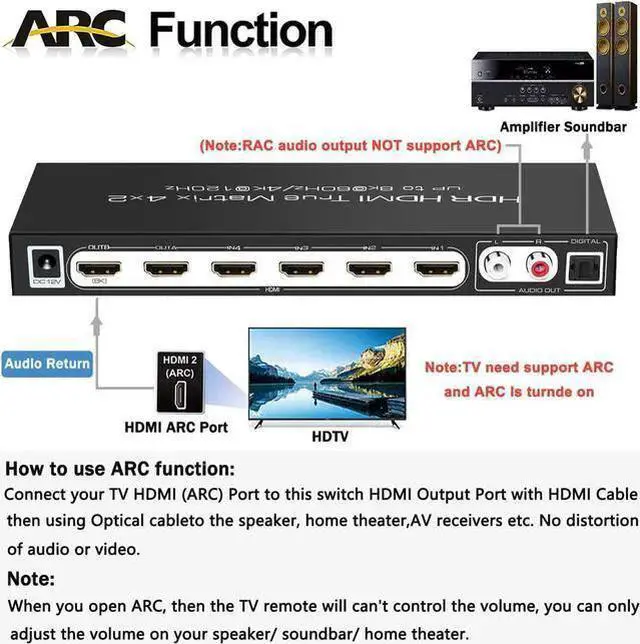

Supports ARC. Return TVs audio to optical audio port where the TVs HDMI ports is ARC enabled
Use premium 8K HDMI cables only, and if you do not get the perfect quality, please use shorter cables
Supports audio independent EDID: choices for 5.1ch, 2.1ch and pass

Overview

Specs

Reviews

Product parameters:
Model name: 8K HDR HDMI True Matrix 4x2
Input ports: HDMIX4
Output ports: HDMIX2; RCAX2, Optical X1
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz, Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1200MHz Max.
Transmission rate: 40 Gbps Max.
Input cable length: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
Output cable length: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 12m
Size: 250x75x30 (mm)
Weight: 440g

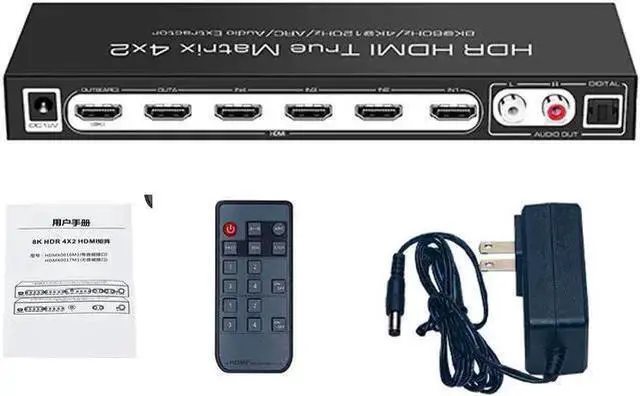

Package included:
1 x HDMI Matrix
1 x Power Adapter
1 x Remote Control
1 x English manual

Details
Color	Black
Ports	4x2 Matrix
