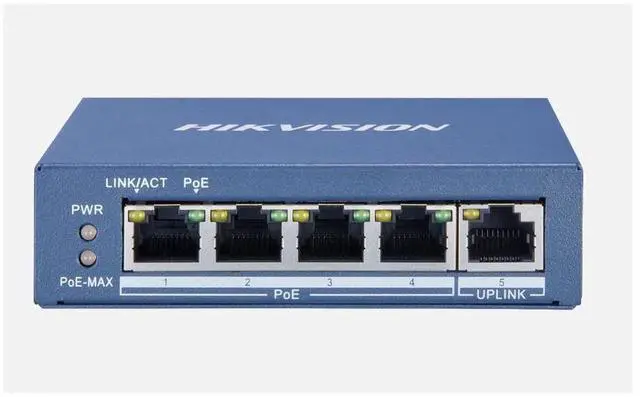

DS-3E0505P-E 4-PORTS UNMANAGED GIGABIT PoE SWITCH

Network Parameters

Ports: 4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port

Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive

Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Forwarding Mode: Store-and-forward switching

MAC Address Table: 2 K

Switching Capacity: 10 Gbps

Packet Forwarding Rate: 7.44 Mpps

Internal Cache: 1 Mbits


PoE Power Supply

PoE Standard: IEEE 802.3af, IEEE 802.3at

PoE Power Pin : End-span: 1/2(-), 3/6(+)

PoE Port: Ports 1 to 4

Max. Port Power: 30 W

PoE Power Budget: 60 W


General

Dimensions (W × H × D): 105 mm × 27.6 mm × 83.1 mm (4.1 × 1.1 × 3.3)

Shell: Metal material, fan-free design

Gross Weight: 0.84 kg (1.85 lb)

Net Weight: 0.26 kg (0.57 lb)

Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity: 5% to 95% (no condensation)

Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)

Storage Humidity: 5% to 95% (no condensation)

Power Supply: 48 VDC, 1.35 A

Power Consumption in Idle: 5 W

Max. Power Consumption: 65 W



Approval

EMC:

FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020,
EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014,
EN 55035:2017+A11:2020); IC (ICES-003: Issue 10)

Safety: UL (UL 62368-1); CB(IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2020)

Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2009)
