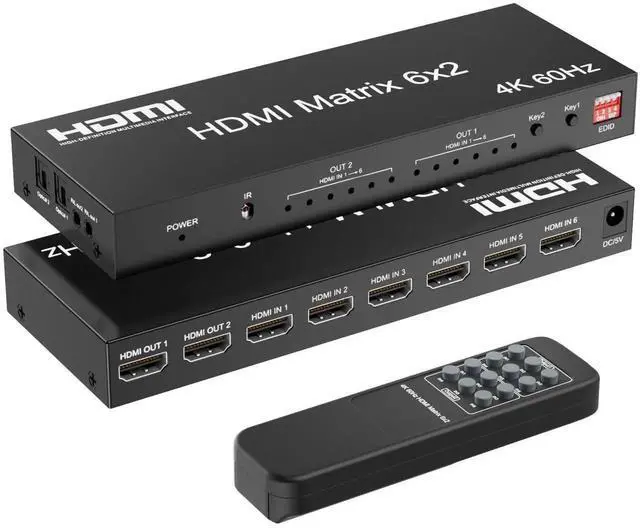

6x2 HDMI 2.0 Matrix Switch Splitter, 6 in 2 Out HDMI Matrix Switcher Selector Supports 4K@60Hz 18Gbps UHD HDR HDCP 2.2, with Remote Control & Optical SPDIF 3.5mm Audio Extractor, EDID Management

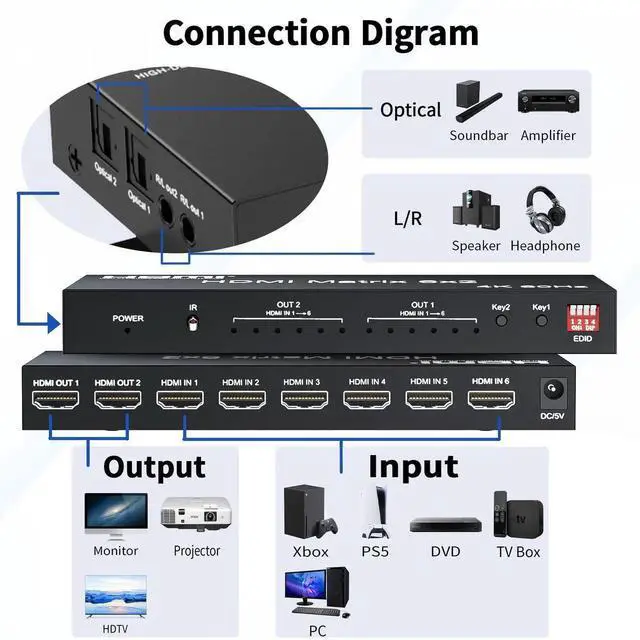

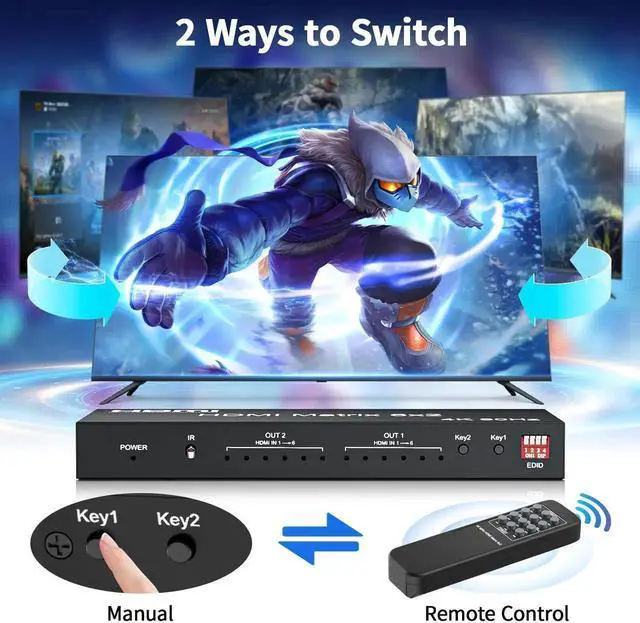

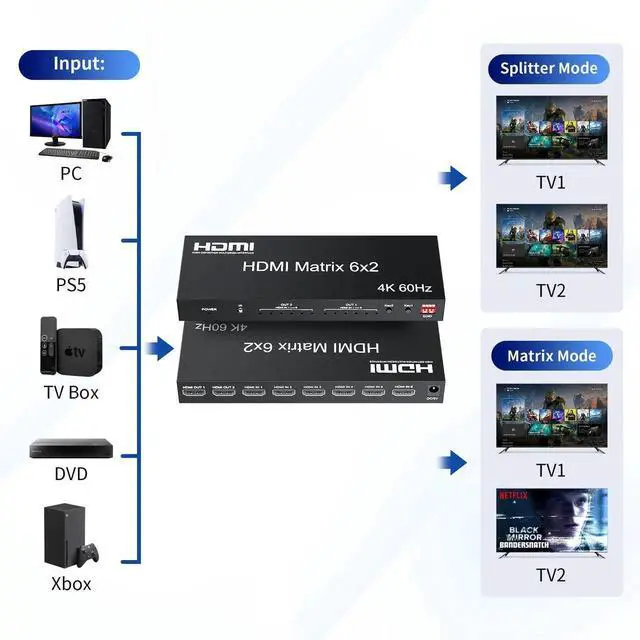

- HDMI Matrix 6X2: LUKFOCAB HDMI matrix switch can distribute up to 6 HDMI input signals to 2 HDMI output monitors or projectors. Convenient remote control allows to select any inputs on any output displays. Any output port can realize independent output through optical fiber or stereo headphones
- 4K High Resolution: The 6-in 2-out HDMI Matrix Switch experiences seamless 4K@60Hz resolution, boasting an impressive bandwidth of up to 18 Gbps. Plus, it features EDID management, supports HDR and Dolby Vision, it delivery you a stunning visual clarity and color depth
- Audio Extractor: Equipped with 2 optical SPDIF output and 2 analog 3.5mm AUX, support LPCM, Dolby TrueHD, and DTS-HD audio format. It can extracts audio from HDMI sources devices to an external sound system (like: soundbar, amplifier, or surround sound system) for better audio experiencing
+
+
Overview
Specs
Reviews
It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Features
- Support HDMI 2.0 HDCP 2.2
- Support 3D video format
- Support highest resolution up to 4K (3840*2160)@60Hz

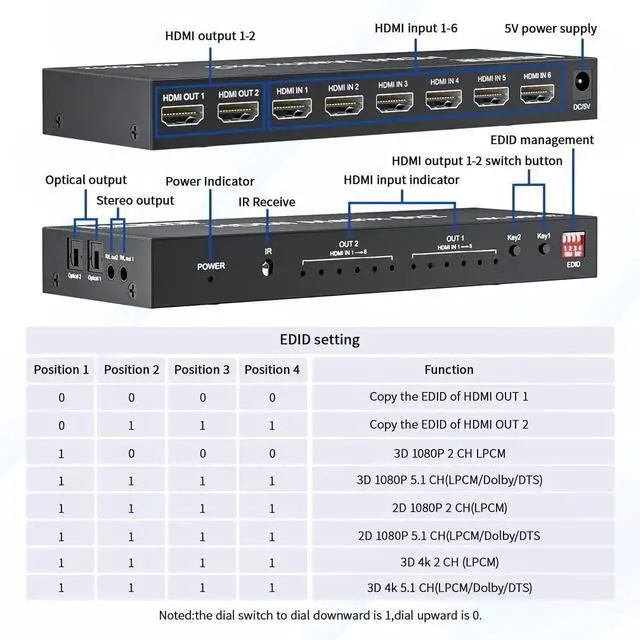

- Supports EDID management and up to 18Gbps bandwidth
- Support extract the audio from output 1 and send it to the digital optical SPDIF and 3.5mm stereo analog audio outputs
Important Note:
1)HDMI 2.0 Video transmission has very high requirements on cables. Pls use HDMI ATC Certified High speed HDMI 2.0 and above cable only
3)A qualified HDMI 2.0 cable shall be of pure copper conductor with proper shielding and all 19 pins wired
4)The HDMI Matrix does not support CEC control
5)When using with HDMI 2.1 source and Display,pls set the resolutions no more than 4K@60Hz manually.Otherwise, there is no signal
