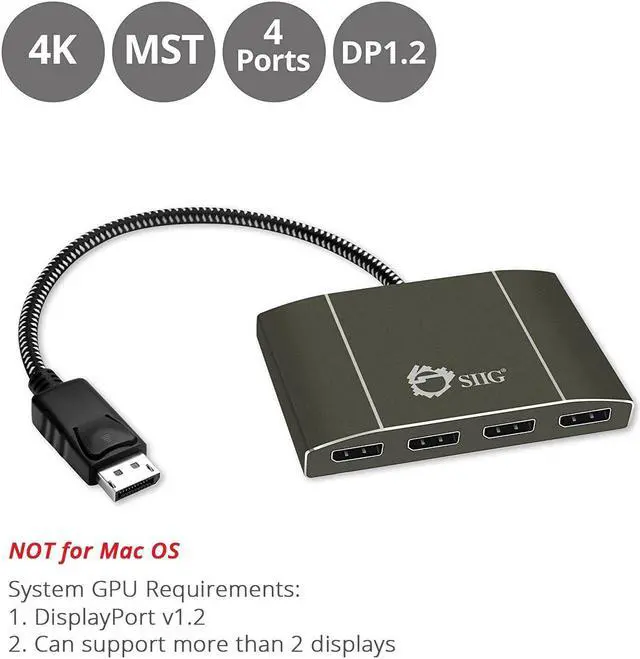

SIIG 4 Port DisplayPort to DisplayPort MST Hub 4k - Muti Monitor Splitter 1x4

SIIG 4 Port DisplayPort to DisplayPort MST Hub 4k - Muti Monitor Splitter 1x4 DESCRIPTION Allows you to easily connect up to 4 DisplayPort monitors from a single DisplayPort 1.2 MST port

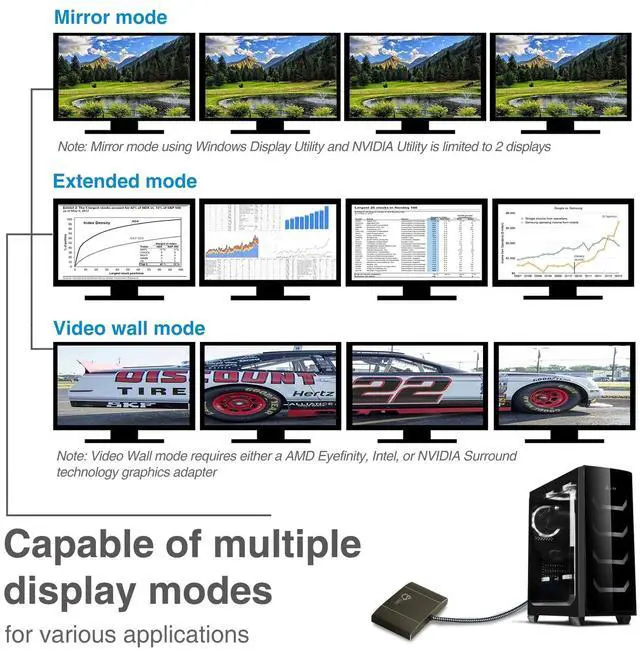

Features: Boost your productivity by connecting four DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode limited to 2 displays; **Panoramic Video Wall mode requires either a AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1 -ch surround audio Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology Plug-n-play, hassle-free set up without complicated hardware or driver installation Premium aluminum housing decreases outside interference and provides optimal video quality Embedded woven braided DisplayPort cable for enhanced durability
Specifications:
Chipset: STDP4320 Maximum resolution up to 3840x2160 @ 30Hz Compliant with DisplayPort 1.2 a specifications
Display Modes: Mirror*, Extend, Panoramic video wall**
Note: *Mirror mode limited to 2 displays; **AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter is required to support Panoramic Video Wall mode
Total Bandwidth 21.6G bps (100%): 3840x2160 @30Hz(40%); 2560x1600 @60Hz (38%); 2560x1440 @60Hz (35%); 1920x1200 @60Hz (30%); 1920x1080 @60Hz (22%)
Note: The total combined bandwidth among all connected displays must NOT be exceeded
Product:
Dimensions: 4.14" (L) x 0.67" (H) x 2.60" (W)
Weight: 0.27 lbs
Color: Deep brown
Housing: Aluminum

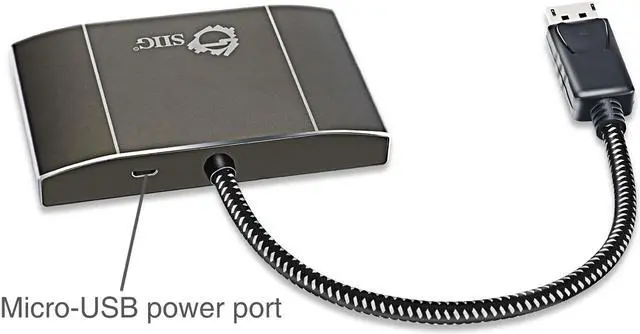

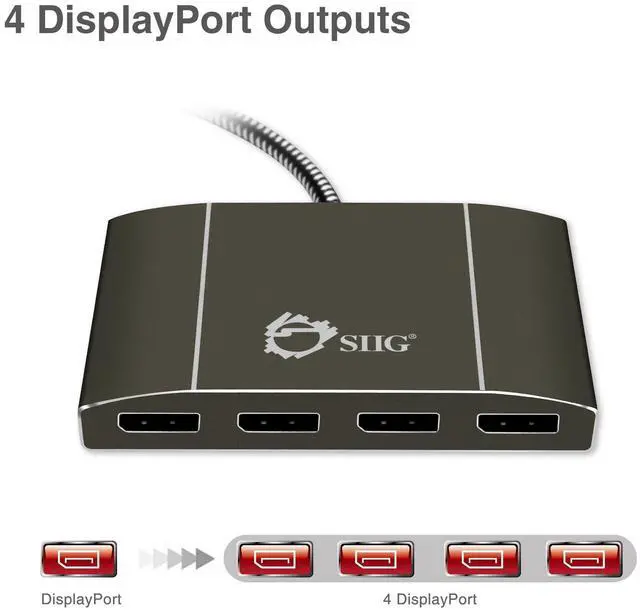

Connector: 1x 20-pin, DisplayPort, Male, Input 4x 20-pin, DisplayPort, Female, Output 1x 5-pin, Micro USB, Female, USB power
Input Environmental conditions: Operating
temperature: 32 to 104 degrees F
Storage temperature: -4 to 158 degrees
F Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
Requirements: Desktop computer or laptop with an available DisplayPort 1.2 Dual mode output AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter is required to support Panoramic Video Wall mode
Package Contents: Displayport 1.2 to 4-Port DisplayPort MST Splitter Micro-USB power cable User Reference Guide
