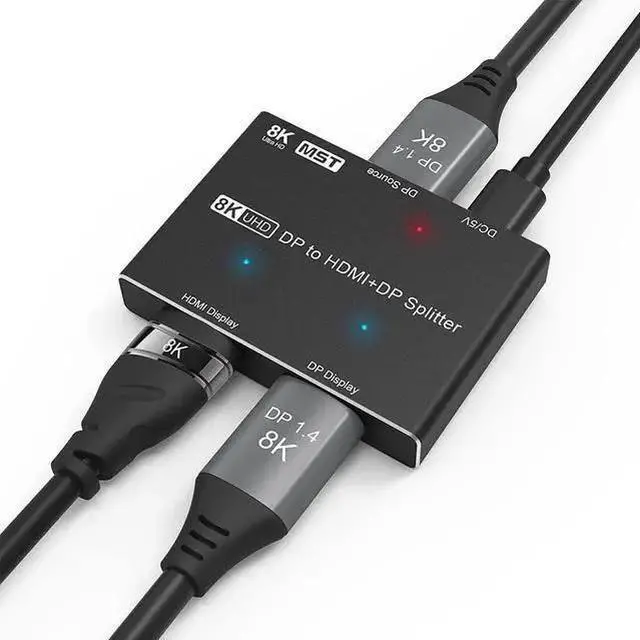

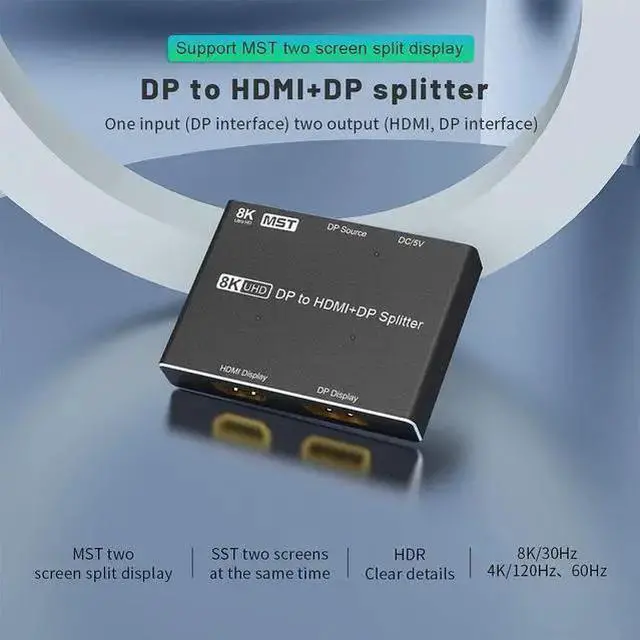

8K DisplayPort to DisplayPort HDMI-Compatible Splitter Adapter MST SST Mode 8K @30Hz 4K @120Hz 1 in 2 Out Directional DP1.4 Splitter Dual Monitor for DP and HD Multi Screen simultaneous displays
- Item #: 9SIVTT5M1W4680
- Mfr. Part #: A01#Q2173_B
- [INTRODUCTION] This super slim DP to DP+HDMI-Compatible splitter is compact and efficient.It allows you to assign a high-definition source to one monitor and one TV at the same time without any signal los. Support 3D and 4K , 8K ultra HD. Support SST and MST.
- [MST Mode]1. In MST extended mode, HDMI-compatible single port output can reach 8K@30Hz, 4K@120Hz. Displayport single port output can reach 8K@30Hz, 4K@144Hz. Displayport and HDMI-compatible 2 ports can only reach 4K@60hz when output at the same time.2. When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI-Compatible output can only reach 4K. 3. MST mode of Ap-p-le system can only extend one screen (limited by iOS System).
- [FEATURES] 1. Compatible with all DP inputs and HDMI-Compatible DP outputs. 2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 3. Support operating system: IOS system, windows system,Android system 4. Support HDR,Support SST (mirror) and MST (Extended) mode, Support 4:4:4, 4:2:2, 4:2:0.
+
+
Overview
Specs
Reviews
FEATURES
1. Compatible with all DP inputs and HDMI-Compatible, DP outputs.
2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.
3.
Support Compatible resolution:
8K@30Hz 4K@144Hz, 120Hz, 60Hz 1440P@165Hz, 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))
4.
Support operating system: IOS system, windows system, Android system
5. Support HDR
6. Support SST (mirror) and MST (Extended) mode
7.
Support 4:4: 4, 4:2: 2, 4:2: 0
SPECIFICATION
Input Port: 1 x DP Female, 1 x USB Micro B Female
Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female
Bandwidth: 32.4G bps
Operating Temperature: -15~55/5°F~131°F
Deep Color: 8bit/10bit/12bit
Chroma:
4:2: 0 / 4:2: 2 / 4:4: 4
Chassis: Aluminium alloy Shell
Dimension: 7.0 mm (L) x 51.7 mm (W) x 13.0 mm (H)
Weight: 83.0 g
PACKAGE CONTENTS
1 x DP to DP+HDMI-Compatible Splitter
1 x USB a to USB micro B cable
1 x User manual
1. Compatible with all DP inputs and HDMI-Compatible, DP outputs.
2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.
3.
Support Compatible resolution:
8K@30Hz 4K@144Hz, 120Hz, 60Hz 1440P@165Hz, 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))
4.
Support operating system: IOS system, windows system, Android system
5. Support HDR
6. Support SST (mirror) and MST (Extended) mode
7.
Support 4:4: 4, 4:2: 2, 4:2: 0
SPECIFICATION
Input Port: 1 x DP Female, 1 x USB Micro B Female
Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female
Bandwidth: 32.4G bps
Operating Temperature: -15~55/5°F~131°F
Deep Color: 8bit/10bit/12bit
Chroma:
4:2: 0 / 4:2: 2 / 4:4: 4
Chassis: Aluminium alloy Shell
Dimension: 7.0 mm (L) x 51.7 mm (W) x 13.0 mm (H)
Weight: 83.0 g
PACKAGE CONTENTS
1 x DP to DP+HDMI-Compatible Splitter
1 x USB a to USB micro B cable
1 x User manual
