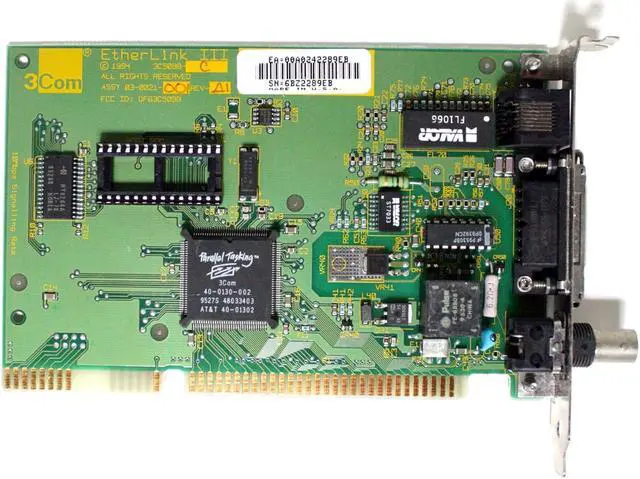

Ethernet ISA, 03-0021-001 A1, (b.7i)

Part Number:3C509B-C

General

Packaged Quantity 1
Device Type Network adapter
Form Factor Plug-in card
Width 2.5 in
Depth 6.1 in
Height 3.9 in
Networking Device Type Network adapter
Interface (Bus) Type ISA
Form factor [Jul 2, 2008 from CDS: Networking] Plug-in card

Networking

Data Link Protocol Ethernet
Connectivity Technology Wired
Data Transfer Rate 10 Mbps
Networking type Network adapter
Status Indicators Link OK
Features Full duplex capability
Compliant Standards IEEE 802.3,
IEEE 802.3i
Cabling Type Ethernet 10Base-2 ,
Ethernet 10Base-T ,
Ethernet 10Base-5

Expansion / Connectivity

Expansion Slot(s) None
Interfaces 1 x Network - Ethernet 10Base-T - RJ-45 - 1,
1 x Network - Ethernet 10Base-2 - BNC - 1,
1 x Network - Ethernet AUI - 15 pin D-Sub (DB-15) - 1
Compatible Slots 1 x ISA - Full-length
Port(s) Total (Free) / Connector Type:Port(s) Total (Free) / Connector Type Port(s) Total (Free) / Connector Type 1 1 Installed Network Ethernet 10Base-T:RJ-45 Female 1,
1 1 Installed Network Ethernet 10Base-2:BNC Female 1,
1 1 Installed Network Ethernet AUI:15 pin D-Sub (DB-15) Female 1
Expansion Slot(s) Total (Free) None

Power

Power Device None
Power Supply / Device None

Software / System Requirements

Software Included Drivers & Utilities
OS Required Microsoft DOS,
SCO OpenServer,
IBM OS/2,
Banyan VINES,
Novell NetWare 3.11 or later,
Microsoft Windows NT 3.51 or later,
Microsoft Windows 3.1 or later
