Produces reliable PoE splitters to add Power over Ethernet support to 5V USB-C devices. PoE splitters save USB adapter wall plugs, extend power line to where your Ethernet cable reaches, and make full use of the extra PoE ports by converting them to 5V USB-C power supply. It's designed for 5V USB-C devices to be powered over Ethernet cables for powerline adaptation or extension. We recommend you use this item with IEEE 802.3af compliant PoE switches or injectors.

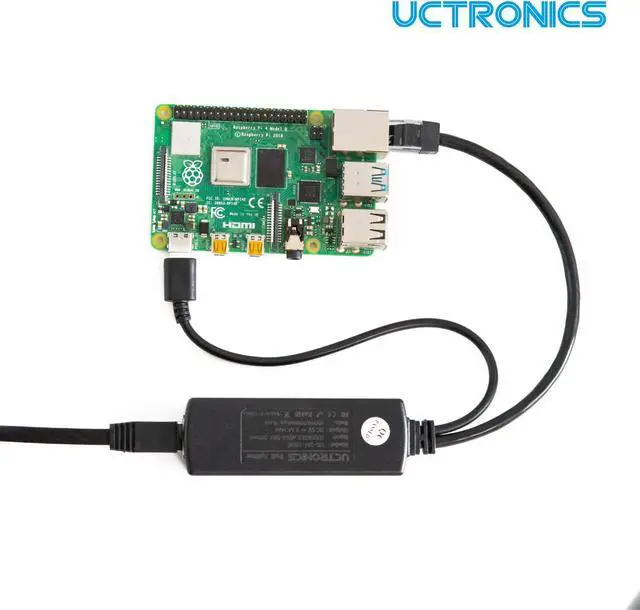

Raspberry Pi 4 PoE HAT alternative
Another way to power your Raspberry Pi 4 over Ethernet where the PoE HAT is not applicable. You can deliver up to 2.4A power if your switch or injector is 802.3af. Check IEEE802.3at (PoE+) switches and adapters(B07V35DH5F) for power-hungry applications.

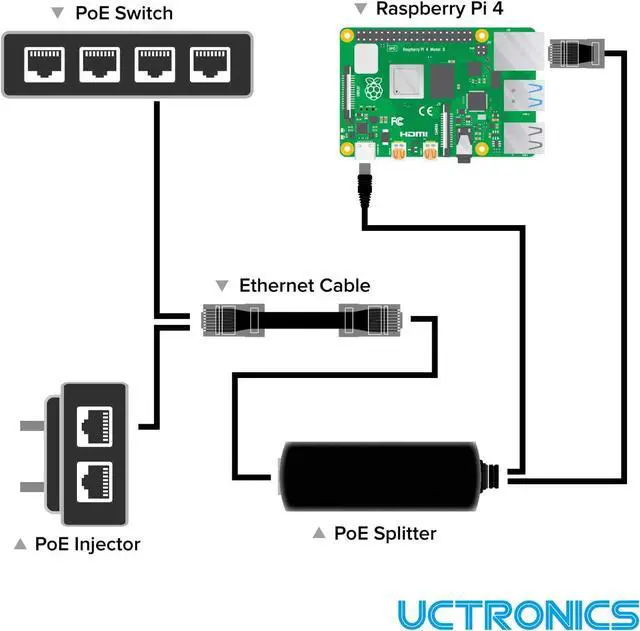

Extend Powerline with Ethernet Cable
PoE helps you deliver power to places where AC outlets are not around with a long Ethernet cable. This PoE splitter can power 5V USB-C devices with a PoE source 300 feet away
Make Full Use of Your PoE Switch
PoE splitters extend the possibilities of PoE switches. The other end of the PoE port does not have to be a 48V PoE network device, and it could be a 5V USB-C devices like a Raspberry Pi 4.
UCTRONICS produces reliable PoE splitters to add Power over Ethernet support to 5V USB-C devices. PoE splitters save USB adapter wall plugs, extend power line to where your Ethernet cable reaches, and make full use of the extra PoE ports by converting them to 5V USB-C power supply. Its designed for 5V USB-C devices to be powered over Ethernet cables for powerline adaptation or extension. We recommend you use this item with IEEE 802.3af compliant PoE switches or injectors.
Specs:
Power Input: 802.3af 44-56V Mode A&B 300mA
Isolation: 2.5KV
Model: UC-3AF-USBC
Power Output: DC 5V 2.4A Max
Safety & Emissions: FC, CE
Data Transfer Rate: 10/100/1000 Mbps
Power Pin: 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Operating Temp.: 0~40(32~104)
Storage Temp.: -40~70(-40~158)
Operating Humidity: 10%~90% RH, Noncondensing
Storage Humidity: 5%~90% RH, Noncondensing
Package Includes:
UCTRONICS 802.3af USB-C Gigabit PoE splitter U6115
An Instruction Manual
Raspberry Pi 4 PoE HAT alternative
Another way to power your Raspberry Pi 4 over Ethernet where the PoE HAT is not applicable. You can deliver up to 2.4A power if your switch or injector is 802.3af. Check IEEE802.3at (PoE+) switches and adapters(B07V35DH5F) for power-hungry applications.
Extend Powerline with Ethernet Cable
PoE helps you deliver power to places where AC outlets are not around with a long Ethernet cable. This PoE splitter can power 5V USB-C devices with a PoE source 300 feet away
Make Full Use of Your PoE Switch
PoE splitters extend the possibilities of PoE switches. The other end of the PoE port does not have to be a 48V PoE network device, and it could be a 5V USB-C devices like a Raspberry Pi 4.
