EDIMAX EW-7811Un V1 Wi-Fi 4 Nano USB Adapter USB 2.0 N150 Wireless Data Rates V1 Version

Edimax 242596 Ac Ew-7811un V1 N150 Wi-fi 4 Nano Usb Adapter Retail
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.

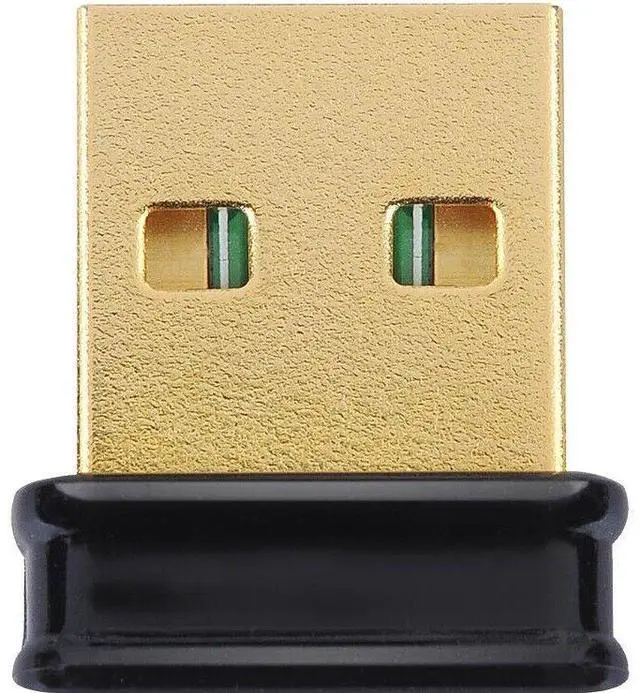

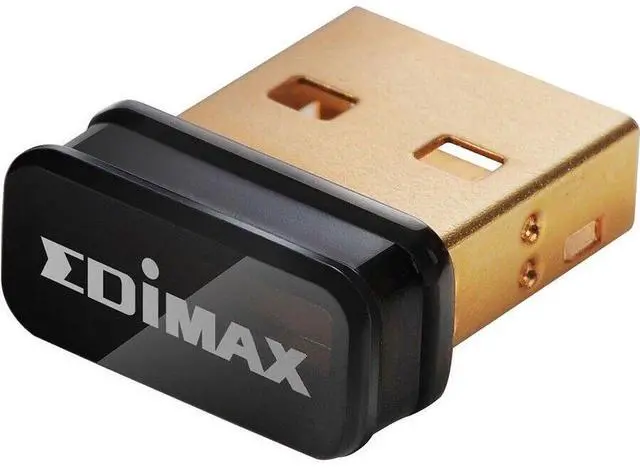

N150 Wi-Fi 4 Nano USB Adapter

EW-7811Un V1

N150: Complies with wireless 802.11 b/g/n standards with data rate up to 150Mbps ( 2.4GH z).

Small,
Stylish Design: Worlds smallest N150 Wi-Fi Adapter.

Secure Wi-Fi: Features 64/128-bit WEP, WPA, WPA2 encryption for high level of security.

One-Click Wireless Connections: Features a software WPS (Wi-Fi Protected Setup) button for easy wireless connections.

Supports 802.11 e WMM wireless QoS Feature.

Supports power saving mechanism.

Supports Windows, MAC OS and Linux.

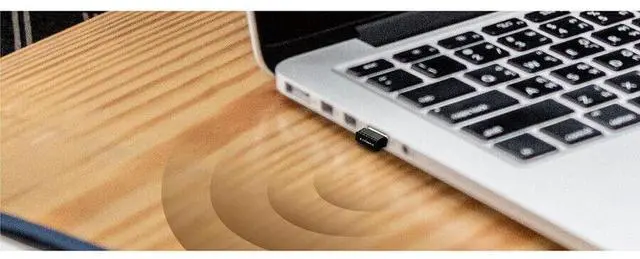

EW-7811Un V1 is a nano USB wireless adapter that supports maximum range and speed. Despite the size, this tiny USB adapter supports higher data rate of up to 150Mbps when connecting with wireless 802.11 n device which is 3 times faster than your normally 11g connection. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access. This is for sure the trendiest piece of upgrade you can make to your wireless network.

Wireless 802.11 n Standard | Up to 150Mbps

EW-7811Un V1 complies with wireless IEEE 802.11 b/g/n standards. Built with the latest wireless technology, the EW-7811Un V1 can increase your wireless coverage up to 3 times* as much and greatly help reduce dead spots compared to your old 11g adapter. Transmission data rate can go up to 150Mbps when connected to a 802.11 n device. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11 g wireless networks.

Green WLAN | Improved Energy Efficiency

The EW-7811Un V1 has adapted a clever protocol. This wireless USB adapter smartly adjusts its power output according to the transmission distance and CPU offload. It drastically reduces power consumption when the connection is in idle. Designed with green WLAN technology, the EW-7811Un V1 power consumption can be reduced with an average of 20% to 50%.
HARDWARE
Interface
1 x USB 2.0 Type A
LED Indicator
1 x Link/Activity LED
Antenna
Internal Antennas x 1 (1T1R) WIRELESS
Standard
2.4GH z: IEEE 802.11 b, 802.11 g, 802.11 n
Frequency Band
2.4000 - 2.4835GH z
Subject to local regulations
Maximum Transmit Power
11b: 17 +/- 1.5 dBm
11g: 16 +/- 1.5 dBm
11n: 13 +/- 1.5 dBm
Maximum Data Speed
11b: 1/2/ 5.5 /11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 72Mbps
11n (40MHz): MCS0-07, up to 150Mbps
Security
WEP 64/128-bit, WPA, WPA2
Software WPS ConfigurationOTHERS
Certification
CE (DoC), FCC, RoHS
Environmental Condition
Operating Temperature: 32-104oF (0-40oC)
Storage Temperature: -4-140oF (-20-60oC)
Operating Humidity: 0-90% (NonCondensing)
Storage Humidity: Max. 95% (NonCondensing)
System Requirement
Windows 7/8/ 8.1 /10 or above
Mac OS 10.13 or above
Linux OS (Fedora and Ubuntu)
Installation
Multi-language easy setup wizard with auto run configuration
Package Content
Quick Installation Guide
Wi-Fi USB AdapterItem Dimension (L"xW"xH")
6 x 4 x 1

Weight
1 lb
