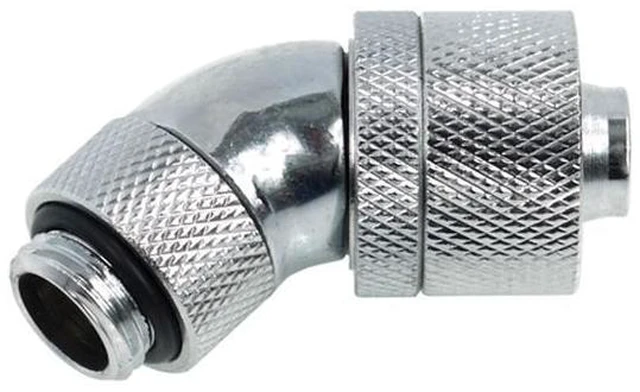

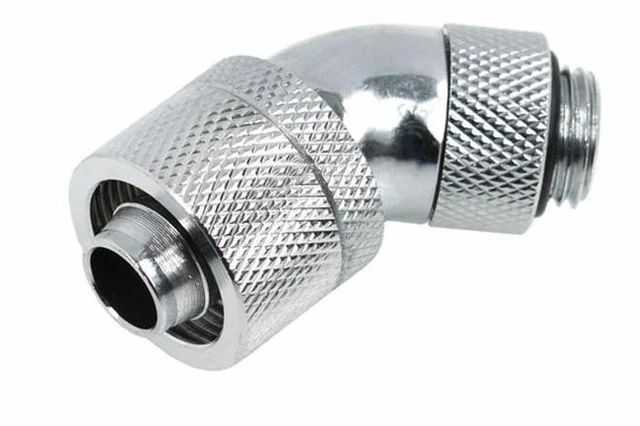

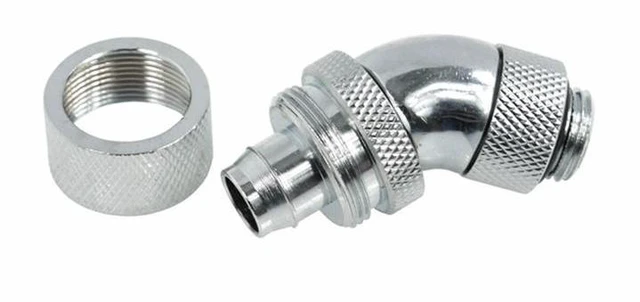

Alphacool G1/4 3/8"ID x 5/8"OD 45° Revolvable Compression Fitting - Chrome (17083)

The Alphacool G1/4 3/8"ID x 5/8"OD 45° Revolvable Compression Fitting - Chrome is a compression fitting with a 45° bend, one fitting per pack. It connects 16/10 mm tubing (3/8" inner and 5/8" outer diameter) to a G1/4 thread and is revolvable, which makes for easy tubing runs in the system. Alphacool lists it as the HF 16/10 screw-on nozzle 45° rotatable, with a G1/4 external thread.

Properties

• Thread: G1/4, external
• Tube size: 16/10 mm
• Angle: 45°, rotatable
• Material: Brass, chromated
• Color: Chrome
• Size: 36 mm length, 20 mm diameter, 40 mm height

High flow and colors

Alphacool says its fittings go new ways in looks, quality of manufacturing, color and choice. Its main claim is an inner diameter that truly deserves the "high flow" attribute. Chrome, Deep Black and Shiny Copper are the first three colors, and Alphacool says they offer something for every taste. The matching product series are designed to look elegant in every system, highlighting the individual design of the computer. In its words the limits are endless when these fittings are used in combination with Alphacool tubing.

Finish

The body is brass. With a new process during chromating, the surface finish is completely connected with it, hence ensuring permanent intense colors and no peeling or flaking of the chrome layer, Alphacool says. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.

What a run needs

A tube run takes two fittings, one at each end. Each screws into a G1/4 port.

Notes

• Alphacool's note on application: use the fitting only with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses.

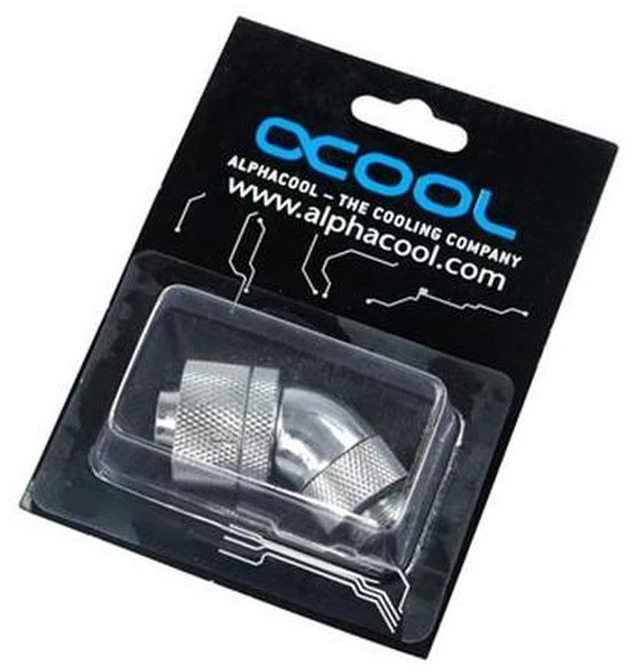

In the box

• 1x Alphacool 3/8" x 5/8" (16/10) Compression Fitting 45° Revolvable G1/4 - Chrome
