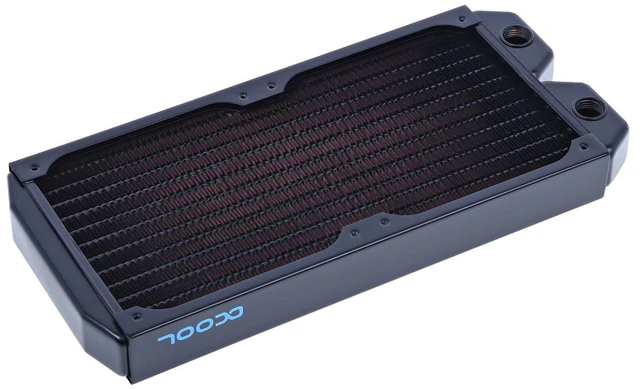

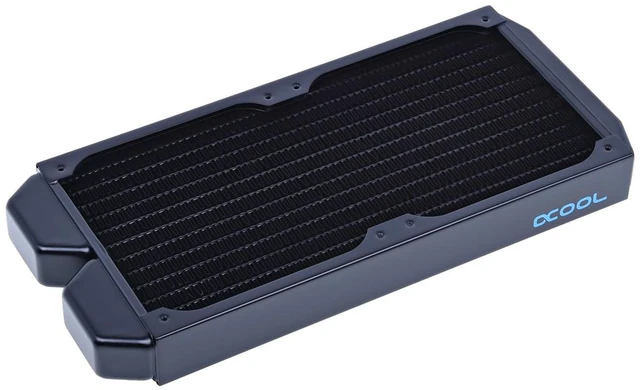

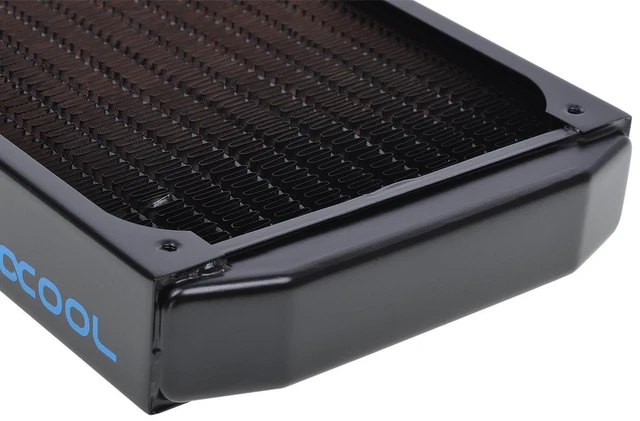

Alphacool NexXxoS ST30 Full Copper 240mm Radiator (14157)

The Alphacool NexXxoS ST30 Full Copper 240mm Radiator is a 240 mm radiator for two 120 mm fans, 30 mm thick, with two G1/4 ports and copper fins, channels and chambers. The next thickness up in the same fan size is the XT45 Full Copper 240mm radiator.

Properties

• Fans: 2x 120 mm
• Size (L x W x H): 278 x 124 x 30 mm
• Thickness: 30 mm
• Ports: 2x G1/4
• Material: copper cooling channels and slats, steel housing
• Fin density: 16 fins per inch

What the loop needs

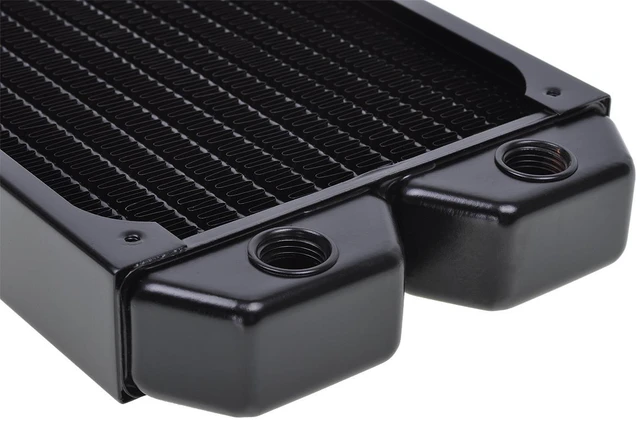

Alphacool's technical data lists 2x G1/4 connections. Both are in use in a loop, so the radiator takes two fittings. It holds two 120 mm fans, and the box has eight M3x30mm and eight M3x35mm hexagon socket screws for them.

Alphacool calls versatility the essence of the new NexXxos series. The radiators are available in different versions to be used with 120mm, 140mm or 180mm fans and in different thicknesses. Alphacool says the choice of 30mm, 45mm and 60mm offers "the perfect radiator for every purpose". Even mounting and installation of fans and radiator grills is described as easy and versatile with these radiators. The M3 threads are standard in the radiator sector, and Alphacool notes that M3 screws are available in all lengths at an affordable price. Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage, Alphacool says. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge which stops the screw before it damages the fins.

Technical data

• Dimensions (L x W x H): 278 x 124 x 30 mm
• Quantity of cooling channels: 12
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Slats: Copper
• Number of fans: 2
• Connection: 2x G1/4
• Fan size: 120 mm
• Housing: Steel
• Manufacturer: Alphacool
• Thickness: 30 mm
• Fins per inch: 16
• Pressure tested: 0.8 bar

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Radiator
• 8x M3x30mm hexagon socket screws
• 8x M3x35mm hexagon socket screws
