Alphacool NexXxoS XT45 Full Copper X-Flow 120mm Radiator (14232)

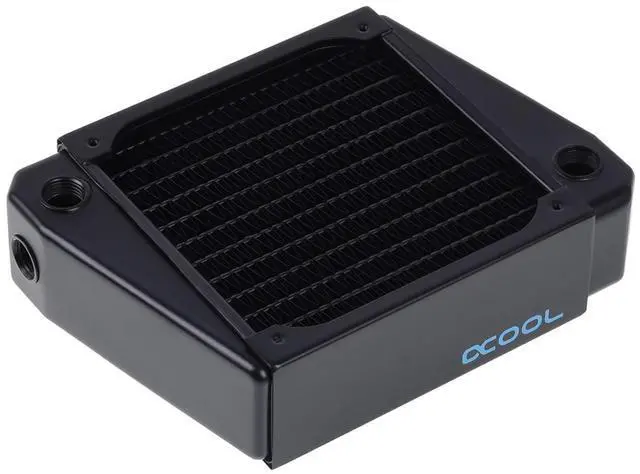

The Alphacool NexXxoS XT45 Full Copper X-Flow 120mm Radiator is a 120 mm radiator for one 120 mm fan, 45 mm thick. It is the X-Flow type: the water enters the copper chamber on one side and leaves from the chamber on the other. It measures 172 x 124 x 45 mm and has six G1/4 connections and M3 fan threads.

Properties

• Fans: 1x 120 mm, M3 fan thread
• Size (L x W x H): 172 x 124 x 45 mm
• Thickness: 45 mm
• Ports: 6x G1/4
• Material: Copper cooling channels and slats, steel housing
• Fins per inch: 16

Full copper

Alphacool calls the new NexXxoS radiators the first to truly deserve the "Full copper" attribute. Not only the fins and channels are copper but the chambers also, so all main parts are made from it. Alphacool says this brings an improvement in performance where other radiators are left without a chance.

X-Flow

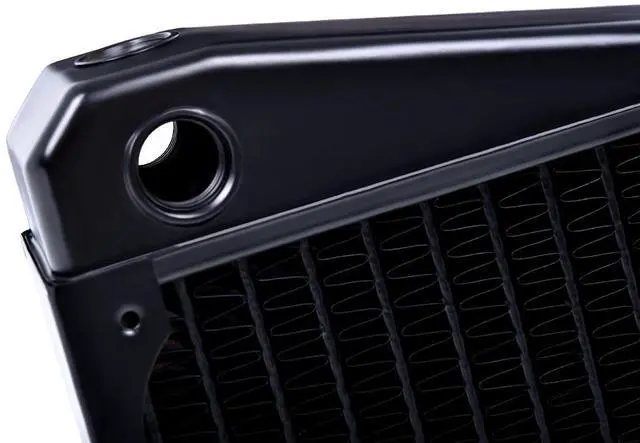

In structure the X-Flow Radiators differentiate materially from the standard radiators, and Alphacool says they are designed for high flow rates. A beveled copper chamber sits on each of the two sides, and both have an identical structure. Water jetting in at one chamber runs through all available channels at the same time to the other chamber, which is where it then leaves the radiator.

Connections and mounting

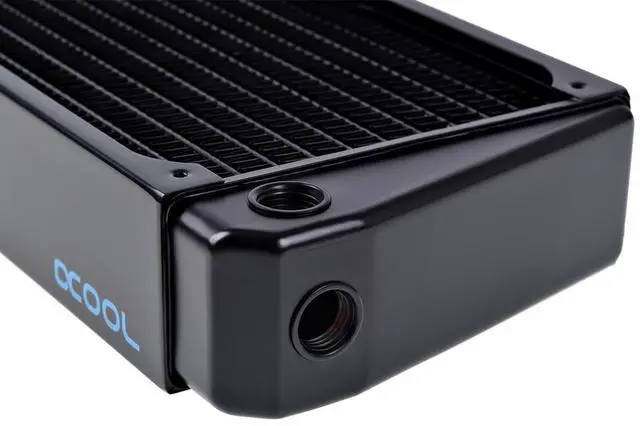

Versatile and easy mounting is one of the main points on which the research and development department at Alphacool focused. On inlet and outlet alike, the chamber offers three possibilities for fitting installation, which is not the case on the NexXxoS ST30. With that choice less angled fittings are needed, improving flow rates and offering more mounting possibilities. This radiator has six G1/4 connections in all.

What the loop needs

Two of the six G1/4 connections are used, one as inlet and one as outlet, so the radiator takes two fittings. It holds one 120 mm fan, and mounting hardware is in the box.

The thinner radiator in this fan size and type is the NexXxoS ST30 Full Copper X-Flow 120mm Radiator.

Technical data

• Dimensions (L x W x H): 172 x 124 x 45 mm
• Quantity of cooling channels: 24
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Connection: 6x G1/4
• Slats: Copper
• Thickness: 39 - 49 mm
• Number of fans: 1
• Fan size: 120 mm
• Housing: Steel
• Pressure tested: 0.8 bar
• Manufacturer: Alphacool
• Fins per inch: 16

Notes

• Alphacool's note on application: use the radiator only in conjunction with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. Alphacool adds that this can result in voiding the manufacturer's warranty as well.

In the box

• 1x Radiator
• 4x screw plugs
• Mounting Hardware
