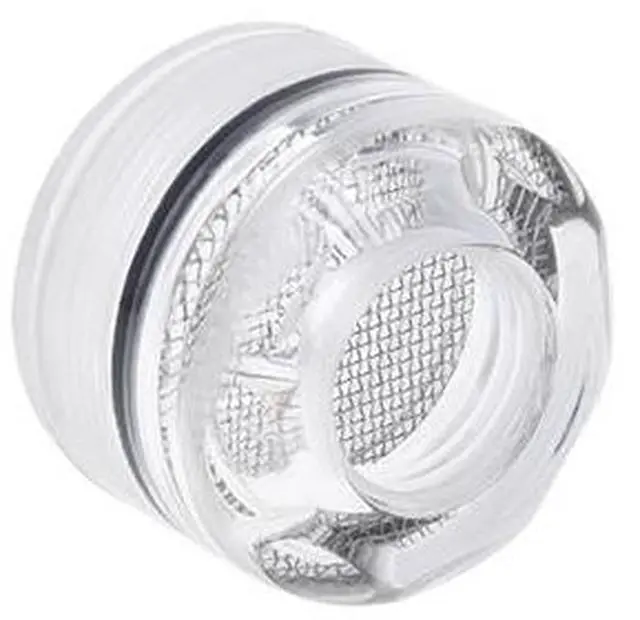

Alphacool Eiszapfen Filter G1/4 Inner Thread - Plexi (29121)

The Alphacool Eiszapfen Filter G1/4 Inner Thread - Plexi is an inline filter for a water cooling loop with a G1/4 inner thread on each end, one filter per pack. The clear body is acrylic and measures 20 x 25 mm.

Properties

• Thread: 2x G1/4 inner thread
• Size (L x D): 20 x 25 mm
• Material: Acrylic (plexi)
• Filter: Stainless steel fiber microfilter
• Pieces in the pack: 1

What it protects

Alphacool calls this filter ideal for water cooling systems with microstructure coolers. It prevents those coolers from becoming clogged, which matters since these coolers are often difficult to clean manually due to their small size.

Flow rate

Alphacool's Eiszapfen series is, in its maker's words, forward-looking, and distinguishes itself through its exceptional design and high flow rate. The filter is constructed so that resistance through the mesh, the filter screen, is minimal. It puts the flow rate of the filter around 50% higher than a tube with an 8 mm inner diameter, and around 30% higher than a tube with a 10 mm inner diameter. This makes it Alphacool's choice for high-flow systems. Once the filter is more than 30% to 50% clogged, depending on the inner tube diameter, a reduction in flow rate does kick in, and only then.

What the loop needs

Both ends are G1/4 inner threads, so the filter takes two fittings with a G1/4 outer thread, one on each side. Alphacool makes it in three colors: chrome, deep black and acrylic.

Technical specifications

• Dimensions (LxD): 20 x 25 mm
• Material: acrylic
• Filter: stainless steel fiber microfilter
• Flow rate reduction only after very clogged: 30% to 50%
• Connector thread: 2x G1/4 inch

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Eiszapfen filter G1/4 inner thread - Acrylic
