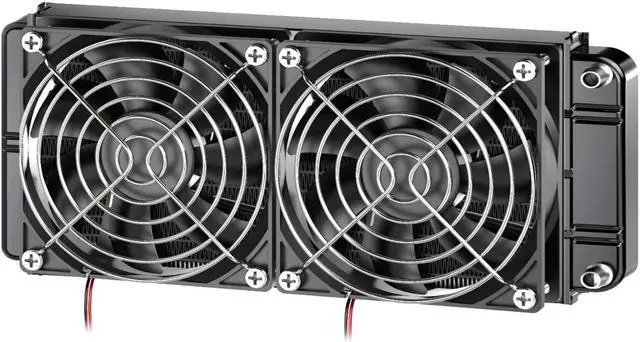

Water Cooling Radiator, 12 Pipe Aluminum Heat Exchanger Cooling Water Drain Row with Fan Radiator for Computer CPU CO2 Laser Water Cool System
- Item #: 9SIVB0EH6N3526
- Mfr. Part #: 3690789
- UNSPSC: 43201538
- Product Name: Water Cooling Radiator; Size: 275 x 120 x 58mm/ 10.8'' x 4.7'' x 2.28''(L*W*H).Tube Quantity: 12; Fit ID Tube Inner Diameter: 8 -12mm / 0.3" - 0.5".Made of pure aluminum heat sink, it has good heat dissipation performance. Black oxidized lacquer improves thermal efficiency.High speed fan configuration, 12V safe voltage with high security standards and ensure the safety of the fan.Applicable to computer CPU, industrial variable frequency drives, VGA water cooling ,laser head cooling, and air conditioning evaporator.
+
+
Overview
Specs
Reviews
Product Specifications: -
Fin density: 18 lines per inch-
Color: Black-
Type: Water Cooling;
Material: Aluminum-
Mouth: 9.5 (D) mm;
Model Number: 240mm- Longer
Screw Size: 31 x 3 mm / 1.2 '' x 0.12 '' (L*D) -

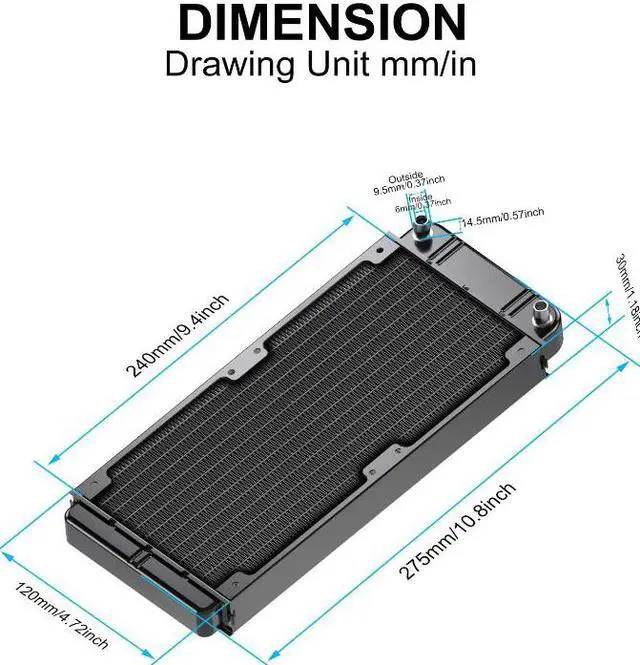

Size: 275 x 120 x 58mm / 10.8 '' x 4.7 '' x 2.28 '' (L*W*H) -
Tube Quantity: 12;
Fit ID Tube Inner Diameter: 8 -12mm / 0.3 '' - 0.5 ''- Fit ID Tube
Outer Diameter: 9.5 mm / 0.37 ''; Shorter
Screw Size: 7 x 3 mm / 0.3 '' x 0.12 '' (L*D)

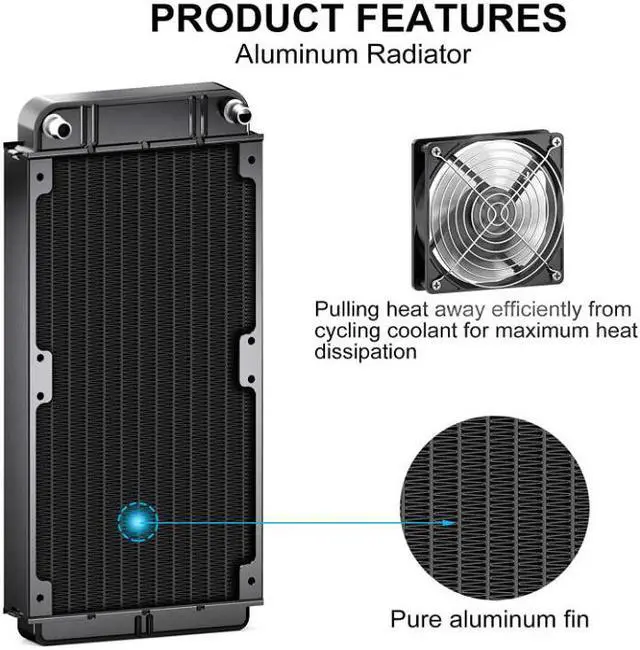

Product Features: - Pure aluminum fins- Parts brazing seal as a whole-
Surface treatment: Dark paint-
Joint: disposable stainless steel-band-
The sealing process: vacuum aluminum brazing-
Item Type: Computer Radiator Water Cooling
Cooler;
Material: Metal- Can be installed 120mm fan, mounting

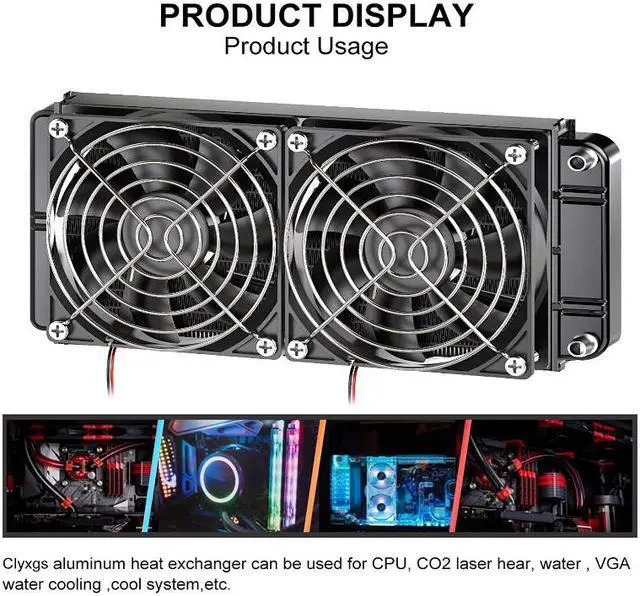

hole size: 109.5 (D) × 109.5 (W) mm?Optimized for high performance at low cost, No weak welds nor leakage. ?Suitable for computer CPU cooling, industrial frequency conversion driver, laser head cooling, air conditioning evaporator and industrial control cabinet cooling.

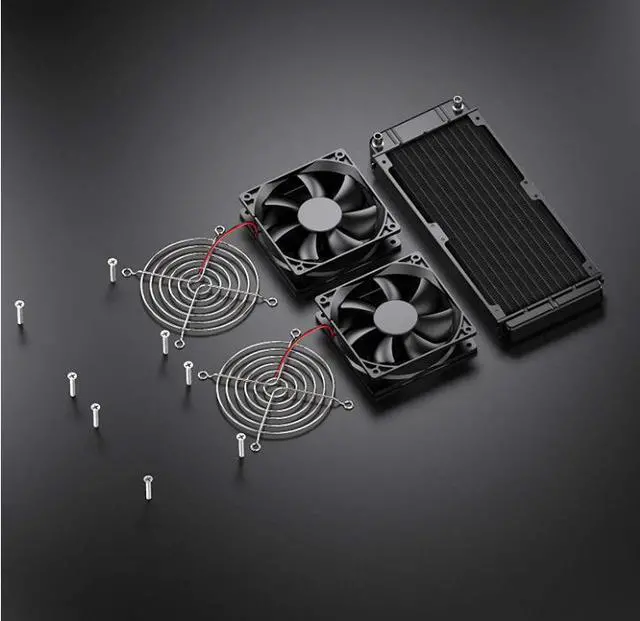

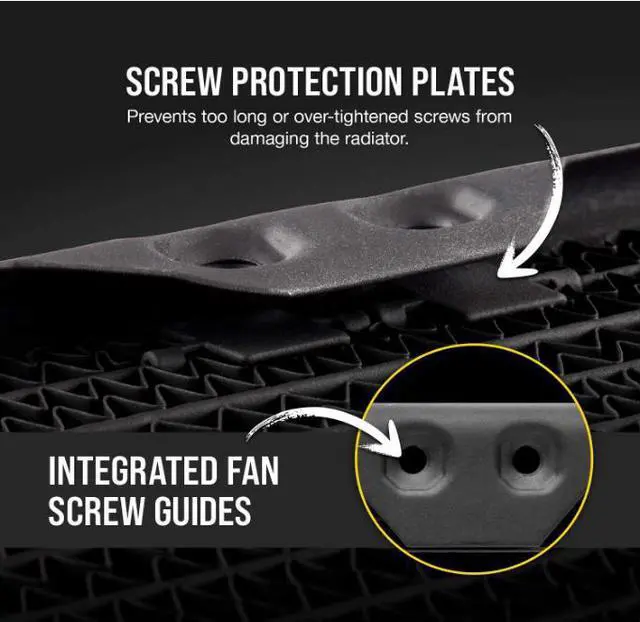

Package Included: 1 x Aluminum Heat Exchanger High speed fanNOTE: Screw holes below is channel pipe, so make sure not to use long screw, will top leaking.
Fin density: 18 lines per inch-
Color: Black-
Type: Water Cooling;
Material: Aluminum-
Mouth: 9.5 (D) mm;
Model Number: 240mm- Longer
Screw Size: 31 x 3 mm / 1.2 '' x 0.12 '' (L*D) -
Size: 275 x 120 x 58mm / 10.8 '' x 4.7 '' x 2.28 '' (L*W*H) -
Tube Quantity: 12;
Fit ID Tube Inner Diameter: 8 -12mm / 0.3 '' - 0.5 ''- Fit ID Tube
Outer Diameter: 9.5 mm / 0.37 ''; Shorter
Screw Size: 7 x 3 mm / 0.3 '' x 0.12 '' (L*D)
Product Features: - Pure aluminum fins- Parts brazing seal as a whole-
Surface treatment: Dark paint-
Joint: disposable stainless steel-band-
The sealing process: vacuum aluminum brazing-
Item Type: Computer Radiator Water Cooling
Cooler;
Material: Metal- Can be installed 120mm fan, mounting
hole size: 109.5 (D) × 109.5 (W) mm?Optimized for high performance at low cost, No weak welds nor leakage. ?Suitable for computer CPU cooling, industrial frequency conversion driver, laser head cooling, air conditioning evaporator and industrial control cabinet cooling.
Package Included: 1 x Aluminum Heat Exchanger High speed fanNOTE: Screw holes below is channel pipe, so make sure not to use long screw, will top leaking.
