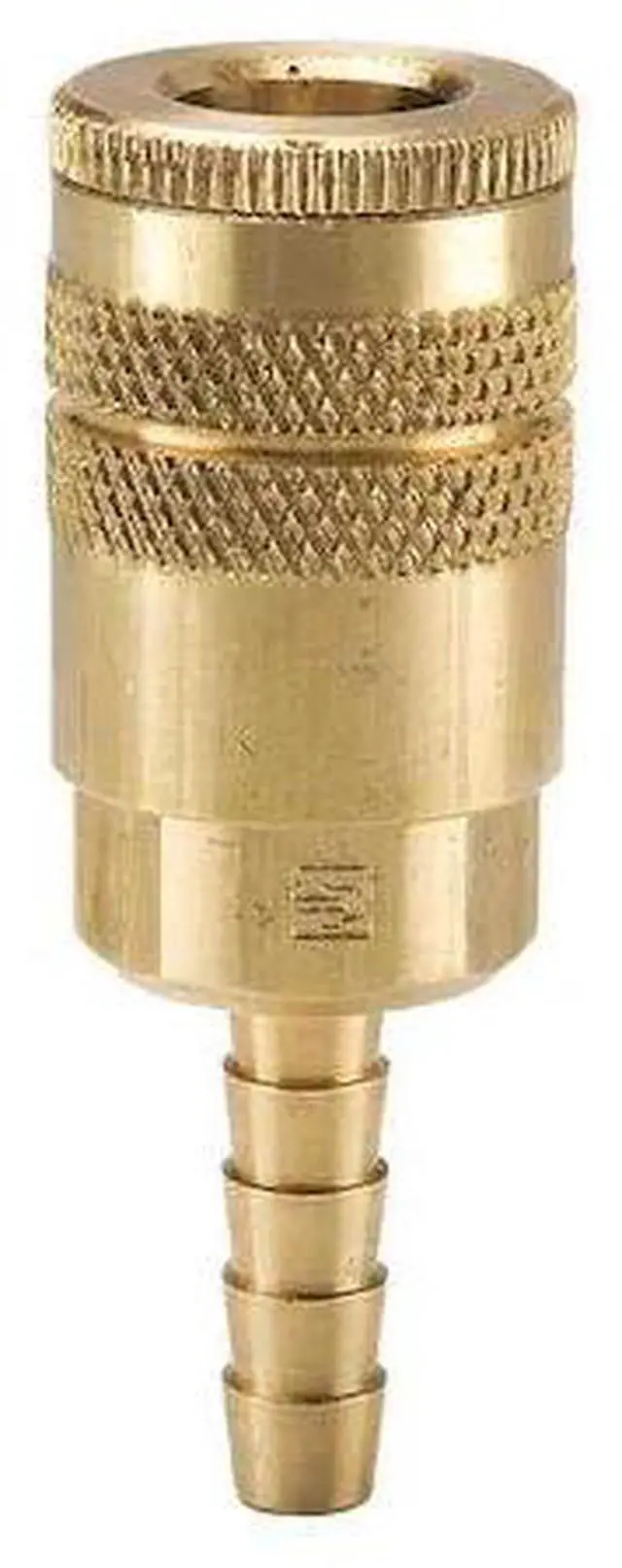

PARKER B20-3B Quick Connect,Socket,1/4" Body,1/4" Barb

The PARKER - B20-3B is a hose coupling with a sleeve locking mechanism for supports connection and disconnection using the sleeve locking mechanism (no separate hand tool required). It includes a valve with a tubular valve mechanism for flow control during hose changes. Rated for use with 1/4 in hose I.D. and rated to mate with 1/4 in industrial interchange fittings. Is rated for operation within the specified hose I.D. and fitting interchange size ranges, providing a connection intended to mate with specified hose I.D. and industrial interchange fittings (performance and leak tightness are dependent on installation and system conditions). The coupling is male gender with a hose barb connection, intended for pneumatic line assembly and maintenance.

Key Features:

• - Material: Brass
• - Application: Pneumatic
• - Connection Type: Hose Barb
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 1/4 in
• - Barb Size: 1/4 in
• - For Hose I.D.: 1/4 in
• - Coupling Component: Socket
• - Coupling Size: 1/4 in
• - Valve Included: Yes; Type: Tubular
• - Interchange Type: Industrial
• - Maximum Flow Rate: 707.92 lpm (under test conditions per manufacturer specifications)
• - Maximum Working Pressure: 300 psi at 70°F (per manufacturer specifications)
• - Seal Material: Nitrile
• - Rated Temperature Range: -40°F to 250°F (per manufacturer specifications)
• - Overall Length: 2.50 in
• - Max. Outside Diameter: 15/16 in
