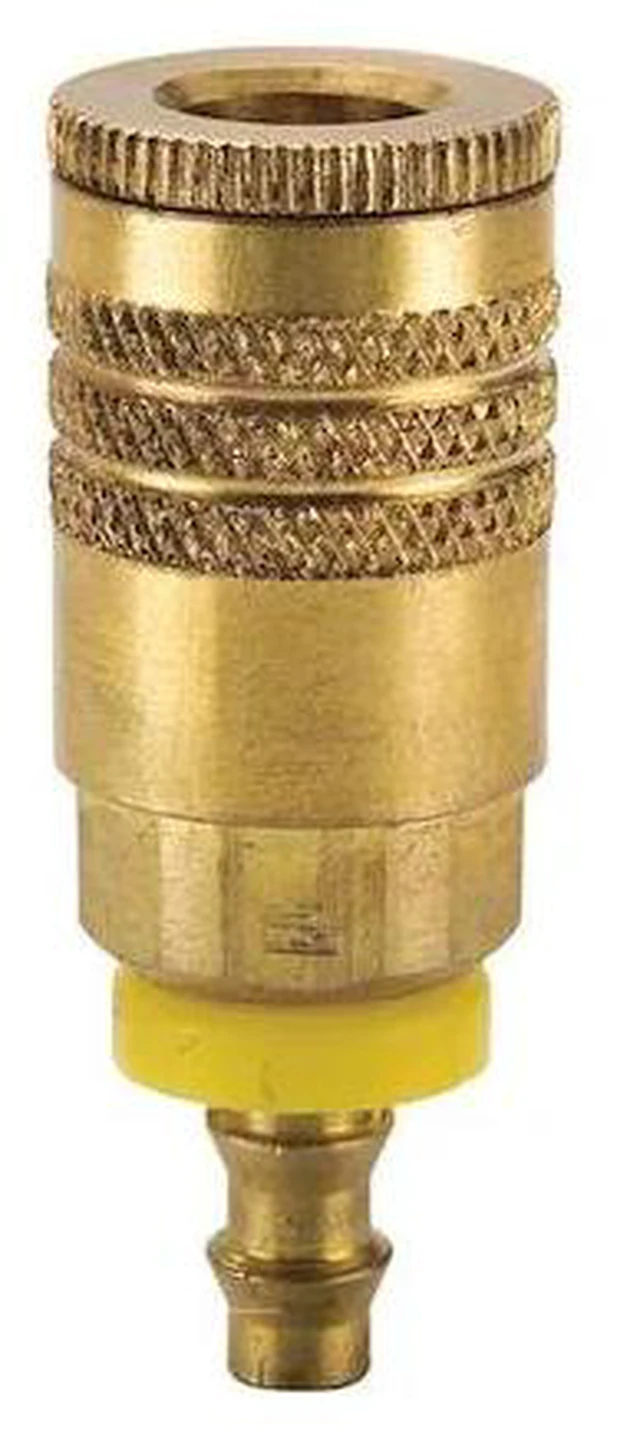

PARKER B50-3BP Quick Connect,Socket,1/4" Body,1/4" Barb

The PARKER - B50-3BP is a push-to-connect hose coupling for pneumatic applications, allowing rapid and tool-free connection and disconnection of hoses or equipment. It features a push-to-connect locking mechanism and includes a tubular valve that controls air flow. Made of brass, this coupling is compatible with hoses sized 1/4 in inner diameter and 1/4 in barb size (per specified dimensions). It provides a connection intended to streamline hose changes and reduce downtime in relevant fluid or air line systems.

Key Features:

• - Application: Pneumatic
• - Connection Type: Hose Barb with Male hose fitting gender
• - Barb Size: 1/4 in; Hose Fitting Size: 1/4 in; For Hose I.D.: 1/4 in
• - Coupling Component: Socket
• - Coupling Locking Type: Push-to-Connect
• - Interchange Type: ARO
• - Includes Valve: Yes; Valve Type: Tubular
• - Material: Brass
• - Max. flow rate: 707.92 lpm (when used within the specified pressure/temperature conditions)
• - Rated maximum working pressure: 300 psi at 70°F (do not exceed specified ratings)
• - Overall Length: 2.31 in (2 5/16 in)
• - Max. Outside Diameter: 0.875 in (7/8 in)
• - Seal Material: Nitrile
• - Rated temperature range: -40°F to 250°F (for use within these temperatures)
