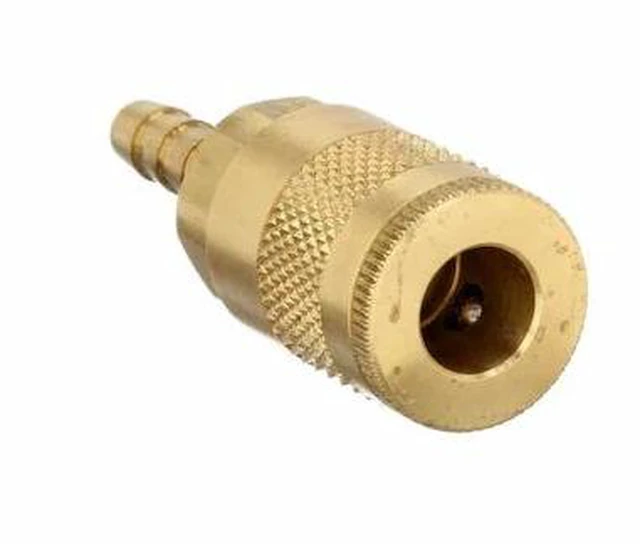

PARKER B10-3B Quick Connect,Socket,1/4" Body,1/4" Barb

The PARKER - B10-3B is a hose coupling intended for pneumatic air systems. It provides push/pull connection using the sleeve locking mechanism (no tools required). This brass coupling features a male hose barb connection compatible with 1/4 in inner diameter hoses. It is used to control air flow via the integral tubular valve during hose changes. The coupling belongs to the Tru-Flate-Automotive interchange type and is rated maximum working pressure: 300 psi at 70°F.

Key Features:

• - Body and coupling size: 1/4 in
• - Hose barb connection type with a 1/4 in barb size
• - Male fitting gender
• - Rated flow rate: 707.92 liters per minute
• - Overall length of 2.5 in
• - Maximum outside diameter of 15/16 in
• - Seal made of nitrile material
• - Operating temperature range from -40°F to 250°F
• - Includes a tubular valve type
• - Coupling component classified as socket
• - Coupling locking mechanism uses a sleeve
