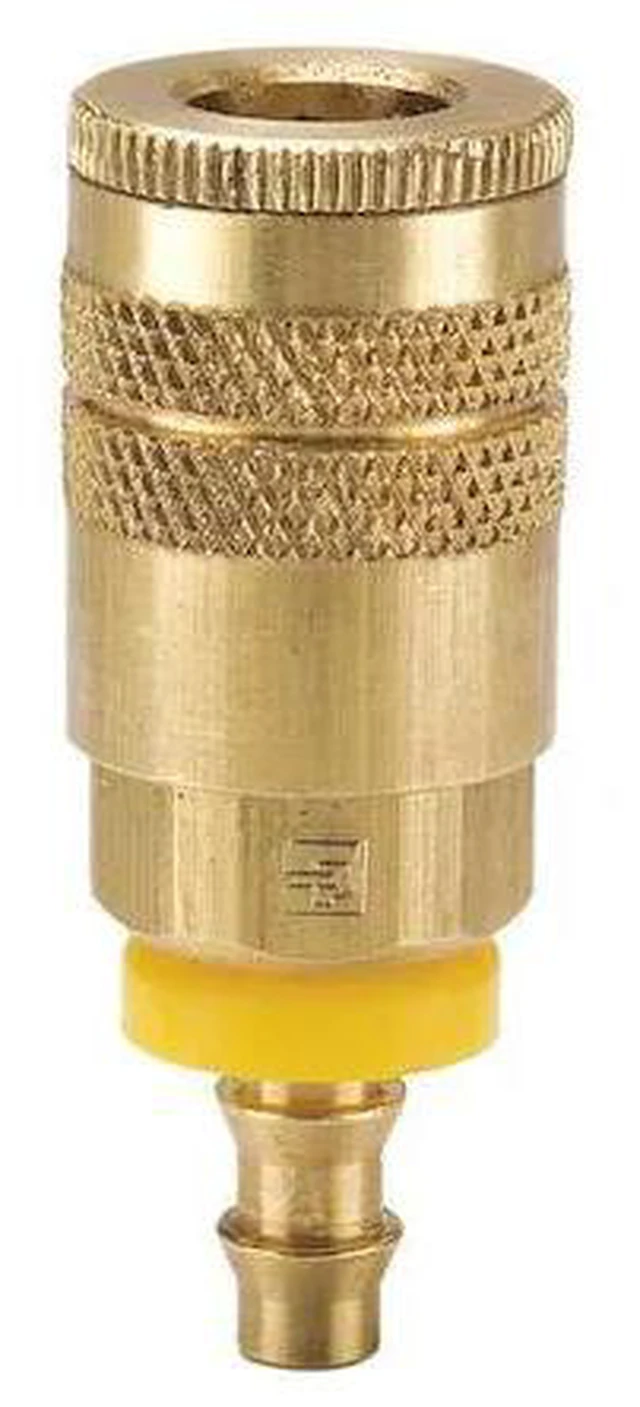

PARKER B20-5BP Quick Connect,Socket,1/4" Body,3/8" Barb

Hose coupling model PARKER - B20-5BP for pneumatic air line connections. It enables hose coupling connection/disconnection using the sleeve locking mechanism (tool-free per design). Made from brass, it includes an integrated tubular valve to control flow and provides a sealed connection for compressed air lines. The fitting is compatible with hoses that have a 3/8 in inner diameter and features a hose barb connection with male gender.

Key Features:

• - Material: Brass construction for durability.
• - Connection Type: Hose barb with male fitting.
• - Barb Size: 3/8 in, matching hose inner diameter.
• - Coupling Size: compatible with 1/4 in industrial quick-connect systems.
• - Coupling Locking Type: Sleeve mechanism.
• - Includes Valve: Yes, includes an integrated tubular valve to control flow.
• - Maximum rated flow rate: 707.92 L/min.
• - Rated maximum working pressure: 300 psi at 70°F.
• - Rated operating temperature range: -40°F to 250°F.
• - Overall Length: 2.5 in.
• - Seal Material: Nitrile for sealing performance.
• - Interchange Type: Industrial standard for compatibility.
