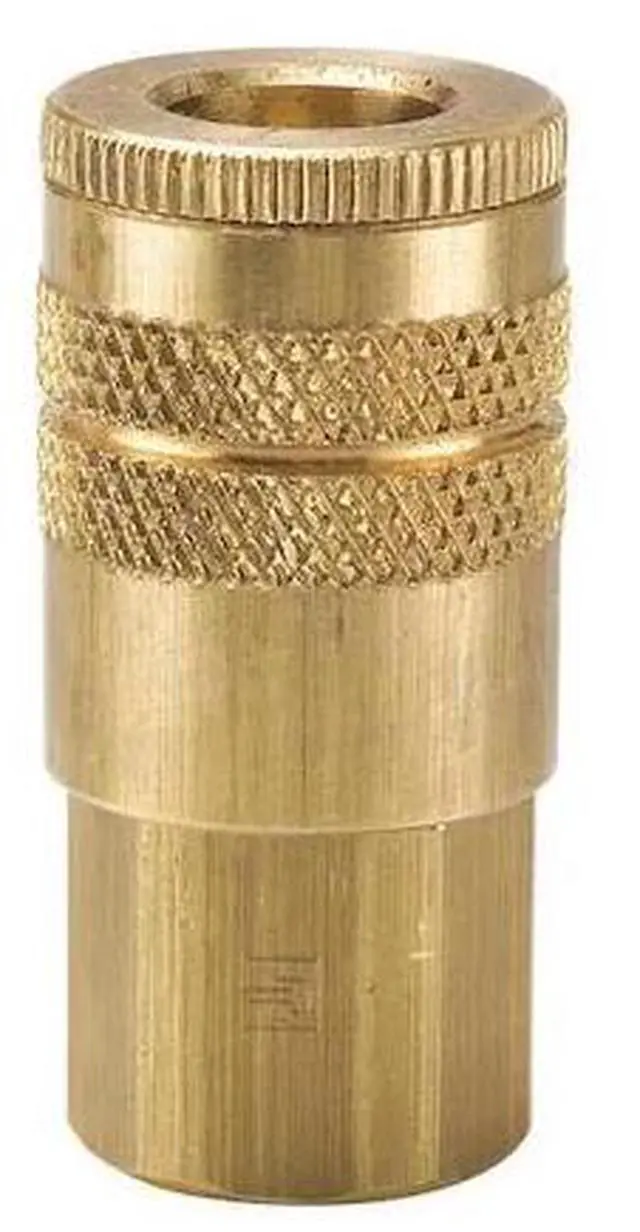

PARKER B23 Quick Connect Hose Coupling, 1/4 in Body Size, 1/4 in Hose Fitting

The PARKER - B23 is a brass quick connect hose coupling intended for connection in pneumatic systems. It features a 1/4 inch NPT female hose fitting and a 1/4 inch coupling size, meets the stated industrial interchange specifications (as applicable). This socket-type coupling includes a tubular valve and uses a sleeve locking mechanism to enable connection and disconnection without tools. The coupling is intended for use with compressed air lines and rated flow rate: 707.92 LPM (maximum) at rated maximum working pressure: 300 psi at 70°F, rated operating temperature range: -40°F to 250°F.

Key Features:

• - Material: Brass
• - Application: Pneumatic
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Hose Fitting Gender: Female
• - Connection Type: 1/4" NPT (female)
• - Includes Valve: Yes; Valve Type: Tubular
• - Seal Material: Nitrile
• - Max. Flow Rate: 707.92 lpm
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Outside Diameter: 15/16 in
• - Overall Length: 1.81 in
