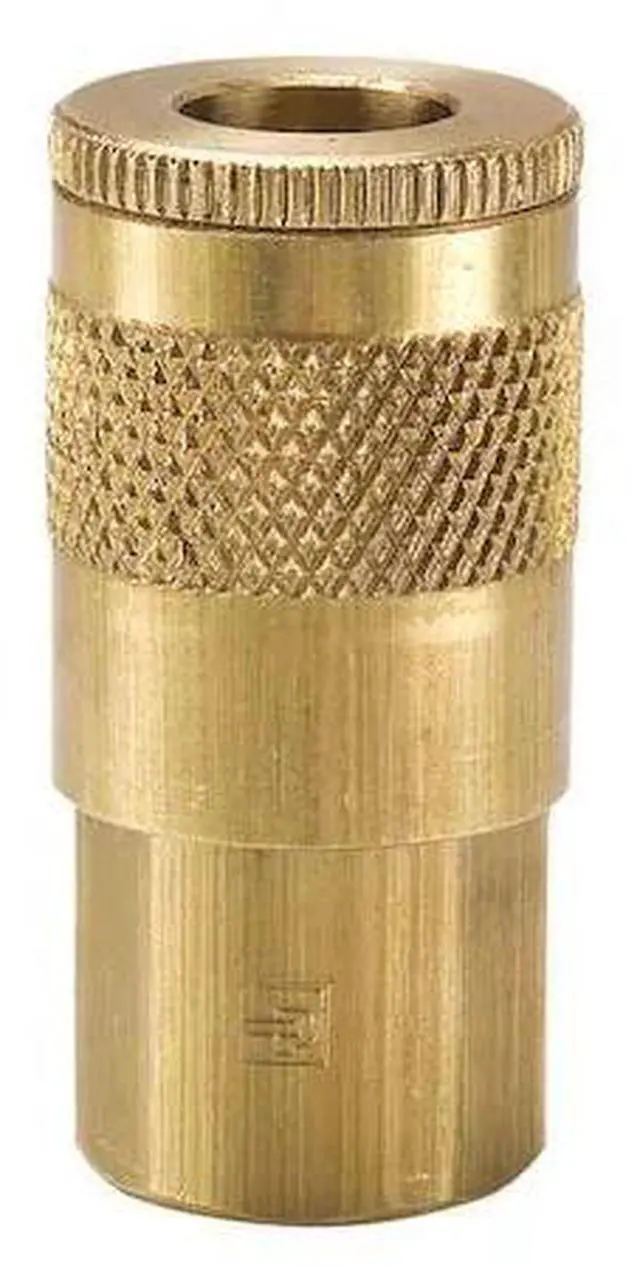

PARKER B17 Coupler Body,Brass,1/2 In. Pipe,110 cfm

The PARKER - B17 is a quick connect hose coupling for pneumatic applications. Constructed from brass with a nitrile seal, it supports quick connection and disconnection via the sleeve locking mechanism. It is rated for use up to 300 psi at 70°F and includes an integrated tubular valve for flow control. This coupling features a 1/2 inch NPT female threaded connection and 1/2 inch hose fitting size, with a maximum flow rate of 3,114.85 liters per minute. It is rated for operation within a temperature range of -40°F to 250°F.

Key Features:

• - Intended for pneumatic use.
• - Coupling component type: Socket with sleeve locking mechanism.
• - Connection and hose fitting size: 1/2 inch.
• - Thread size: 1/2"-14 NPT female.
• - Made of brass with nitrile sealing material.
• - Includes an integrated tubular valve for flow control.
• - Maximum working pressure: 300 psi at 70°F.
• - Maximum flow rate: 3,114.85 liters per minute.
• - Overall length: 2.94 inches.
• - Maximum outside diameter: 1 3/16 inches.
• - Temperature range: -40°F to 250°F.
• - Interchange type: Industrial.
• - Does not have a barbed hose tail.
