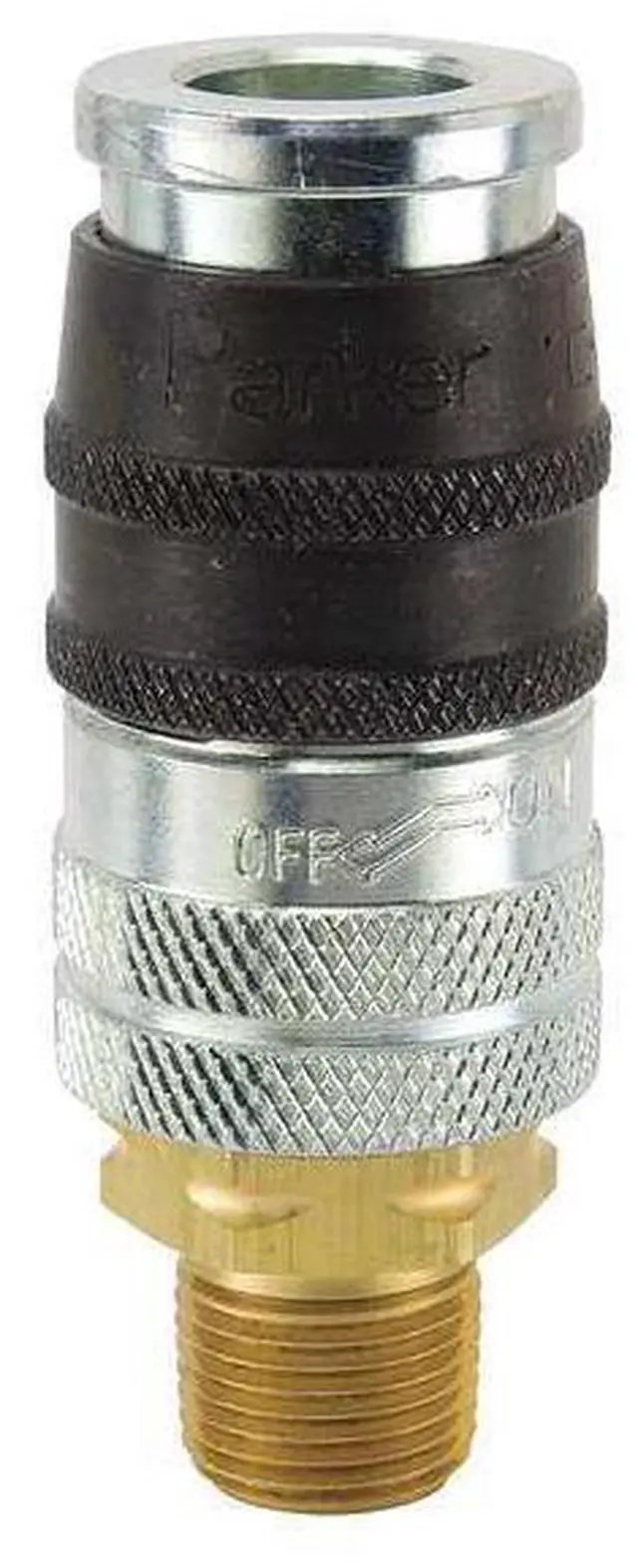

PARKER EZ-251-4MP Quick Connect,Socket,1/4" Body,1/4"-18

The PARKER - EZ-251-4MP is a hose coupling for push-to-connect pneumatic applications. It enables connection and disconnection using a push-to-connect locking mechanism. The coupling provides a seal for compressed air lines (Nitrile seal material) and has an integrated tubular valve for regulating airflow upon connection (tubular type). Constructed of steel with a trivalent chrome finish, it is compatible with the industrial interchange standard and has an operating temperature range: -40°F to 250°F.

Key Features:

• - Application: Pneumatic
• - Coupling component: Socket
• - Coupling locking type: Push-to-Connect
• - Hose fitting gender: Male
• - Hose fitting size: 1/4 in
• - Body size (air coupling): 1/4 in
• - Coupling size: 1/4 in
• - Connection type: NPT thread
• - Thread size: 1/4"-18
• - Material: Steel with trivalent chrome finish
• - Seal material: Nitrile
• - Includes valve: Yes, tubular type
• - Max. flow rate: 707.92 liters per minute
• - Max. working pressure: 300 psi at 70°F
• - Max. outside diameter: 1 in
• - Overall length: 2.88 in
• - Interchange type: Industrial
• - Operating temperature range: -40°F to 250°F
• - Barbed end: No
